Installing components on the actuator, Installing components on the actuator 28 – MTS Series 247 Actuators User Manual
Page 28
Series 247 Actuators
28
Installing Components on the Actuator
Installation
Installing Components on the Actuator
Several optional components can be mounted to the actuator piston rod or the
rear end cap. The front end cap has four or eight threaded mounting holes. The
rear end cap has four threaded mounting holes. See
on page 21 for dimensions, mounting hole patterns, and thread
sizes. The following figure shows some of the types of components available:

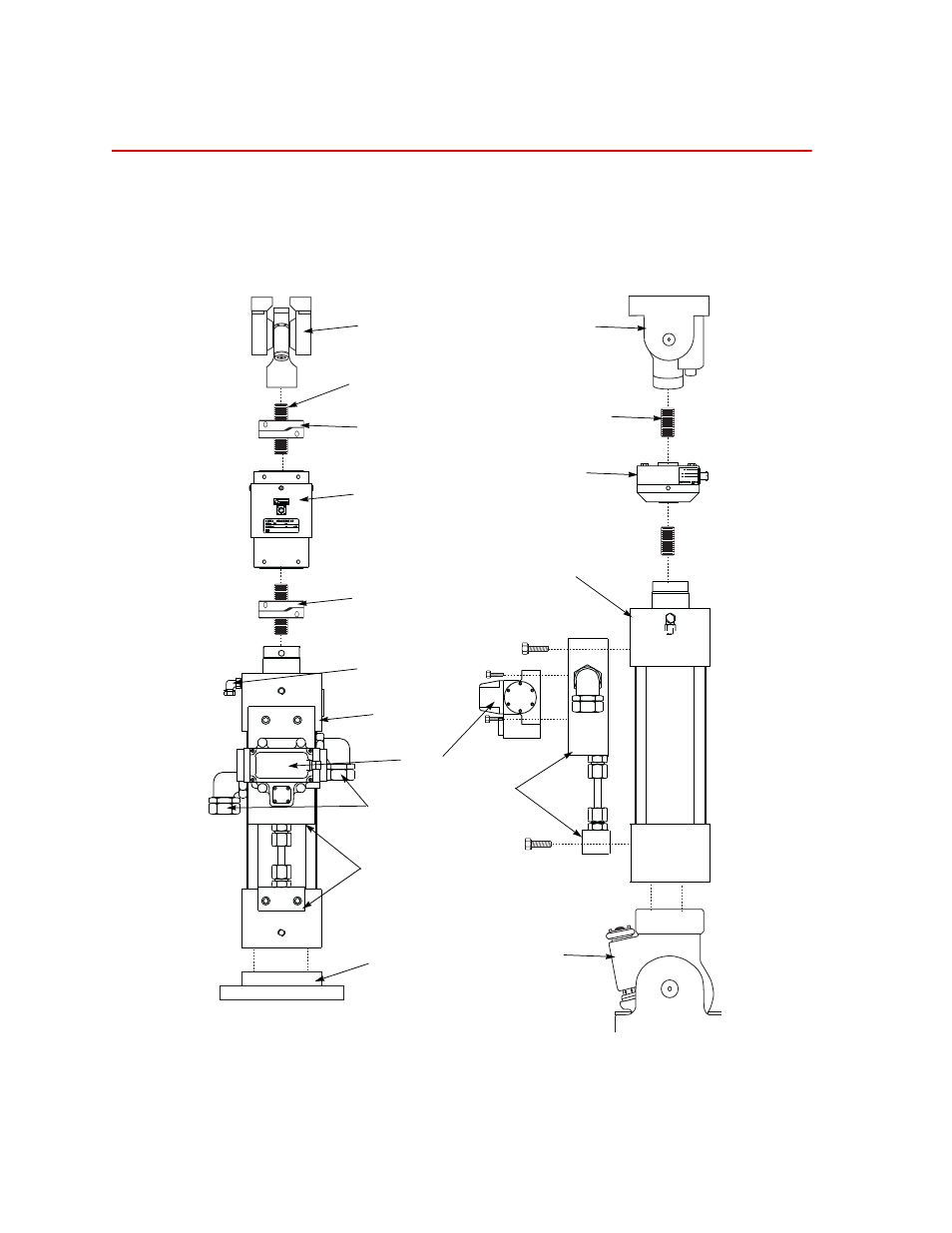

Typical Installation Components
Swivel
Spiral
Washers
Force
Transducer
Swivel
Rod End
Connector
stud
Force
Transducer
Connector
Stud
Actuator
Assembly
Spiral
Washers
Drain
Fitting
Actuator
Assembly
Servovalve
Hydraulic
Ports
Manifold
Assembly
Pedestal
Base
Swivel
Base
Manifold
Assembly
