Series 247 Actuators
Introduction
13
Introduction

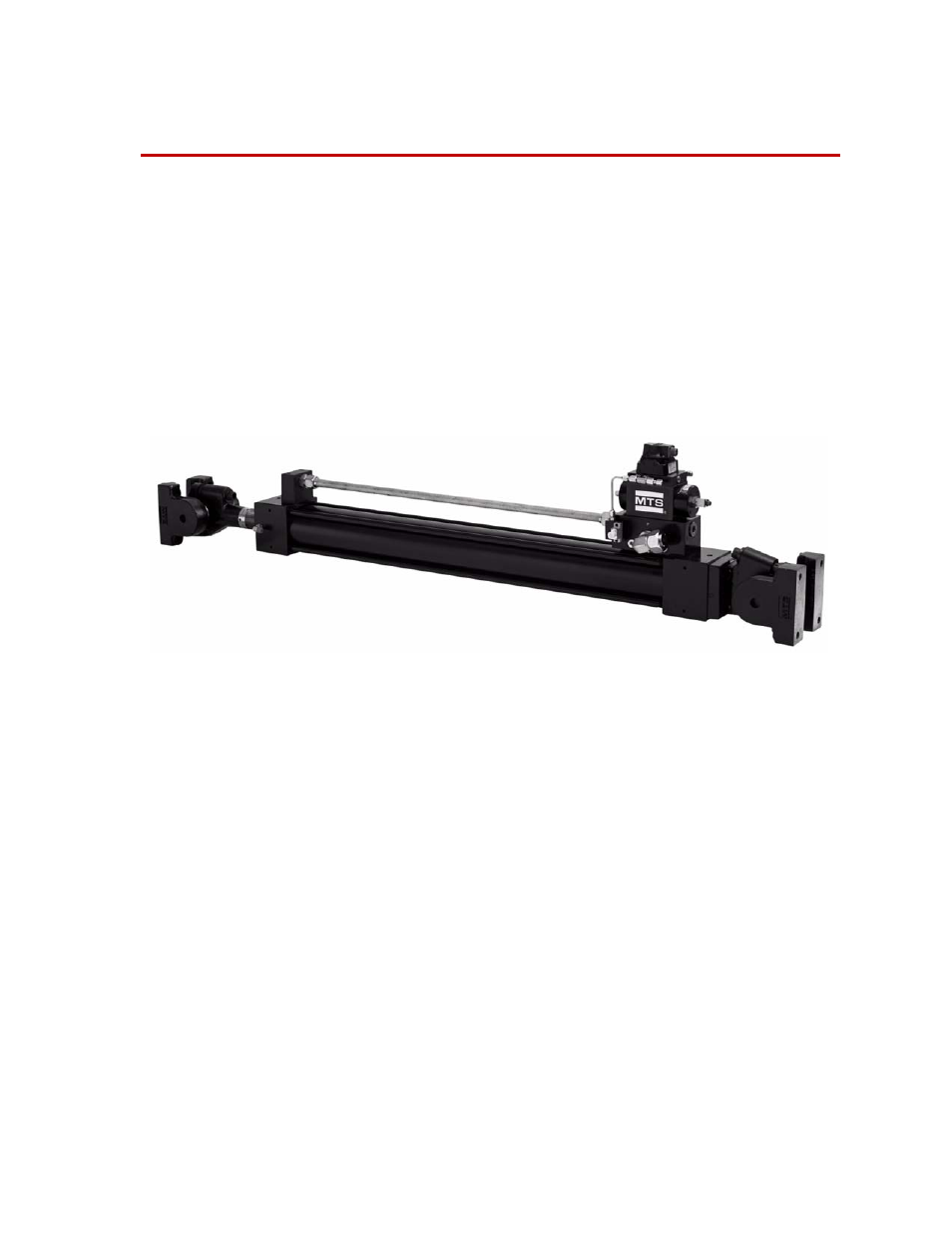

The Series 247 Hydraulic Actuators are double-acting, single-ended, heavy-duty
actuators that operate under precision servovalve control in MTS closed-loop
servohydraulic systems. Typical applications for the actuators include structural
and static testing where a long stroke is required. Series 247 Hydraulic Actuators
are routinely used in systems requiring precision force generation and accurate
control of piston rod displacement.
Contents
Series 247 Actuator
What you need to
know
This manual assumes that you know how to use your system controller. See the
appropriate manual for information about performing any controller-related step
in this manual’s procedures. You are expected to know how to do the following:
•
Turn hydraulic pressure on and off
•
Select a control mode
•
Manually adjust the actuator position
•
Instal a specimen
•
Define a simple test
•
Run a test
