30

(G)

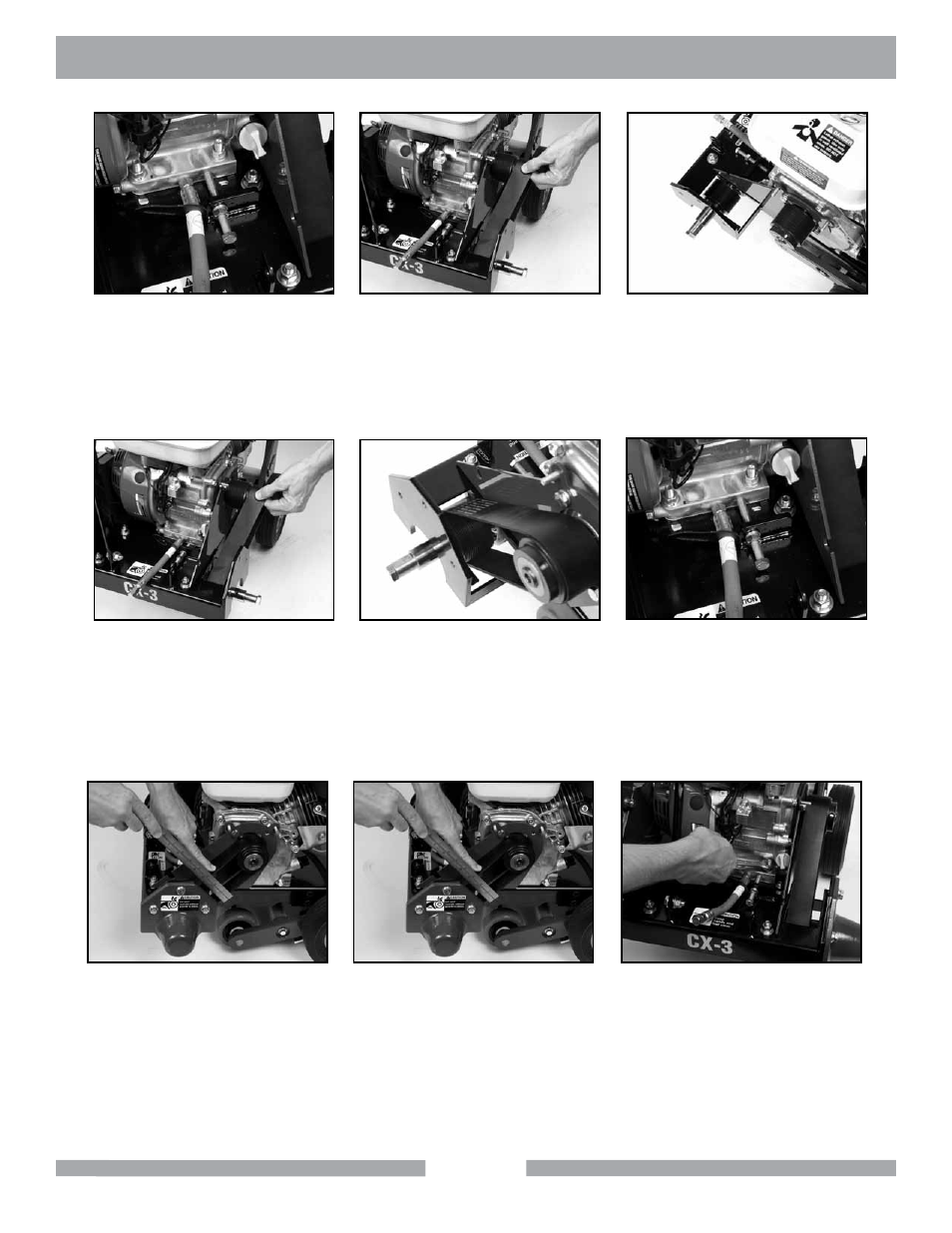

Loosen the Motor Tension

Arm. Push the Motor forward to

loosen the belt.

(H)

Remove the old belt from the

Engine and Blade Shaft Pulleys.

(I)

Clean and verify the alignment

of the Engine and Blade Shaft

Pulleys.

(K)

Verify the belt is seated in all

grooves of the Engine and Cut-

ting Drum Pulleys.

(M)

Check belt for proper tension

(Proper tension is approxi-

mately 1/8-inch deflection of the

belt).

(N)

Repeat Steps L and M until

Proper Tension is achieved.

(O)

Tighten the Engine Mounting Bolts.

(L)

Tighten the Motor Tension Arm.

(J)

Obtain and install a new

belt onto the Engine Blade

Shaft Pulleys

CX-3

®

MAINTENANCE
