28

(E)

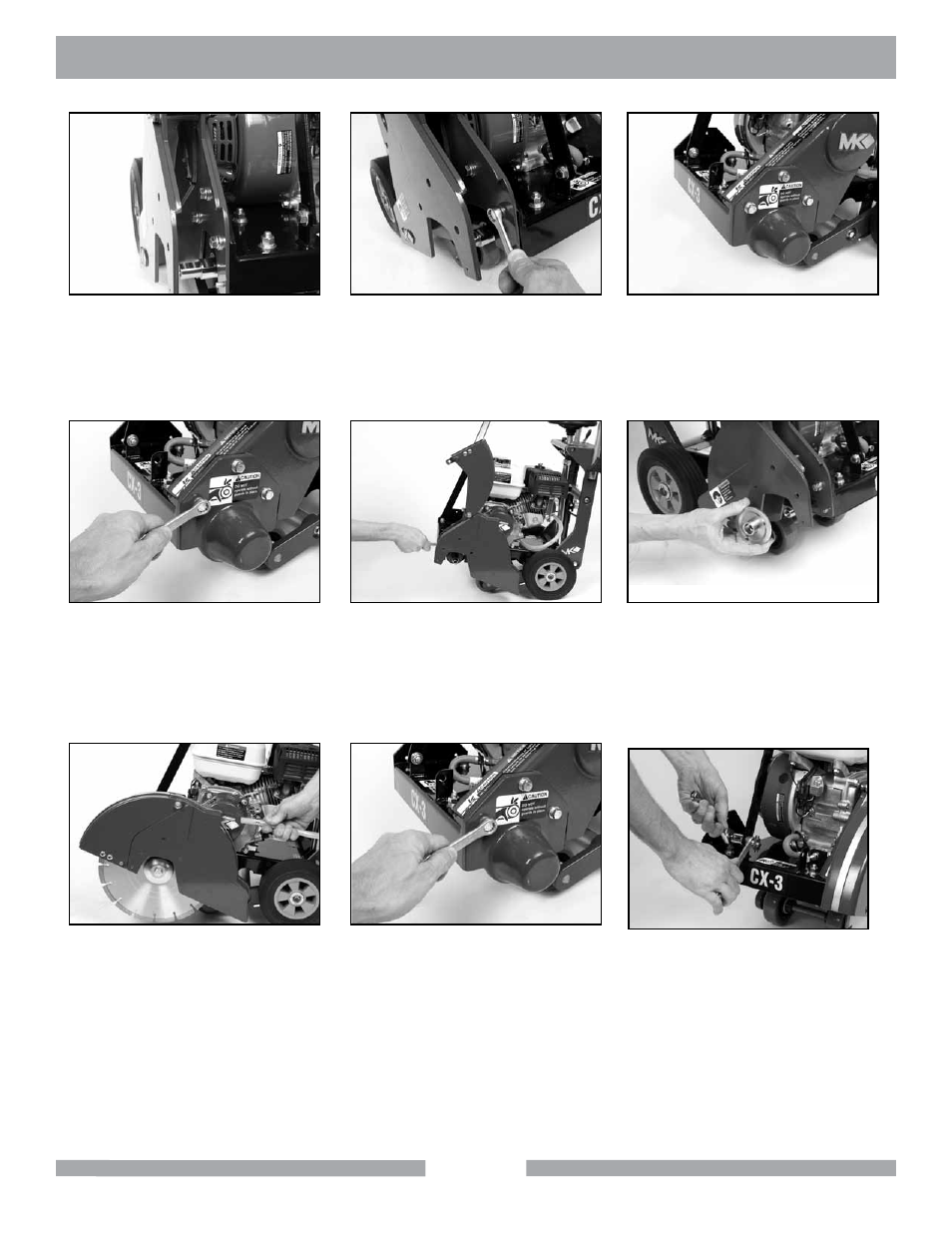

Remove the Blade Guard

Retaining Bolts and remove the

Blade Guard.

(D)

Locate the three Blade Guard

Retaining Bolts.

(F)

Locate the Blade Shaft Cover

Retaining Bolts.

(G)

Remove the Blade Shaft Cover

Retaining Bolts and the Blade

Shaft Cover.

(H)

Install the Blade Guard on the

opposite side.

(I)

Install the Inner Blade Flange,

Blade, Outer Flange and Blade

Retaining Bolt.

(J)

Install the Cooling Transfer Hose

from the Blade Guard.

(K)

Install the Blade Shaft Cover.

(L)

Remove the Pointer.

CX-3

®

MAINTENANCE
