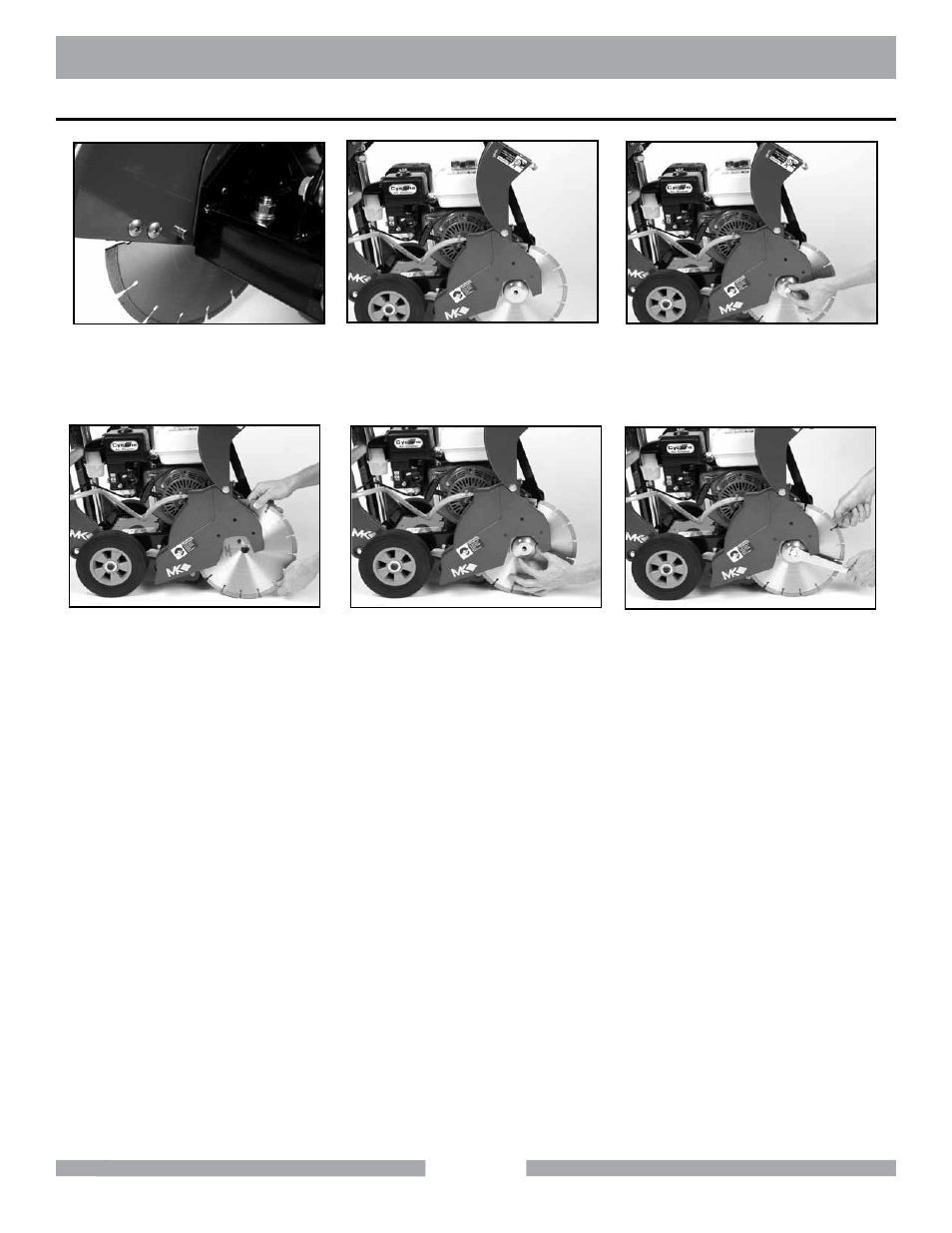

Tighten Blade Retaining Bolt

while holding the Blade Shaft

steady.

(A)

Locate Blade Guard lock.

(B)

Push Lock Button. Open the

Blade Guard Cover.

Diamond Blade Removal

(E)

Install the new Blade, Retaining

Bolt and Outer Flange.

(C)

Remove the Blade Retaining Bolt

and the Outer Flange.

(D)

Remove blade.

CX-3

®

MAINTENANCE
