MK Diamond CX-3 - Manual (Page 15)

15
CX-3
®
ASSEMBLY

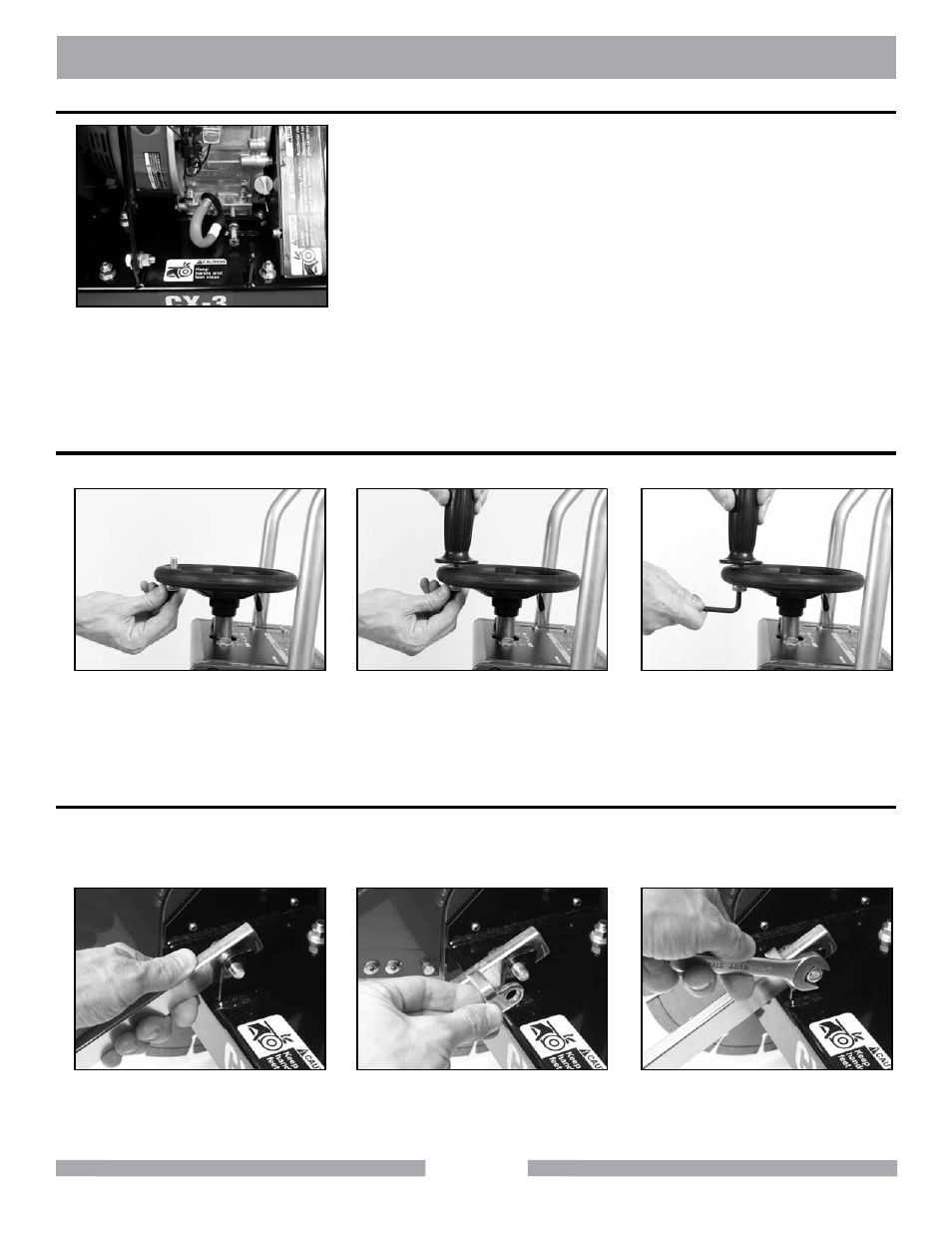

Filling Oil Reservoir
Crank Wheel Handle Installation
Pointer Installation
(A)
Verify the Oil Drain Cap is
installed onto the Oil Drain Line
and is tight. Refer to Engine
Manual for details.
(A)
Insert Crank Wheel Handle
mounting bolt up through hole in
crank wheel.
(A)
Insert bolt on Pointer into mount-
ing flange next to Blade Guard.
(B)
Thread Crank Wheel Handle
onto bolt.
(B)
Install limiting bracket onto bolt
as shown.
(C)
Hold crank wheel handle and
tighten bolt with Allen wrench.
(C)
Thread locking nut on to bolt
and tighten.
Limiting bracket properly installed will prevent pointer from contacting engine when
in the up position
NOTE:
The engine is shipped with no oil in the crankcase.
Refer to Engine Manual for details on type and
amount of oil required.
NOTE:
