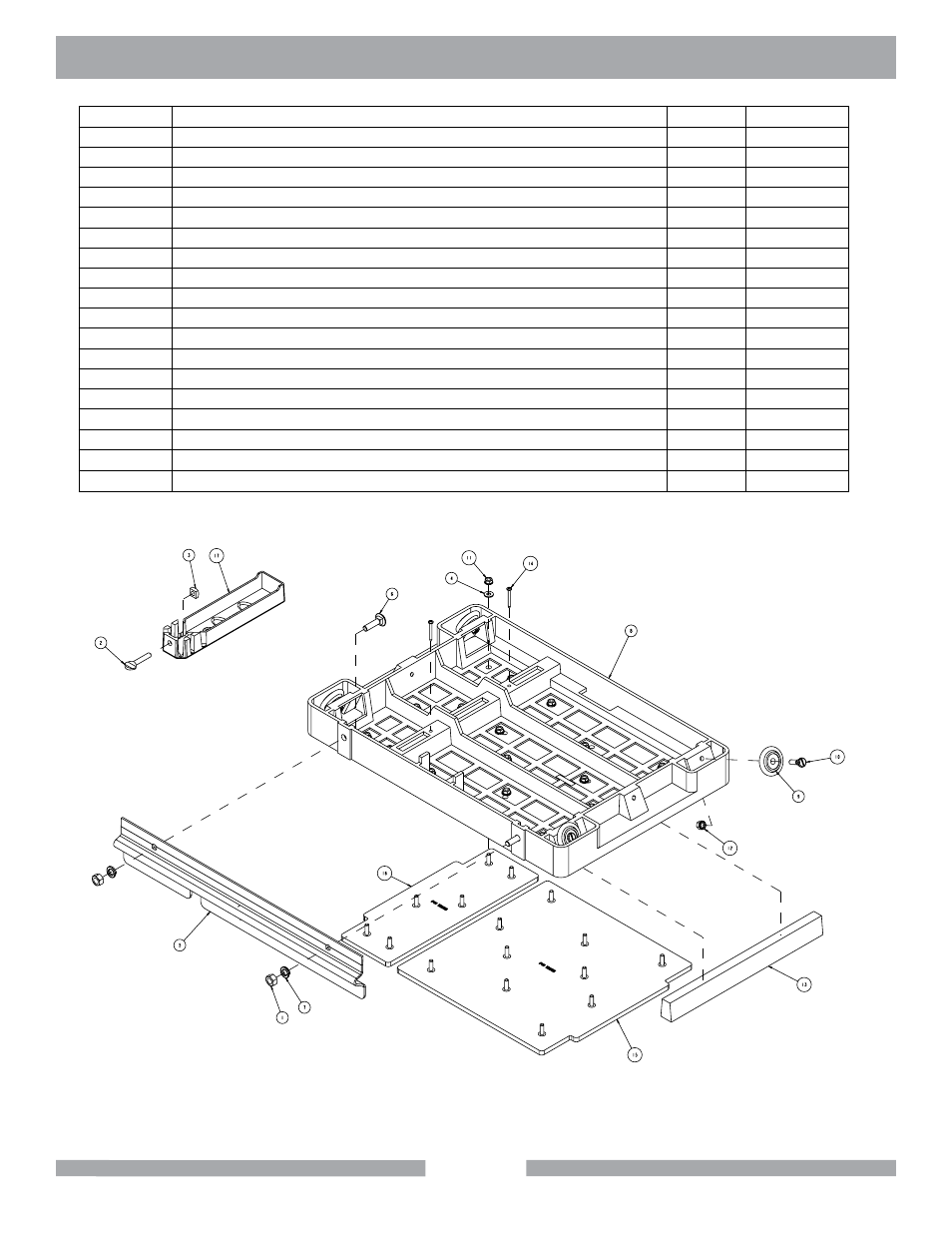

MK-5000G eXPLODeD VieW
TABLE
ASSEMBLY
item
Description
Qty
Part #
Table assembly
-
152124
1
Nut, Hex 7/16 - 14
1
150922
2
Screw, thumb 5/16 - 18 x 1 - 1/2
1
151155
3
Nut, Square 5/16 - 18
1
151156
4
Washer, 1/4 Sae Flat
16
151915
5
Rule, Front Stop
1
152126
6
Bolt, Carr. 7/16 - 14 x 1 - 1/4
2
152425
7
Washer, Lock, Split 7/16
2
152424
8
Casing, 5000, Table - Comp
1
152455
9
Wheel, Roller MK-5000, MK1080
4
152493
10
Stud, Roller Wheel
4
152494
11
Nut, Hex W/Wshr, 1/4 - 20
16
153941
12
Nut, Hex, TW, 5/16 - 18
4
153942
13
Wood Strip, Table Insert
1
157748
14
Screw, #8 x 1 - 1/2 Flat HD Phil
2
158157
15
Mat, MK-5000 Table-Lg
1
160165
16
Mat, MK-5000 Table - SM
1
160166
17
Casing, Squaring Arm-Comp
1
231276
