Mk-5000g assembly – MK Diamond MK-5000 Gas User Manual
Page 14

14
MK-5000G asseMBLY

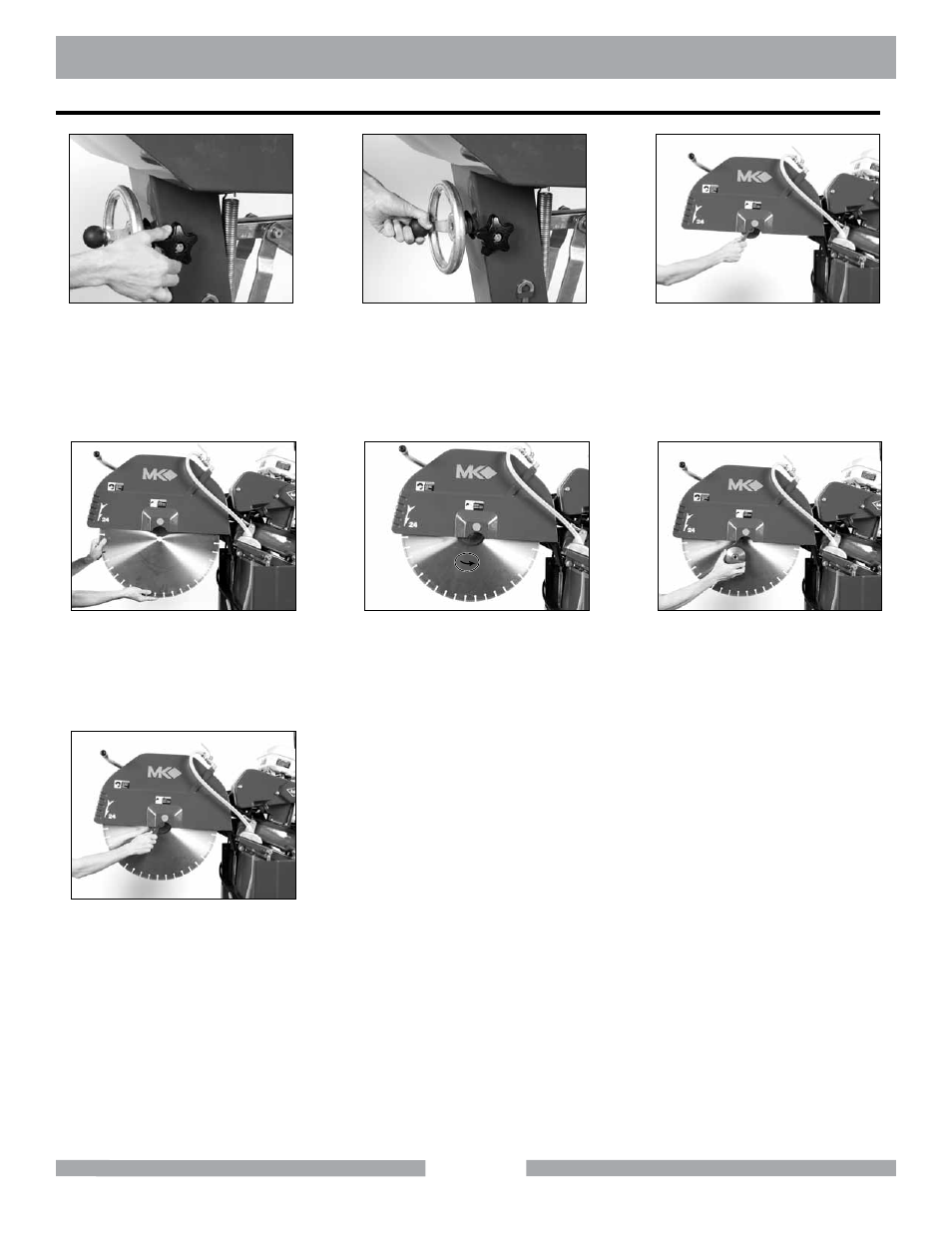

Diamond Blade installation
(A)
Unlock Cutting Head.
(B)
Raise the Cutting Head by
turning the Depth Control Wheel
clockwise.
(C)
Remove the Retaining Screw
and Outer Flange with the blade
wrench. Turn counter-clockwise
to loosen.
(D)
Install the Diamond Blade onto
the Blade Shaft.
(E)
Verify the Blade is seated on
the Blade Shaft and direction of
rotation is correct.
(F)
Install Retaining Screw and
Outer Flange.
(G)
Rotate Blade Wrench clockwise
to tighten.
