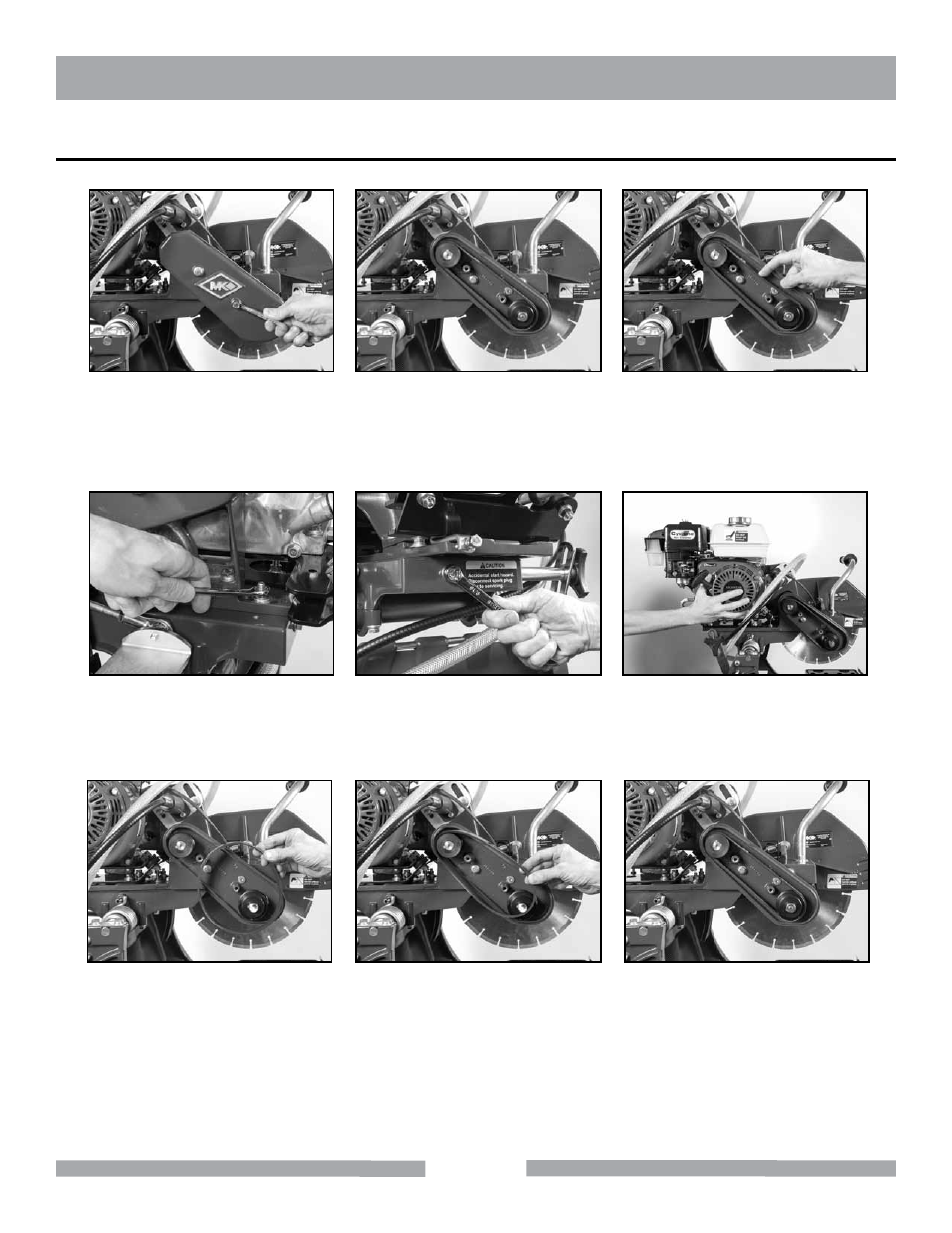

MK-2000 GAS SAW INSPECTION
ENGINE SIDE MICRO-V BELT
(A)
Remove the Belt Guard Retain-
ing Bolts.
(B)
Inspect the Micro-V Belt for cracks,
fraying, separation and wear. Go to
Step D if replacement required.
(C)
Check Micro-V Belt proper tension
if tension correct, go to Step O
(proper tension 1/8-inch).
(D)
Loosen engine mounting plate.
If re-tensioning, go to Step J. 5
bolts, 4 under motor, 1 to left of
power switch.
(E)
Loosen Engine Adjustment Strap
Lock-Nut then loosen the Engine
Adjustment Strap.
(F)
Push the Engine Mounting Plate
toward the front of the unit to
loosen the Micro-V Belt.
(G)
Remove the Micro-V Belt.
(H)
Install the new Micro-V Belt (MK Dia-
mond Part No. 156294).
(I)
Verify the Micro-V Belt is seated
in the grooves of both pulleys.
