39

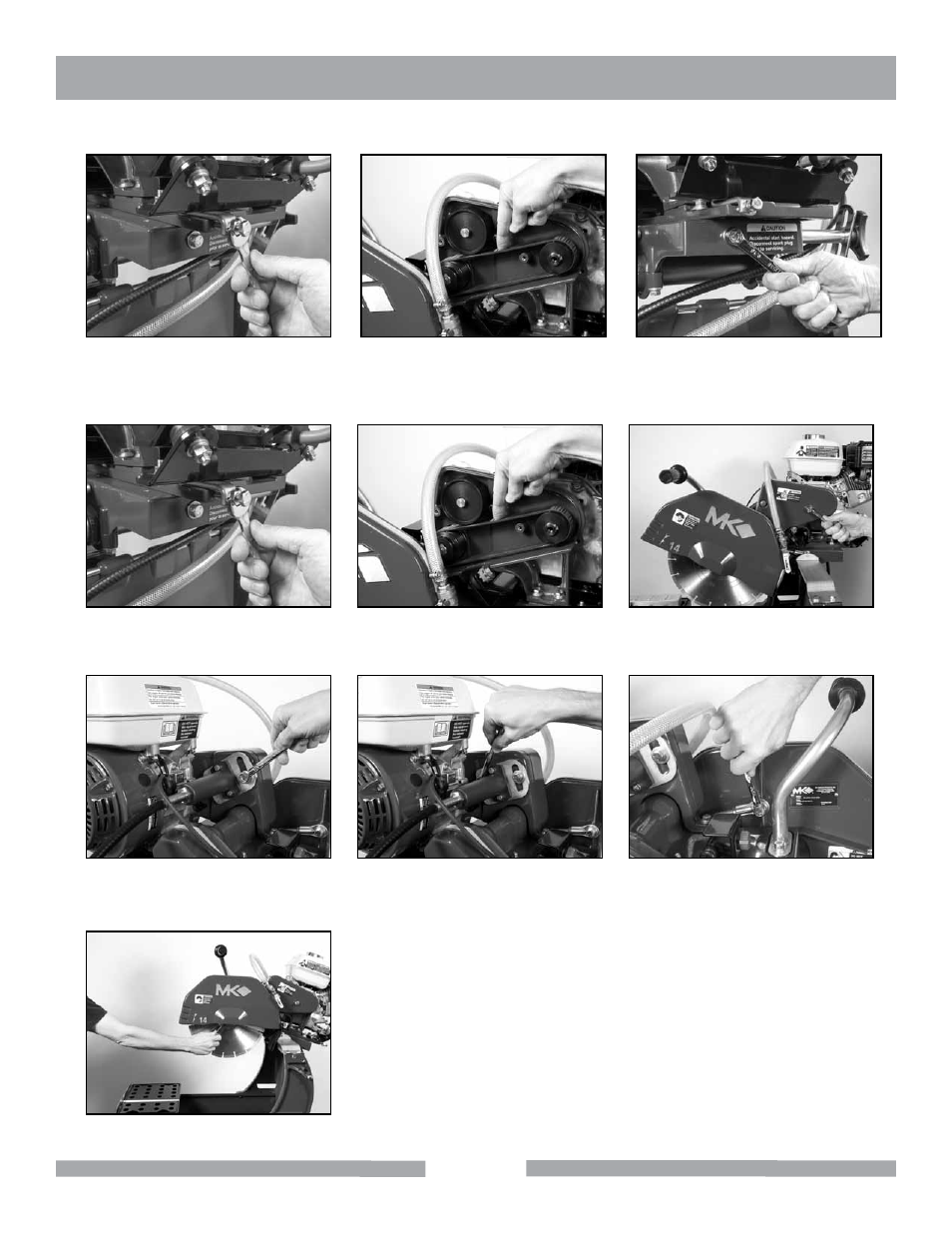

(P)
Verify the Engine Adjustment
Strap Lock-Nut is loose then
tighten the Adjustment Strap.
(Q)
Check Micro-V Belt tension
(proper tension 1/8-inch).
MK-2000 GAS SAW INSPECTION
(R)
Continue adjusting Micro-V Belt un-
til tension is correct then tighten the
Engine Adjustment Strap Lock-Nut.
(t)
Check Micro-V Belt tension
(proper tension 1/8-inch).
(S)
Tighten the Strap Lock-Nut.
(U)
Install the Belt Guard.
(V)
Locate Water Pump Pivot Plate
loosen retaining bolts.
(W)
Move Water Pump Pivot Plate
down and retighten retaining
bolts.
(X)
Install the Blade Guard Adjust-
ment Bar.
(Y)
Install the Diamond Blade.
