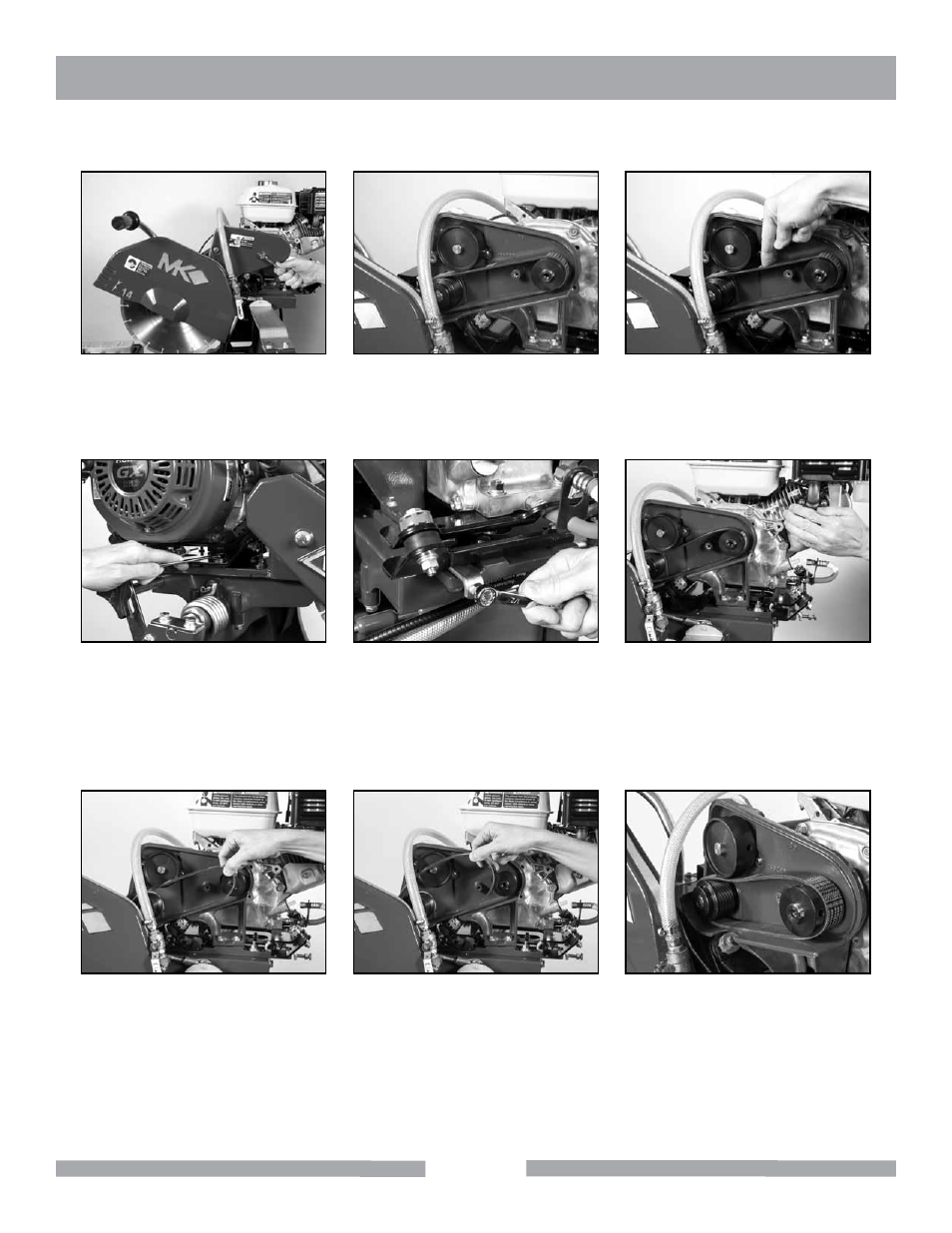

MK-2000 GAS SAW INSPECTION
Step G may require the pump discharge line to be repositioned. NOTE:
(G)
Remove the Belt Guard Retain-
ing Bolts.
(H)
Inspect the Micro-V Bolt for cracks,
fraying, separation and tears. Go to
step J if replacement require.
(I)
Check Belt for proper tension.
If tension correct, go to Step U
(proper tension 1/8-inch).
(J)
Loosen engine mounting plate.
If re-tensioning, go to step S.
(K)
Loosen Ending Adjustment Strap
Lock-nut then loosen the Engine
Adjustment Strap.
(L)
Push the Engine Mounting Plate
toward the front of the unit to
loosen the Micro-V Belt.
(M)
Remove the Micro-V Belt.
(N)
Install the new Micro-V Belt (MK Dia-
mond Part No. 156294).
(O)
Verify the Micro-V Belt is seated
in the grooves of both pulleys.
DO NOt use a screwdriver when installing new belts.
