TRACK RAIL SAW

PARTS LIST

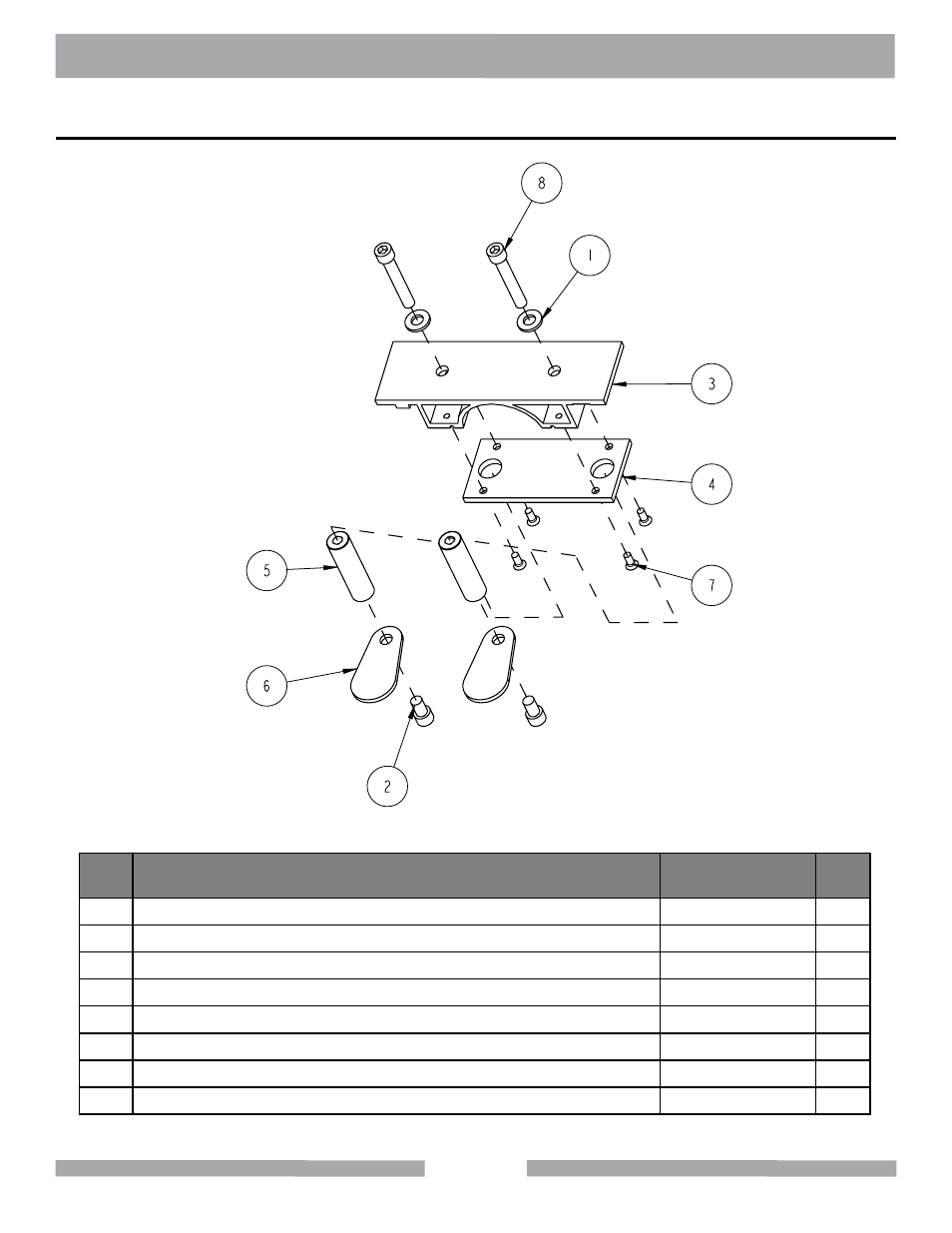

Rail Saw Material Clamp

ITEM

NO.

DESCRIPTION

PART OR

IDENTIFYING NO.

QTY.

REQ.

1

WASHER, 5/16 SAE FLAT

151754

2

2

SCREW, 5/16-18X1/2 SOCKET HEAD CAP

156139

2

3

BASE, MATERIAL CLAMP

165114

1

4

PLATE, MATERIAL CLAMP SUPPORT

165115

1

5

STAND-OFF, THREADED

165116

2

6

FOOT, MATERAL CLAMP

165117

2

7

SCREW, 10-24 X 3/4 FLAT HEAD PHILLIPS MACHINE

165121

4

8

SCREW, 5/16-18 X 2 SOCKET CAP

165243

2
