13

TRACK RAIL SAW

SET-UP

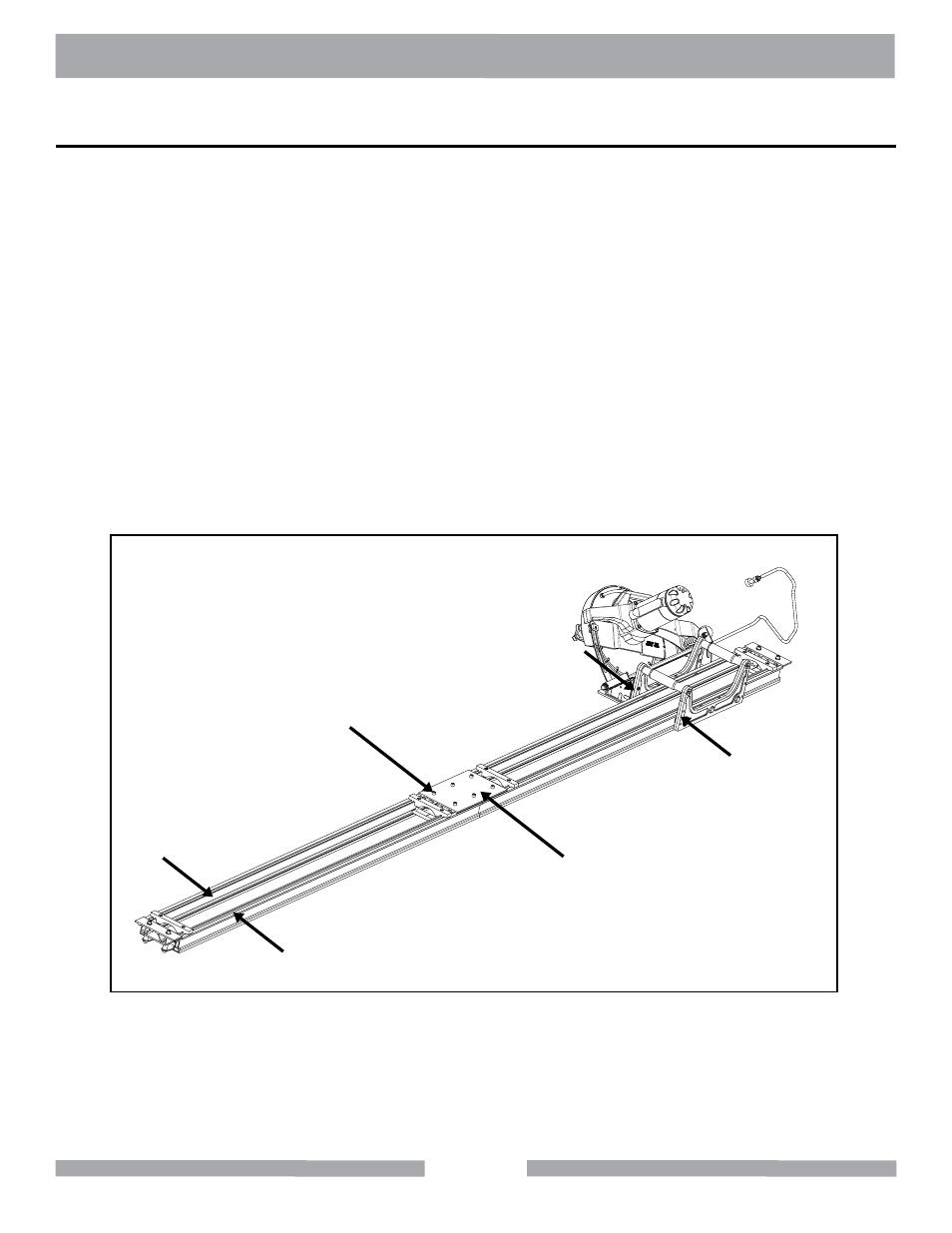

The rail connector assembly is required to hold two Rail Assemblies together.

1. Slide the Rail Assembly (A) into the Connector Plate Assembly (B).

2. Tighten screws (C) lightly until connector plate is firmly seated.

3. Slide the other half of the Rail Assembly (D) into the Rail Connector Assembly (B).

4. Fully tighten screws.

A

B

A

D

D

C

Rail Assembly Connector
