TRACK RAIL SAW MAINTENANCE
WARNING
Always disconnect the unit from the power supply.
Blade Replacement
1. Remove knobs on outer blade guard.
2. Remove the Blade Guard.

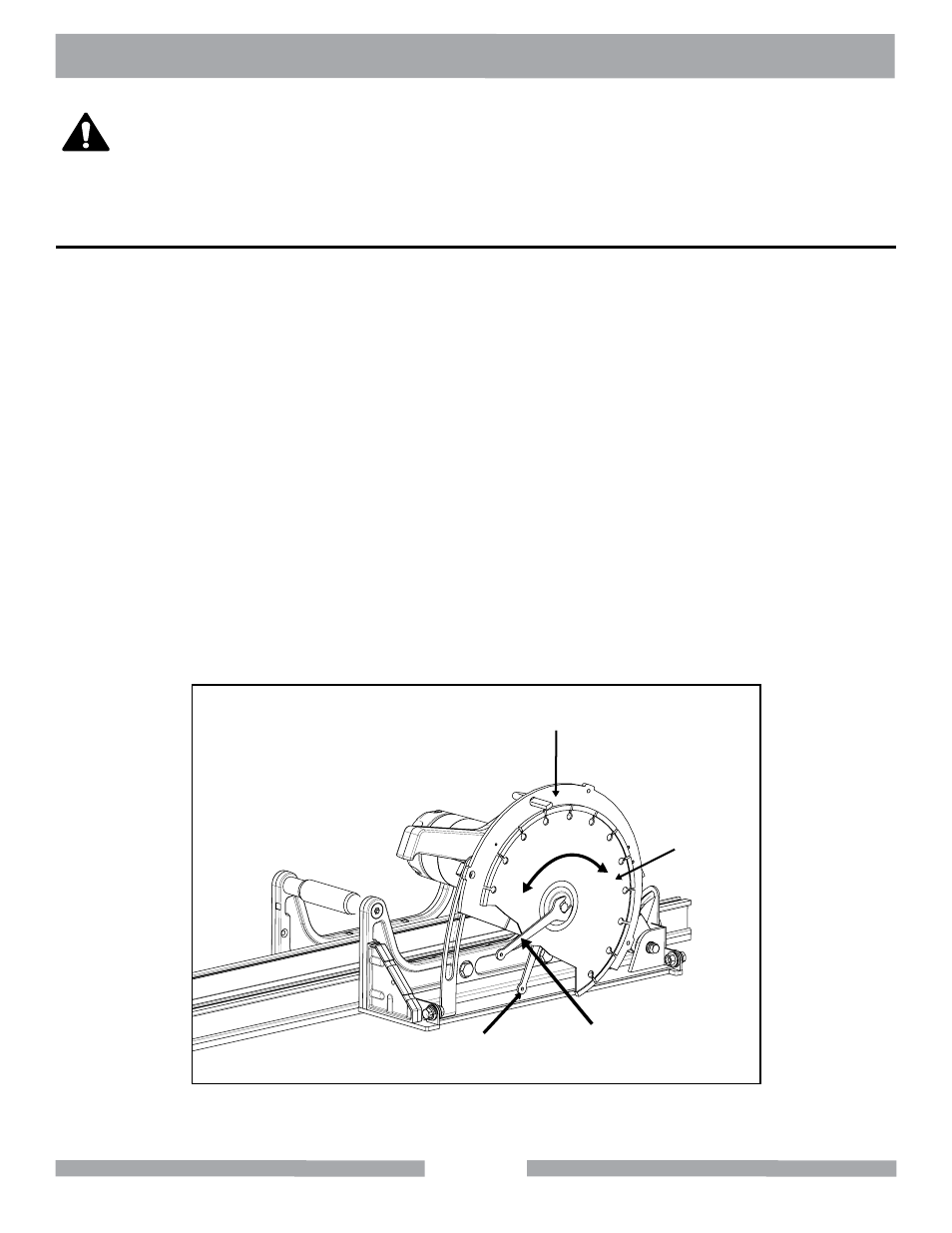

3. Use the open wrenches provided with this unit. Place wrench (A) over the flats on blade shaft
(located on the inner side of the blade). Hold the wrench stationary. Place wrench (B) on the
Hex Screw at the end of the blade shaft. Turn wrench (B) counter-clockwise to remove the screw.
4. Replace the blade and ensure that the blade is oriented with the arrow in a counter clockwise
position. Tighten the screw clockwise to secure the new blade.
5. Rotate the blade by hand to check it for tightness.
A
B
BLADE
INNER GUARD
