TRACK RAIL SAW SET-UP

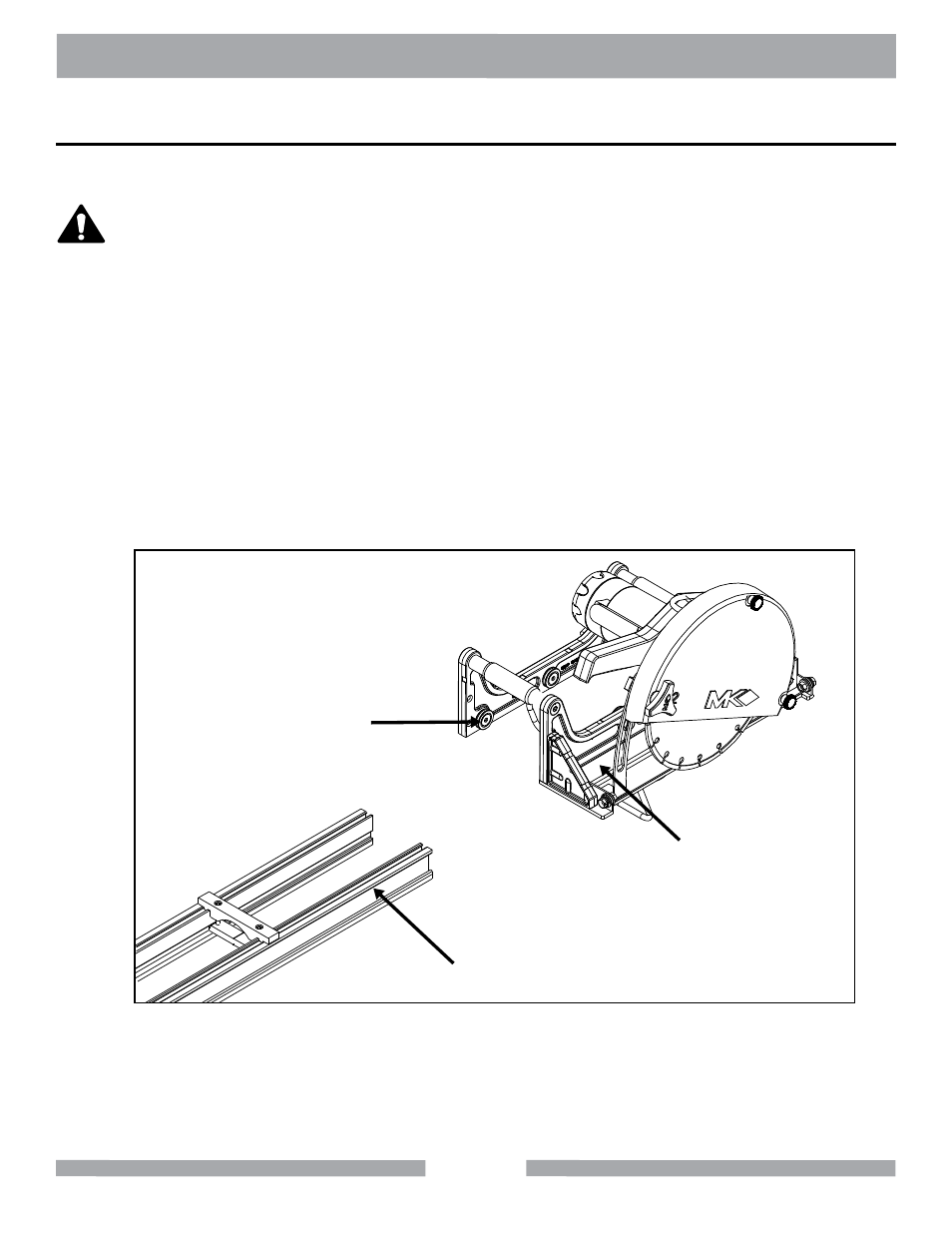

1. Place the Rail Assembly (B) on slab.
2. Slide the Cutting Head Assembly (A) until the Carrier Wheels (C) are over Rail Assembly (B).
3. Move the Cutting Head Assembly along the Rail Assembly with a sliding motion.
A
B
WARNING
C
Cutting Head Assembly
Ensure that the power is disconnected before installing the Cutting Head Assembly to Rails.
The Cutting Head Assembly is pre-assembled and aligned at the factory.
