TRACK RAIL SAW

PARTS LIST

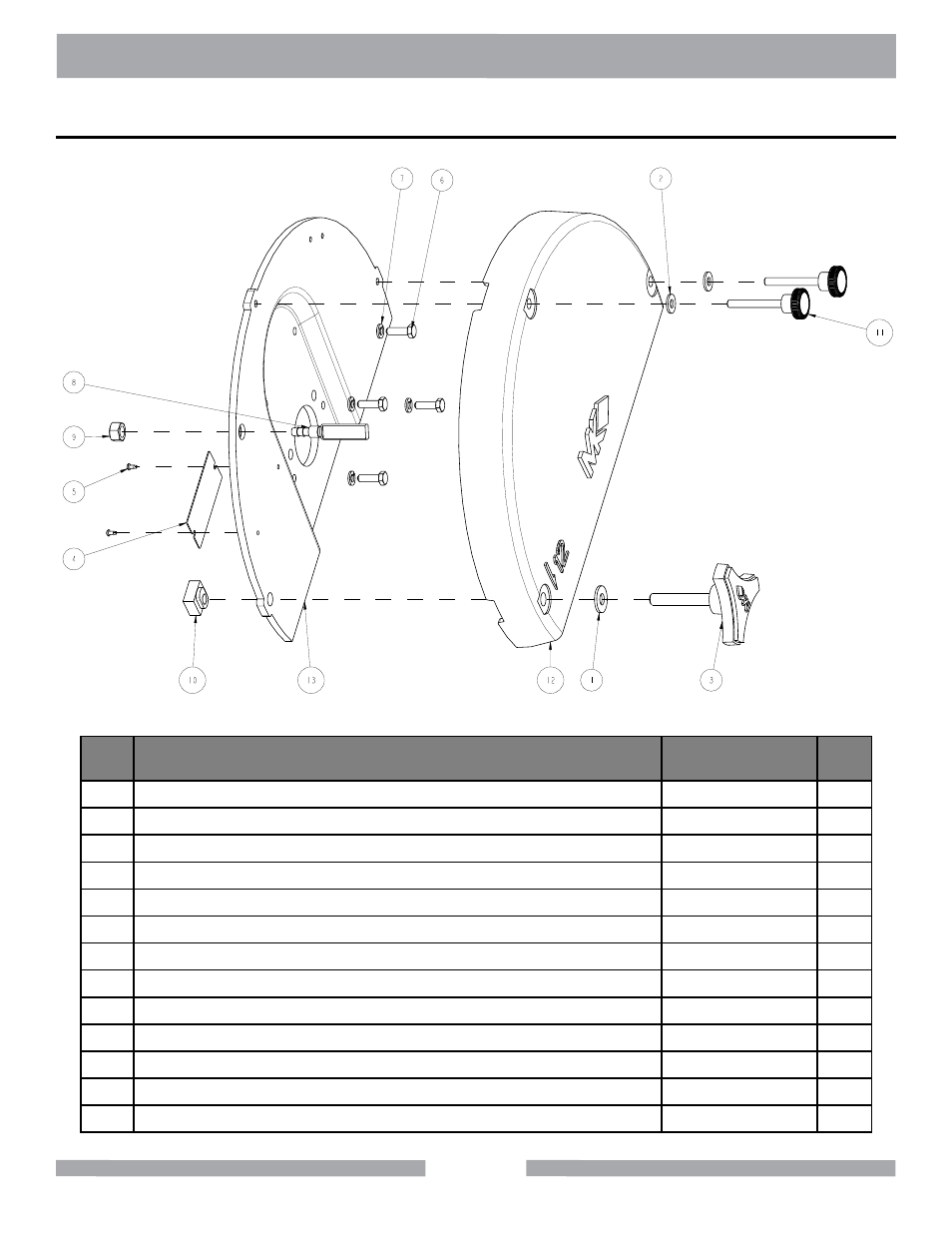

Blade Guard Assembly

ITEM

NO.

DESCRIPTION

PART OR

IDENTIFYING NO.

QTY.

REQ.

1

WASHER, 3/8 SAE FLAT

150923

1

2

WASHER, 1/4 SAE FLAT

151915

2

3

KNOB, TRI PLASTIC, 3/8-16X2-1/4

56770-04

1

4

TAG, SERIAL #, BLANK

157500

1

5

DRIVE SCREW, #7 X 5/16 ROUND HEAD

157849

2

6

SCREW, HEX HEAD CAP, M6 X 1 X 20MM

158158

4

7

WASHER, SPLIT LOCK, M6

158159

4

8

MANIFOLD, WATER

159854

1

9

NUT, 3/8-16 HEX

159863

1

10

NUT, ROUNDED T-SLOT

164945

1

11

KNOB, 1/4-20X2 ROUND

165163

2

12

GUARD, BLADE (COMP)

166109

1

13

GUARD, INNER BLADE (COMP)

166111

1
