MK-770 Revision 06/05, Effective Date June 17, 2005 Page 20
SETUP, ADJUSTMENT and OPERATION

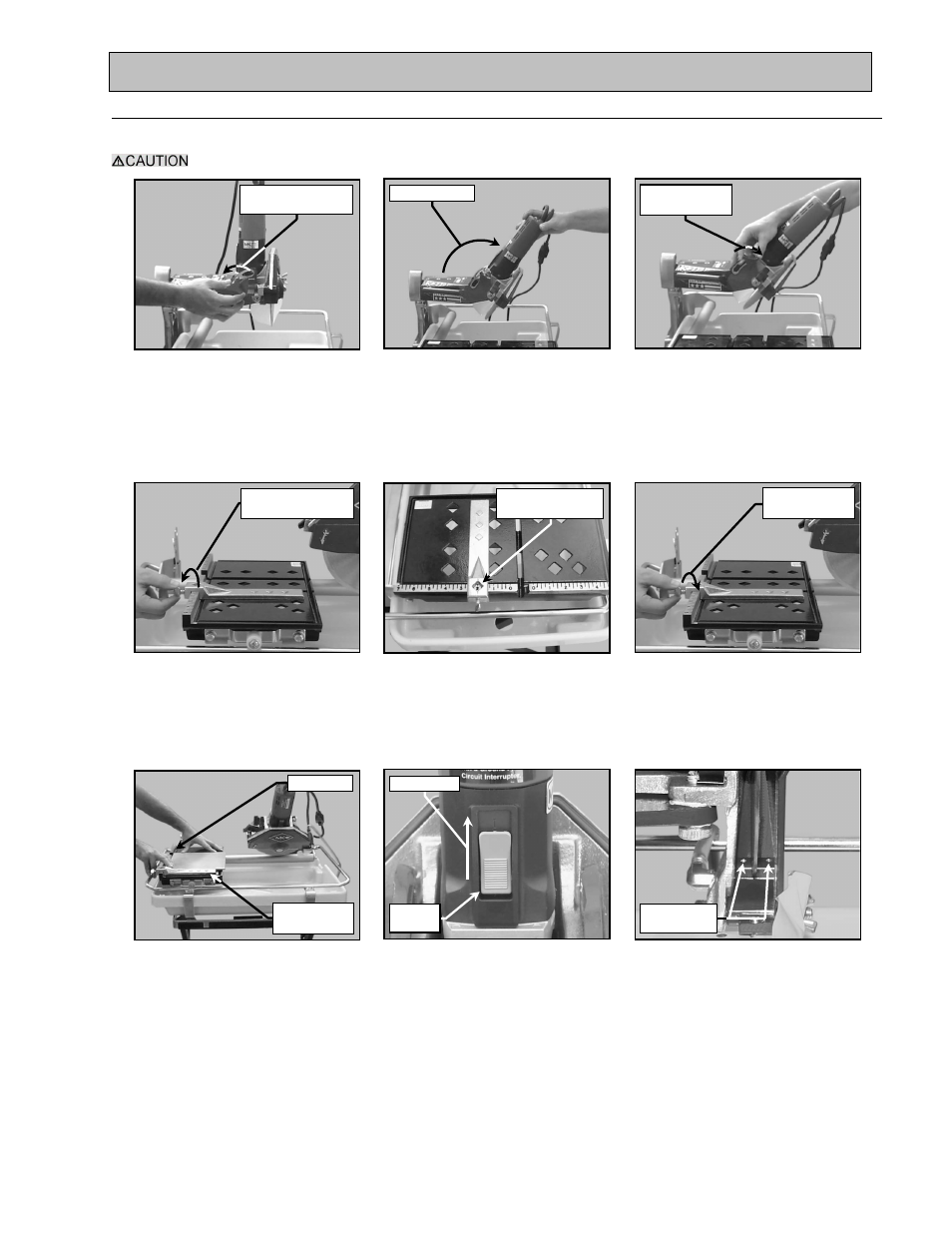

2. Cutting 45º Miters:
The MK-770 is designed with an adjustable Cutting Head for precision 45º Miter Cuts.
DO NOT FORCE THE TOOL. It will do the job better and safer at the rate for which it was designed.
(H)
Turn the motor ON
(I)
Verify cooling flow on both sides
of the blade (See Maintenance
Section to adjust flow)
ON/OFF
Switch
Cooling Flow
Points
(D)
Loosen the Adjustable Cutting
Guide retaining thumbscrew
Turn counter-
clockwise to loosen
(E)
Position the Adjustable Cutting
Guide to desired cut length
indicated inside the diamond
Desired cut length
indicated here
(F)
Tighten the retaining
thumbscrew
Turn clockwise
to tighten
(A)
Loosen the Cutting Head Pivot,
Retaining Knob
(B)
Pivot the Cutting Head to the
45º cutting position
(C)
Tighten the Cutting Head,
Pivot Retaining Knob
Turn counter-
clockwise to loosen
Pivot Direction Turn clockwise
to tighten
(G)
Place the tile against the
Ruler/Stop and Cutting Guide
Ruler/Stop
Adjustable
Cutting Guide
On Position
