MK-770 Revision 06/05, Effective Date June 17, 2005 Page 17
SETUP, ADJUSTMENT and OPERATION

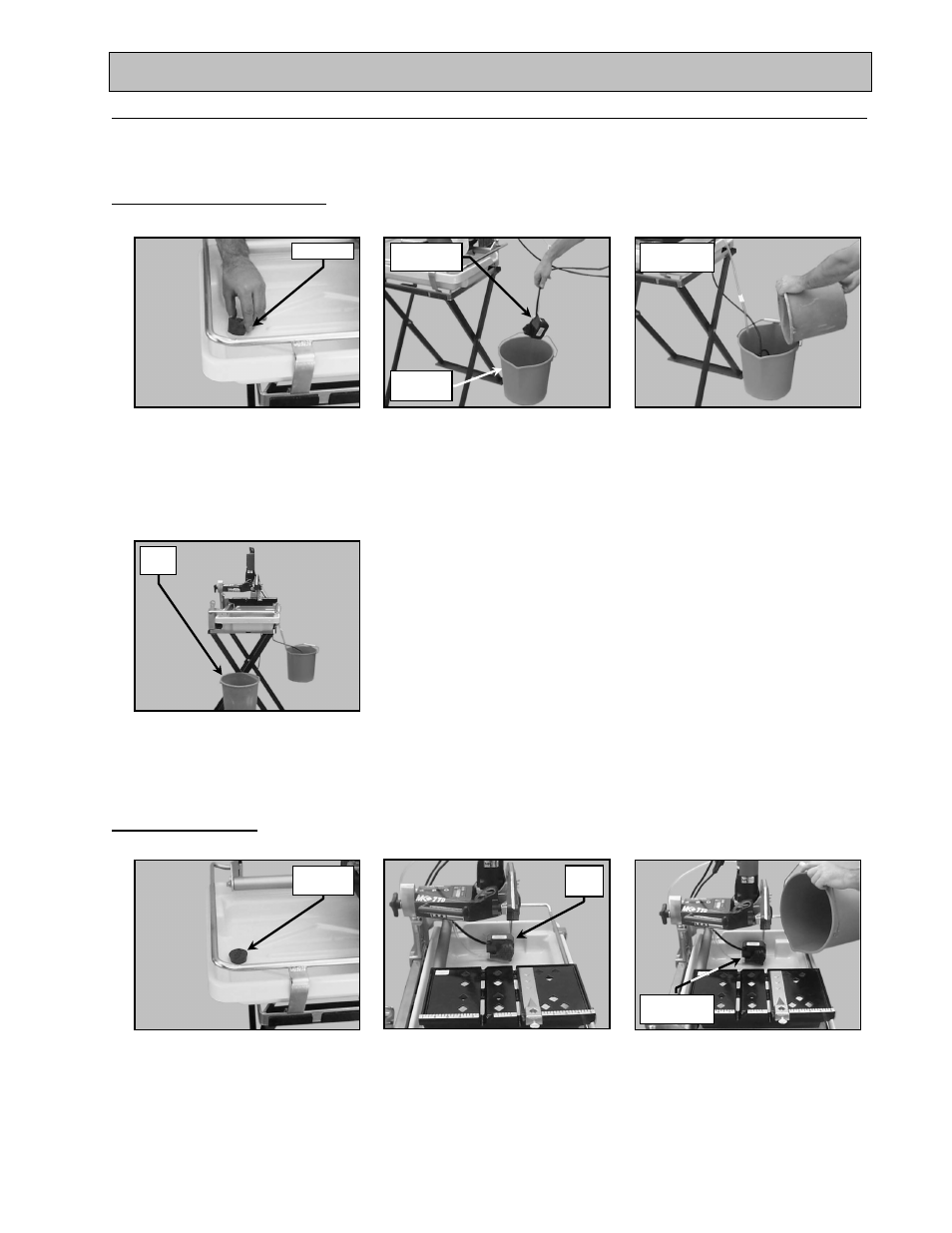

3. Water Pump Setup for Operation:
The Water Pump can be setup for operation in two ways, External Water Source or Re-circulation.
NOTE: If using a dry blade for operation, DO NOT connect the water pump.
I. External Water Source:
This is the preferred method of cooling.
II. Re-circulation:
NOTE: When using the re-circulation method, the water should be changed often for longer pump life.
(A)
Remove the Drain plug
(B)
Place the Water Pump
In an external container
(C)
Fill the external container until
water completely covers the
Water Pump suction
(D)
Place an external catch Basin
below the Water Pan drain hole
(A)
Ensure the Drain Plug is
installed in the Water Pan
(C)
Fill the Water Pan until water
completely covers the Water
Pump suction
Cover Pump
Suction
Drain Plug Water Pump
In container
External
Container
Catch
Basin
Drain Plug
Installed
Water
Pump
Cover Pump
Suction
(B)
Place the Water Pump in the
back of the Water Pan
