MK-770 Revision 06/05, Effective Date June 17, 2005 Page 15

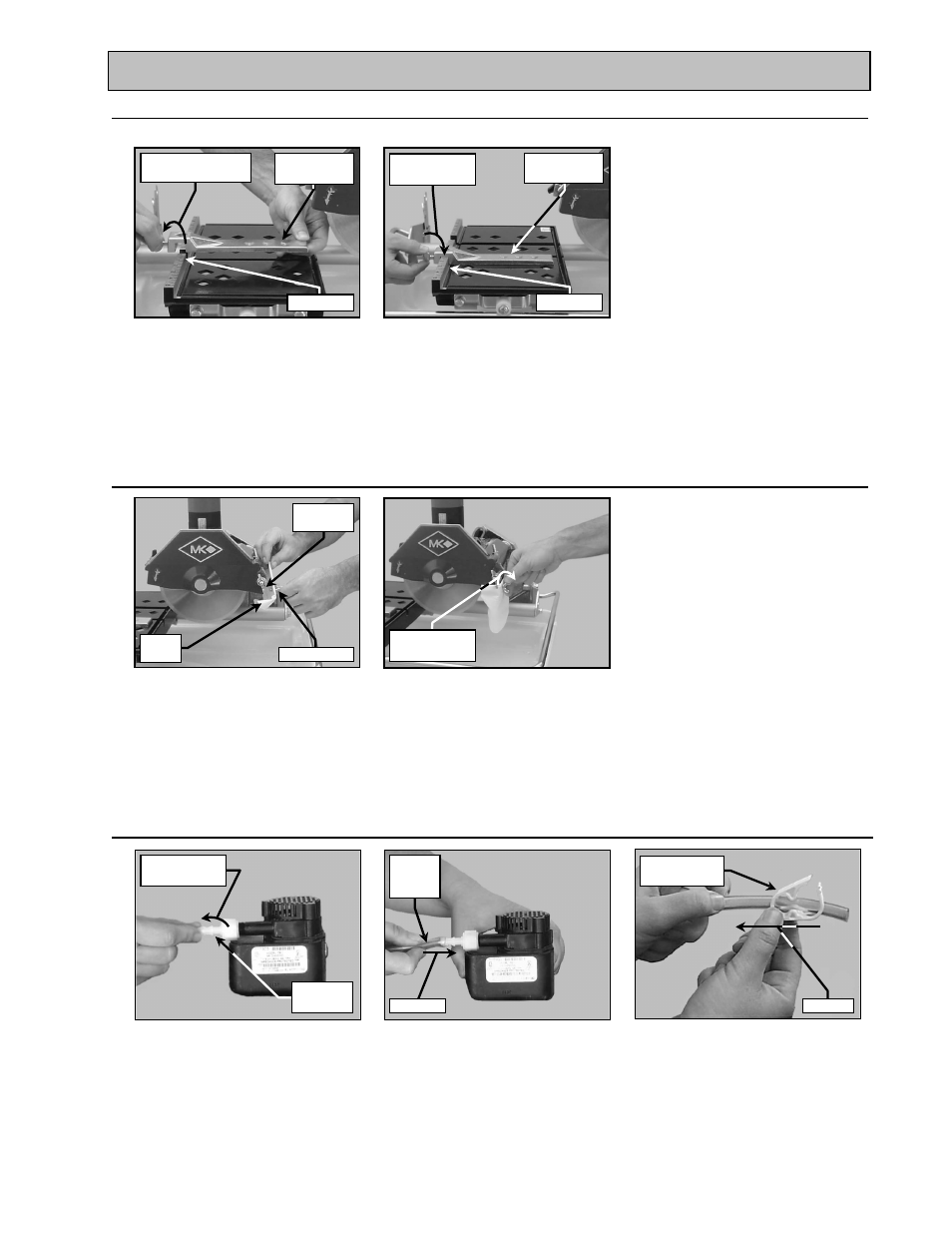

UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
3. Adjustable Cutting Guide Installation:
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
4. Splash Guard Installation:
5. Water Pump Preparation: :
(A)
Loosen Adjustable Cutting
Guide retaining thumbscrew
and place it over the Movable
Cutting Table, Ruler/Stop
(B)
Place the Adjustable Cutting
Guide onto the Movable Cutting,
Table Ruler/Stop and tighten the
retaining thumbscrew
(A)
Install Water Pump Discharge
Fitting
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found
on back of the Blade Guard
(B)
Install the Splash Guard
onto the Blade Guard
Turn clockwise
to tighten
Thumbscrew
Splash
Guard
Turn clockwise
To tighten
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting
Turn clockwise
to tighten
(C)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube
Discharge
Fitting Press on
Flow Adjusting
Clamp
Press on
Ruler/Stop Ruler/Stop
Cooling
Transfer
Tube
Adjustable
Cutting Guide
Turn counter-
clockwise to loosen
Adjustable
Cutting Guide
Retaining
Hole
