MK-770 Revision 06/05, Effective Date June 17, 2005 Page 16

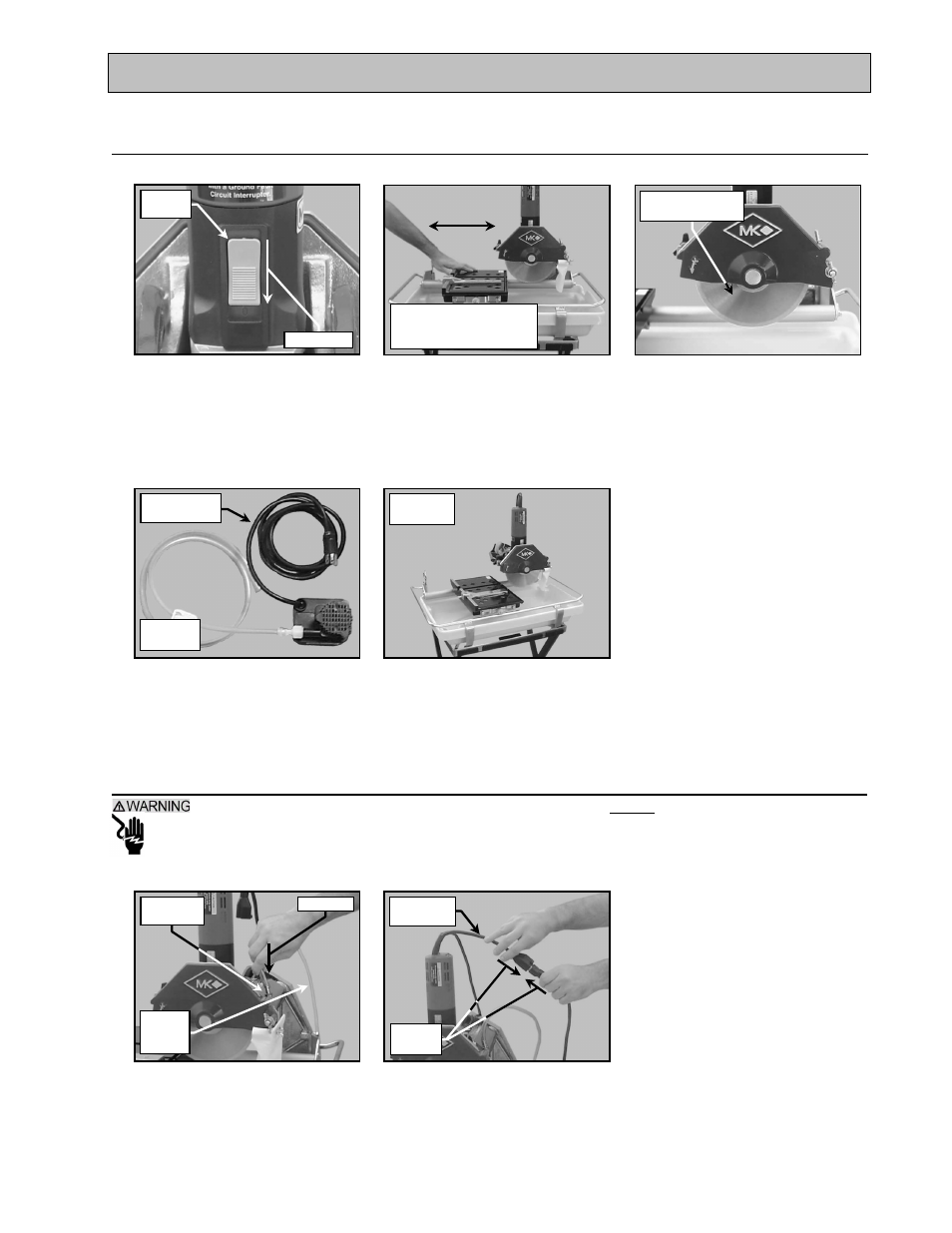

SETUP, ADJUSTMENT and OPERATION
SETUP:
1. Pre-start Inspection:
Prior to beginning work, a pre-start inspection of the saw should be performed.
2. Connecting the Water Pump:
1. To prevent the possibility of electrical shock, the MK-770 MUST be de-energized when
connecting the Water Pump.
2. To prevent the possibility of electrical shock, use only MK Diamond qualified replacement parts
NOTE: To prevent pump damage, the Water Pump must be disconnected if cutting with a Dry Blade.
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Verify the Movable Cutting
Table moves freely
(C)
Inspect the Diamond Blade for
damage – verify the blade is
correct for the type of material
being cut
(D)
Inspect the Pump Assembly for
damage – ensure the cord is
free of cracks or cuts
(E)
Inspect the MK-770 for
damage – ensure the cord is
free of cracks or cuts
Verify ease of movement
(See Maintenance section
if problems exist)
Inspect for
damage
Inspect for
damage
Inspect for
cracks or cuts
(A)
Connect the Cooling Transfer
Tube to the inlet connection of
the Blade Guard
(B)
Connect the Water Pump power
cord to the connection found on
the back of the motor
Press on
ON/OFF
Switch
Inspect for cracks,
de-bonding, etc.
Cooling
Transfer
Tube
Inlet
connection
Press
together
Pump
Connection
Off Position
