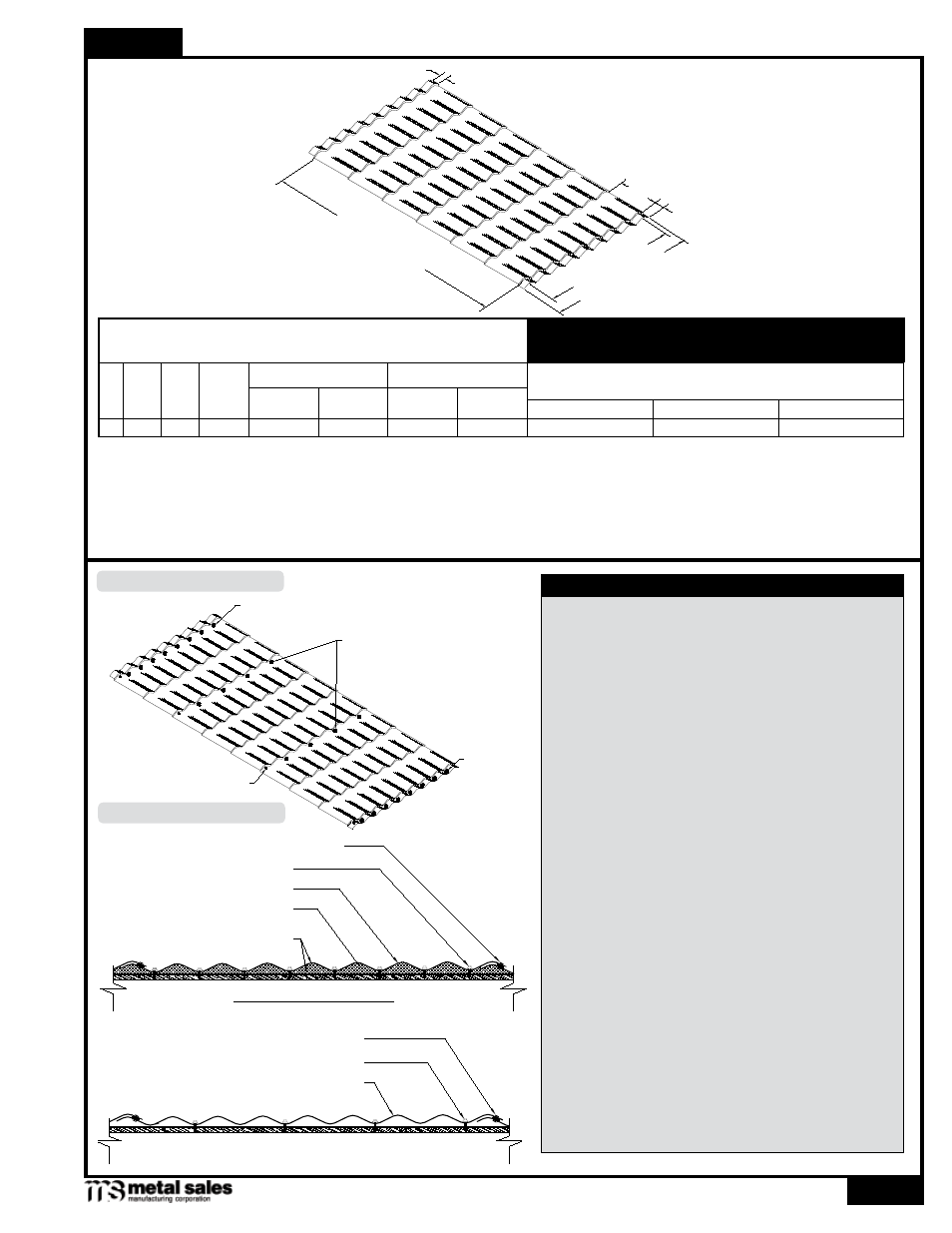

STILE ®
PST-7 © Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com
s
eCTion
P
roPerTies and
g
eneral
i
nformaTion
1. Theoretical section properties have been calculated per AISI 2001 “Specification for the Design of Cold-formed Steel Structural Members.” Ixx and Sxx are
effective section properties for deflection and bending.
2. Allowable load is calculated in accordance with AISI 2001 specifications considering bending, shear, combined bending and shear, deflection, uplift testing,
pullout from 5/8" plywood, and pullover. Allowable load considers the worst case of 3 and 4 equal span conditions. Allowable load does not address web
crippling. Panel weight is not considered.
3. Deflection consideration is limited by a maximum deflection ratio of L/180 of span.
4. Allowable loads do not include a 1/3 stress increase in uplift.
ALLOWABLE UNIFORM LIVE LOADS PSF
(3 or More Equal Spans)
1'-0"
SECTION PROPERTIES
Bottom in Compression
Width
(in.)
Yield
KSI
39.4" 25 26
Ga.
Sxx
In 3 /ft
Ixx
In 4 /ft
Weight
PSF
0.83
Top in Compression
Sxx
In 3 /ft
Ixx
In 4 /ft
0.0396 0.0644 0.0396 0.0643
Outward Uplift (Stress) Load
2'-0" 3'-0"
103 77 50
2"
2"
12"
Available in lengths
up to 20'-0"
42.3
" Overall width
39.4
" Coverage
GENERAL INFORMATION ATTACHMENT DETAIL
FASTENING PATTERNS
The minimum recommended slope for the Stile ® roof
panel is 3:12.
The recommended substrate is 5 /
8
" plywood with a 30
pound felt moisture barrier. To avoid panel distortion, use
a properly aligned and uniform substructure.
NOTE: Stile ® roof panels are not recommended for use
over open structural framing.
Stile ® panels have a coverage of 39.4" (1 meter).
Minimum factory cut panel length is 3'-0". Maximum
panel length is 20'-0". Panel lengths are available in 1'-0"
increments.
The fastener selection guide should be consulted for
choosing the proper fastener for specific applications.
Quantity and type of fastener must meet necessary
loading and code requirements.
NOTE: All panels are subject to surface distortion due to
improperly applied fasteners. Overdriven fasteners will
cause stress and induce oil canning across the face of
the panel at or near the point of attachment.
Finish: Kynar 500 (PVDF) colors.
Gauge: 26 ga standard
1 /
4
"-14 x 1 1 /
2
" Woodscrew XL
Stile ® Panel
Stile ® Closure
Tube Sealant
(Top and Bottom of Closure)
1 /
8
" x 3 /
16
" Pop Rivet with Tube Sealant
1 /
4
"-14 x 1 1 /
2
" Woodscrew XL
Stile ® Panel
Pop Rivet or Stitch Screw w/ Tube Sealant
END FASTENING PATTERN
Interior Fastening Pattern
at every third step
End Fastening Pattern
End
Fastening
Pattern
Sidelaps fastened
1'-0" o.c. with a
1 /
8
" x 3 /
16
" Pop Rivet or a
1 /
4
"-14 x 1 7 /
8
" Stitch Screw
High end
Low end
 Slope
 Substructure
 Coverage
 Length
 Fasteners
 Availability
