Mayline Maytrix Frame - Manual (Page 4)

Center Support (5)
1/4 -20 x 2 1/2
Screws (E4)

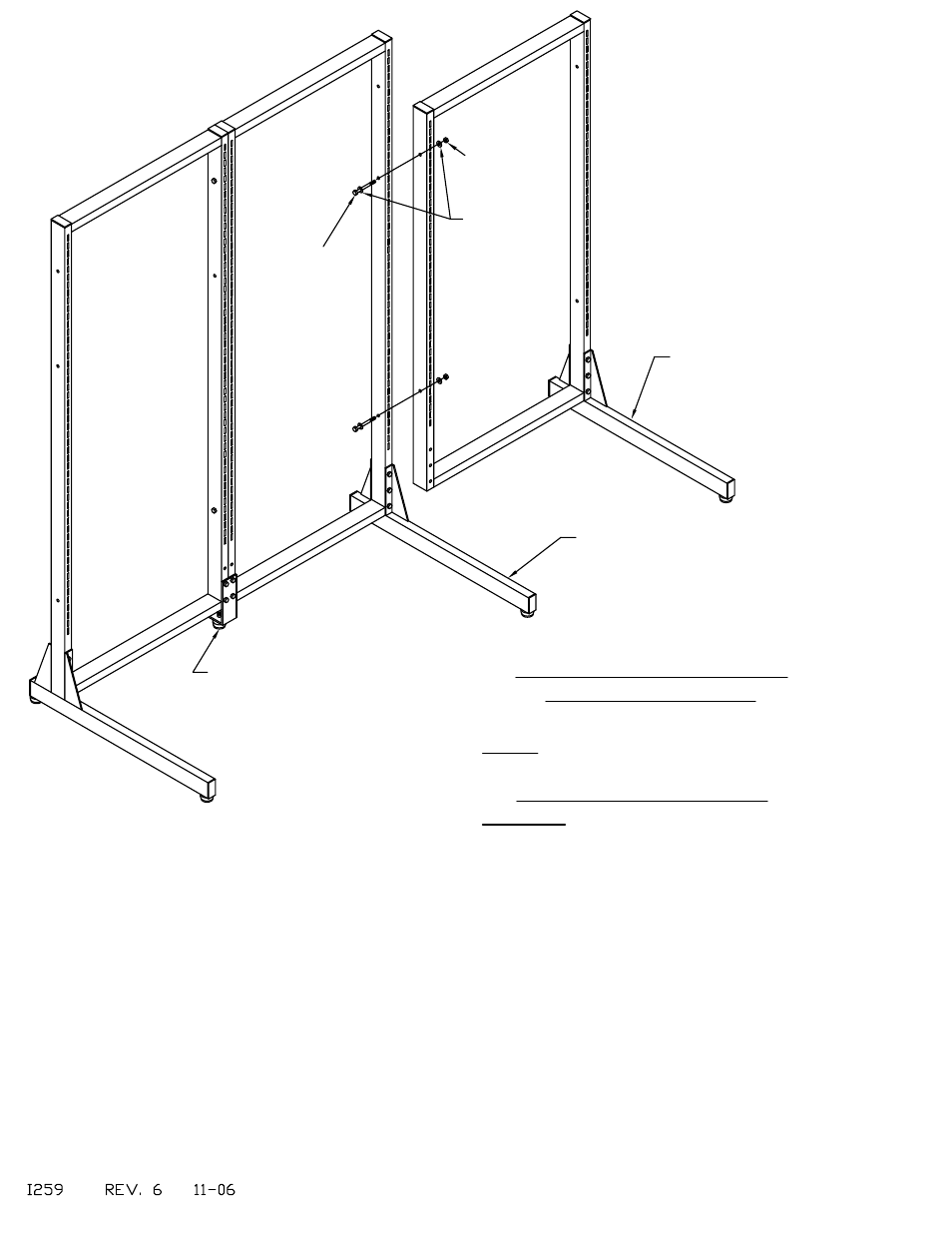

8. Assemble the Single Frame per the instructions
on the first page of this instruction sheet.
The single frame Leg Assembly is determined by
the side of the double frame you have chosen to
expand.
9. Bolt the frames together using 1/4-20 x 2 1/2
Screws (E4), Washers (E3), and 1/4-20 Hex Nuts
(E2). Tighten all screws securely.
10. Level Frame by adjusting the Glides.
When connecting an additional
Single Frame Assembly
NOTE:
It is a MAYLINE recommendation
the NEVER MORE THAN TWO
FRAMES be joined together utilizing
the Center Leg Support (5).
Double Frame Assembly
Single Frame Assembly
(with Right Hand Leg only)
Washer (E3)
1/4-20
Hex Nuts (E2)
(4)
