Assembly instructions t-mate tables

background image

(1)

P/N

REV 03 11/07/2012

ASSEMBLY INSTRUCTIONS

T-MATE TABLES

NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.

** Denotes Color Code

~~Denotes Size

* Individual Items, Order by part number.

When ordering components, specific color and/or size information may be required.

Contact a Mayline Customer Service Representative. 1-800-822-8037

REF# QTY. DESCRIPTION PART NO.
1 1 Top CALL ~~**
2 2 Leg Assembly CALL ~~**
3 1 Stiffener CALL ~~**

HARDWARE BAG

(Part No. A7936**)

REF# QTY. DESCRIPTION PART NO.
E1 12 Screw, 1/4-20 x 3/4 700124 *
E2 4 Swivel Glide 700169 *
E3 4 End Cap 600109** / *
E4 10 Screw, #10 x 3/4" X11 *
E5 12 Washer, 9/32 x 1 x .06 W83 *

STARTER COMPONENTS

ADDER COMPONENTS

REF# QTY. DESCRIPTION PART NO.
1 1 Top CALL ~~**
2 2 Leg Assembly CALL ~~**
3 1 Stiffener CALL ~~**

HARDWARE BAG

(Part No. A7937**)

REF# QTY. DESCRIPTION PART NO.
E1 6 Screw, 1/4-20 x 3/4 700124 *
E2 2 Swivel Glide 700169 *
E3 2 End Cap 600109** / *
E4 10 Screw, #10 x 3/4" X11 *
E5 6 Washer, 9/32 x 1 x .06 W83 *

All tables utilize the same hardware bag. Depending on Model Number you may have extra hardware.

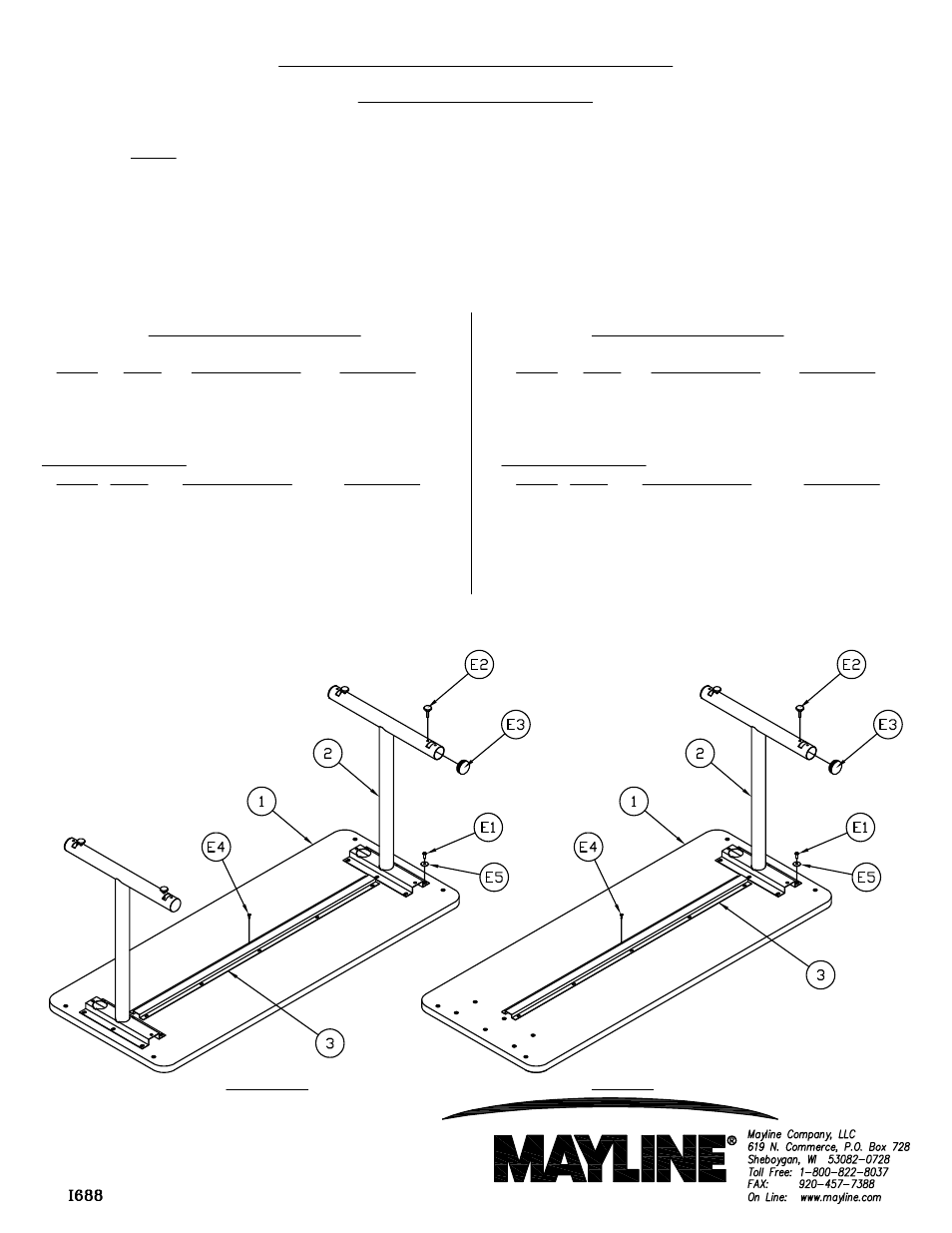

STARTER

ADDER
