Mayline Talon Tables v1 User Manual

Assembly instructions talon tables

background image

Tools Required for Assembly

Allen Wrench 5mm or 3/16", Allen Wrench 4mm or 5/32", Hammer, Phillips Screw Driver

Note: A Magnetic or Power Driver may be used to assist in assembly.

TOP CARTON

REF# QTY. DESCRIPTION PART NO.
1 1 Top CALL ~~**

BASE CARTON

REF# QTY. DESCRIPTION PART NO.
2 1 Base Assembly CALL ~~**

HARDWARE BAG

(Part No. 8200355*)

REF# QTY. DESCRIPTION
E5 2 Top Mounting Brackets
E6 8 Screw, 1/4-20 x 3/4
E7 2 Plastic Inserts

HARDWARE BAG

(Part No. 610236*)

REF# QTY. DESCRIPTION
E1 2 Plastic Leg Clip
E2 4 Screw, #10 x 5/8
E3 2 Ganging Bracket
E4 4 Knob, 1/4-20 x 1/2

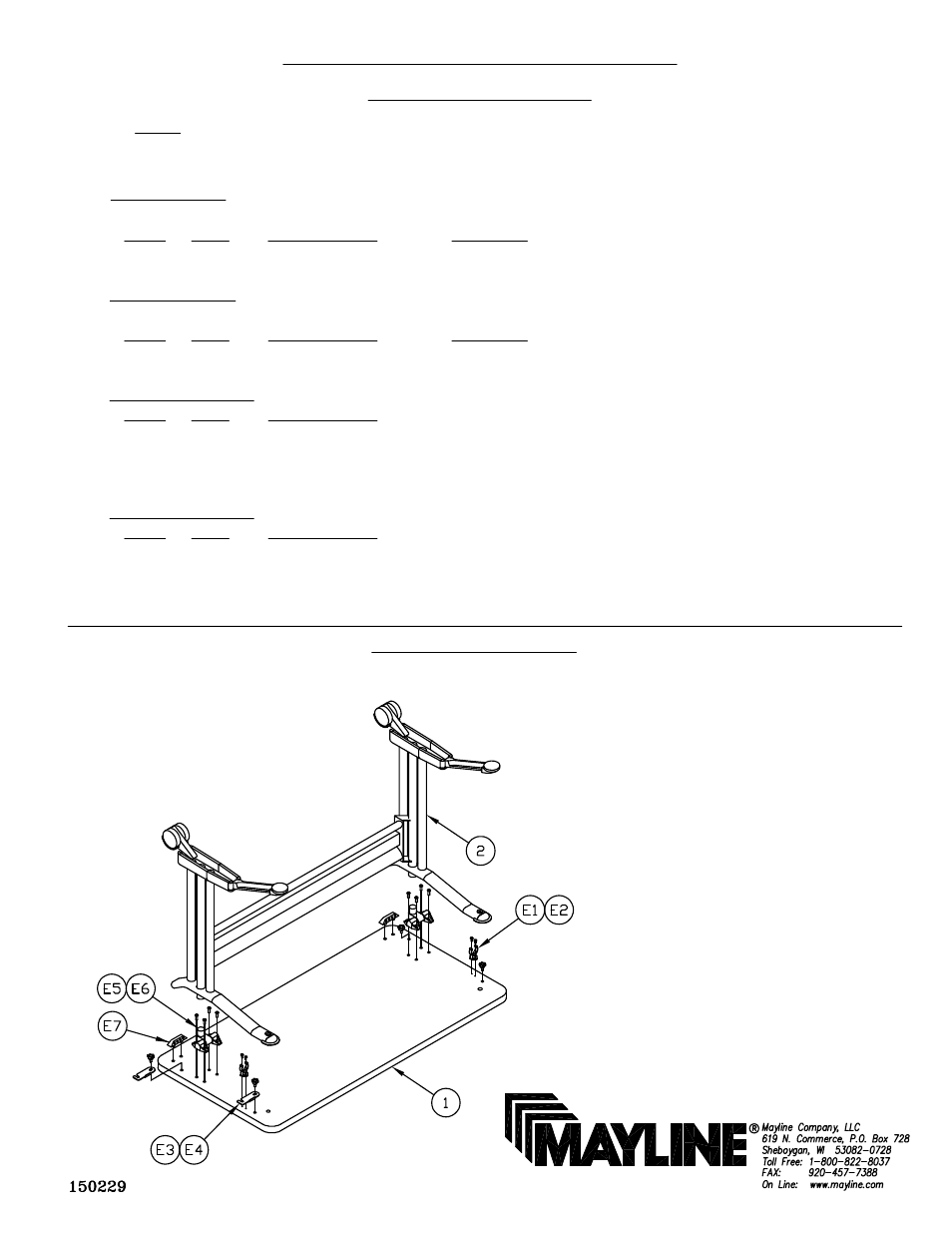

ASSEMBLY INSTRUCTIONS

TALON TABLES

NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.

All units consist of 2 cartons consisting of the following.

** Denotes Color Code

~~Denotes Size

* Individual Items, Order by part number.

When ordering components, specific color and/or size information may be required.

Contact a Mayline Customer Service Representative. 1-800-822-8037

P/N

REV 10 05/12/09
