(2)

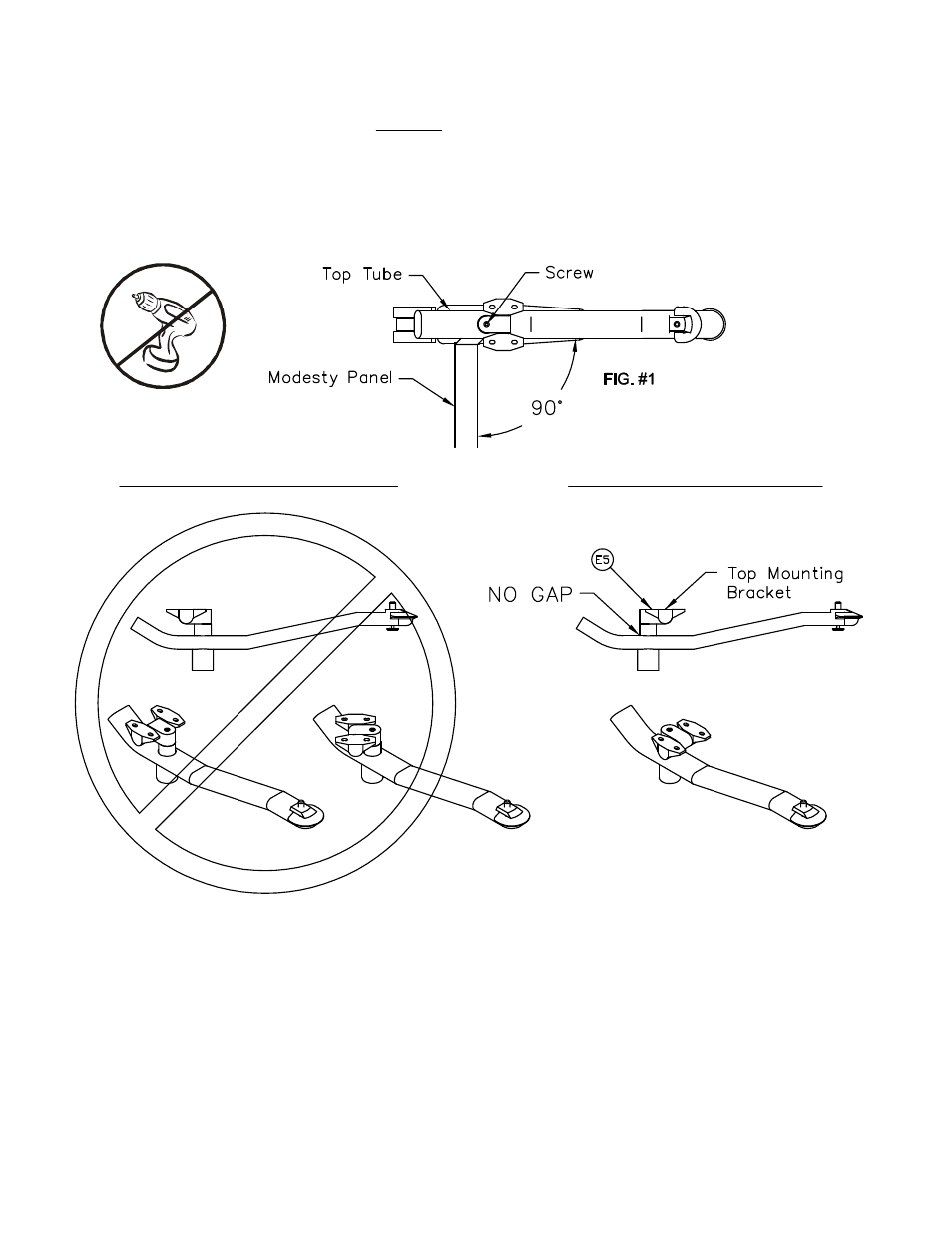

FIG. #2
1. Begin Assembly by Flipping Base upright. Rotate top tube at approximately 90° from the modesty pane l
as shown in Fig. #1. Begin assembly by locating the Top Mounting Brackets (E5) and inserting them into
the round leg tube as shown in Fig. #2. Caution: Correct rotation and insertion is critical to proper operation
of the unit.
2. With a 5mm or 3/16" Allen Wrench firmly tighten the screw in the top of the Top Mounting Bracket. The
compression fitting can not be over tightened by hand.
INCORRECT INSERTION CORRECT INSERTION
