Marshalltown 1220MP Mortar/Plaster Mixer - Manual (Page 18)

18 of 44
104 S. 8th Ave. Marshalltown, IA Phone 800-888-0127 / 641-753-0127 • Fax 800-477-6341 / 641-753-6341 www.MARSHALLTOWN.com
WS1169
6-2014/Rev.A
10
15
16
11
17
12
13
16
15
14
13 12
17
11
4
3
2
1
9
8
7
6
5
8
8
8

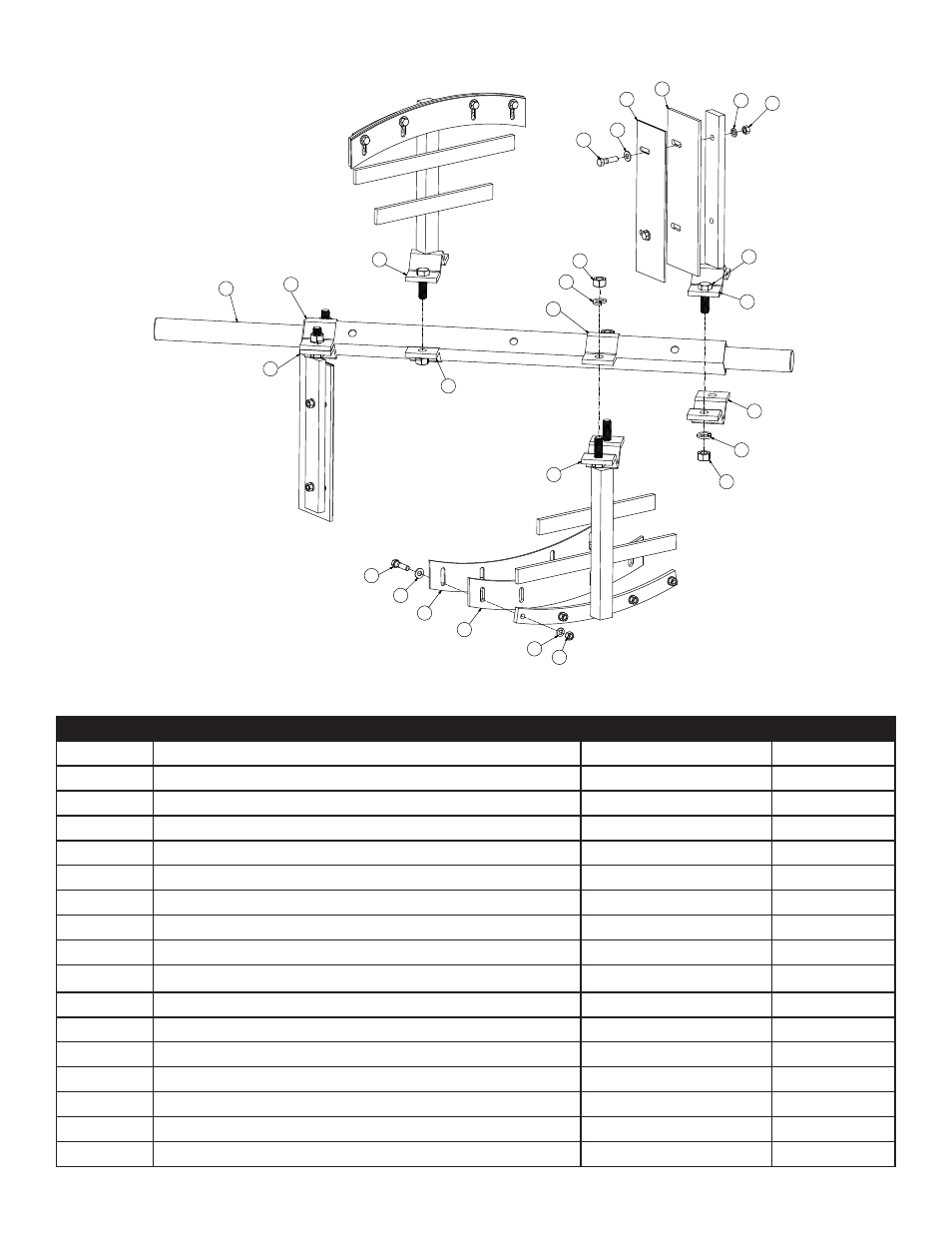

800MP MIXER PADDLE, SHAFT ASSEMBLY
REF # NAME PART# Quantity
1 WIPER, ENGINE SIDE MIX245465 1
2 BLADE, SIDE MIXING MIX5088 2
3 BLADE, SCRAPER MIX5089 2
4 BLADE, PADDLE MIX5643 2
5 BLADE, RUBBER MIX5585 2
6 WIPER, TOW END SIDE MIX245464 1
7 ARM, MIXING ASSEMBLY - TOW END MIX245460 1
8 ARM CAP, MIX MIX245461 4
9 ARM, MIXING ASSEMBLY-ENGINE END MIX245463 1
10 DRUM SHAFT WELDMENT WU826 1
11 HEX HEAD CAP SCREW, 3/8-16 X 1-1/2" MIX70249 12
12 LOCK WASHER, 3/8 MIX70649 12
13 HEX NUT, 3/8 MIX70553 12
14 HEX HEAD CAP SCREW 5/8-11 X 2" MIX71195 8
15 LOCK WASHER 5/8" MIX70657 8
16 HEX NUT, 5/8-11 MIX70567 8
17 FLAT WASHER 3/8" MIX70703 12
800MP MIXER PADDLE, SHAFT PARTS BREAKDOWN
