9400 Technology applications | Actuator – speed
Parameter setting & configuration
Actual value and status signals
32
L
EDS94TA10010xxxx EN 1.1 - 10/2008

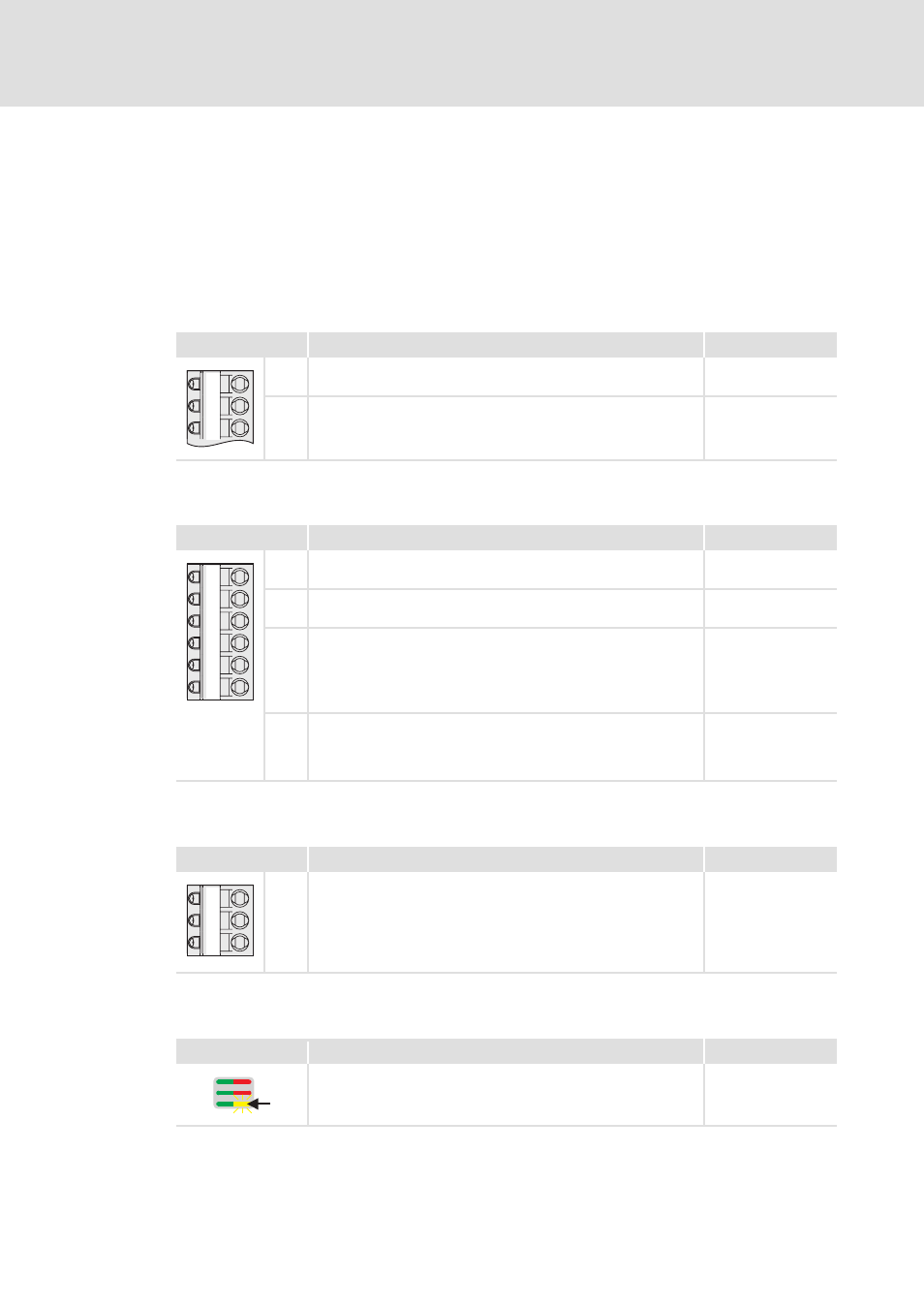

4.10 Actual value and status signals
The following tables contain the Lenze assignment of the analog and digital outputs for
the technology application "actuator - speed".
r The default signal configuration if required can be easily changed by parameterising
the multiplexer parameters assigned.
Analog outputs
Digital outputs
State bus
Display elements
Terminal X3 Signal (Lenze setting) Signal configuration
AO1 Speed setpoint
• Scaling: ±10 V ≡ motor reference speed (C00011)
C03110/1
AO2 Filtered torque setpoint
• Scaling: ±10 V ≡ Motor reference torque (C00057/2)
C03110/2
Terminal X4 Signal (Lenze setting) Signal configuration
DO1 Status "Drive ready"
• DC-bus voltage is available and no error has occurred.
C03100/1
DO2 Status "Speed follower enabled"
• The speed follower has been enabled via the digital input DI2.
C03100/2
DO3 Status "Speed follower in limitation"
• The enabled speed follower is in the limitation for more than
100 ms.
• The setpoint is limited to the upper or lower speed limit value
(C00909/1 or C00909/2) .
C03100/3
DO4 Status "Error active acknowledgement is required"
• A monitoring function with the error response "Error" or "Quick
stop by trouble" has been activated and the controller is in the
status "Error active" or "Quick stop by trouble active".
C03100/4
Terminal X2 Signal (Lenze setting) Signal configuration
SB Status "Speed follower in limitation"
• The enabled speed follower is in the limitation for more than
100 ms.
• The setpoint is limited to the upper or lower speed limit value
(C00909/1 or C00909/2) .
• The state bus is put in the "error" status.
C03100/5
User LED Signal (Lenze setting) Signal configuration
Status "Speed follower enabled"
• The speed follower has been enabled via the digital input DI2.
C03100/6
GA
AO1
AO2
GO
24O
DO1
DO2
DO3
DO4
GE
24E
SB
