9400 Technology applications | Actuator – speed
Short setup
Step 3: Transferring the application to the controller
14
L
EDS94TA10010xxxx EN 1.1 - 10/2008
3.5 Step 3: Transferring the application to the controller
1. Update devices.
– Set the checkmark in the control field Recreate all.
– Click Create to start the compiling process.
2. Go online and transfer the application to the controller.

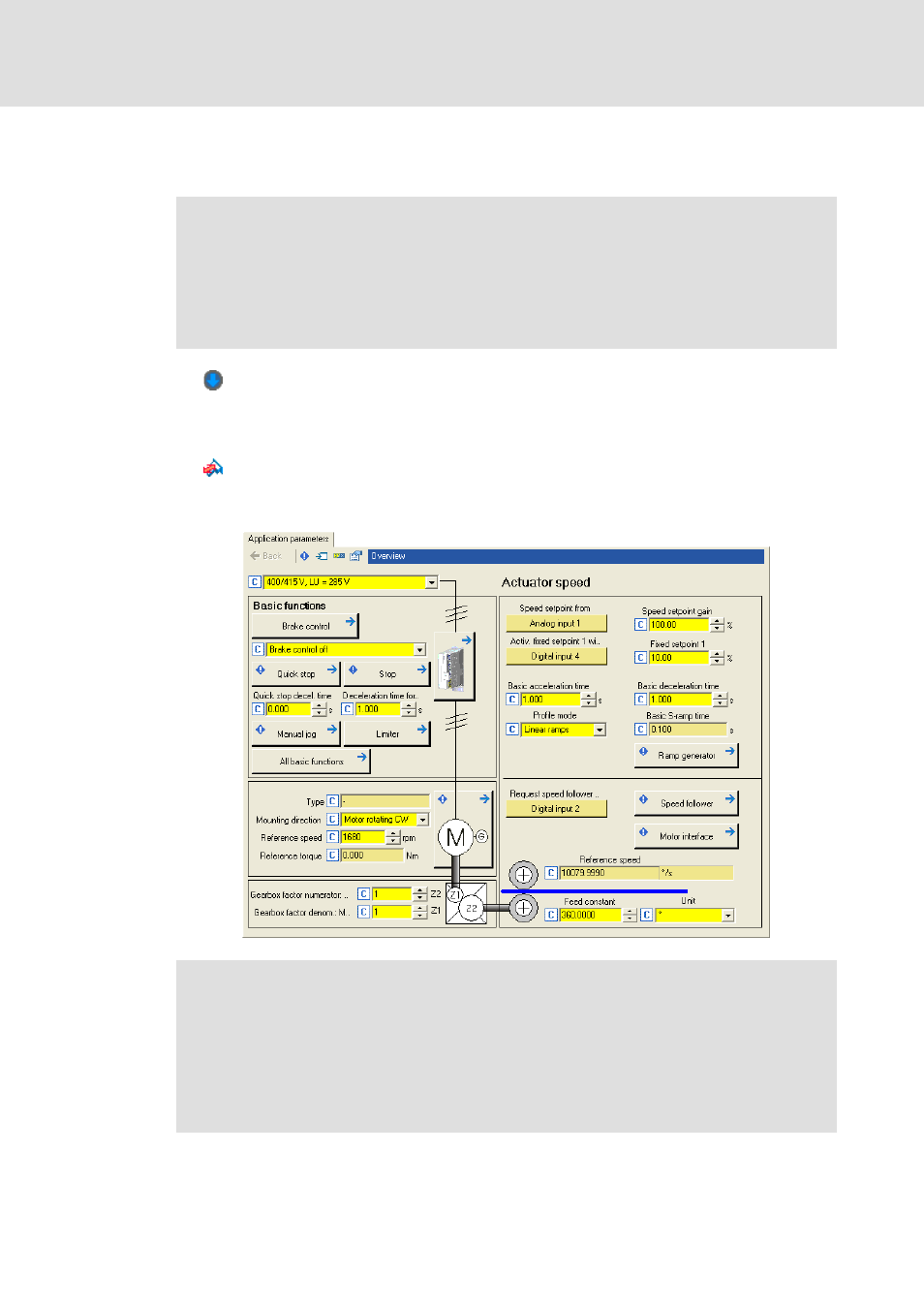

– With an online connection, the »Engineer« displays the current controller parameter
settings with a yellow background colour:
Note!
The transferred application is always stored in the first application memory
location in the memory module of the controller.
The preinstalled technology applications on the following memory locations are
still available.
Note!
The machine reference speed is the speed of the conveyor belt when the motor
runs at reference speed (C00011) with 100 % setpoint.
• The indicated value corresponds to a speed of 83.7 m/min.
• For reaching a speed of 100 m/min with 10 V at the setpoint input, the
setpoint gain can be increased to 120 % or the reference speed to 2010 rpm.
