Removing/Replacing Adjacent Units
To remove/replace adjacent units from an operating stack,
complete the following steps (see
Figure 14 ):
1. Remove the cascade cable from the Cascade A Out
connector at unit 2.

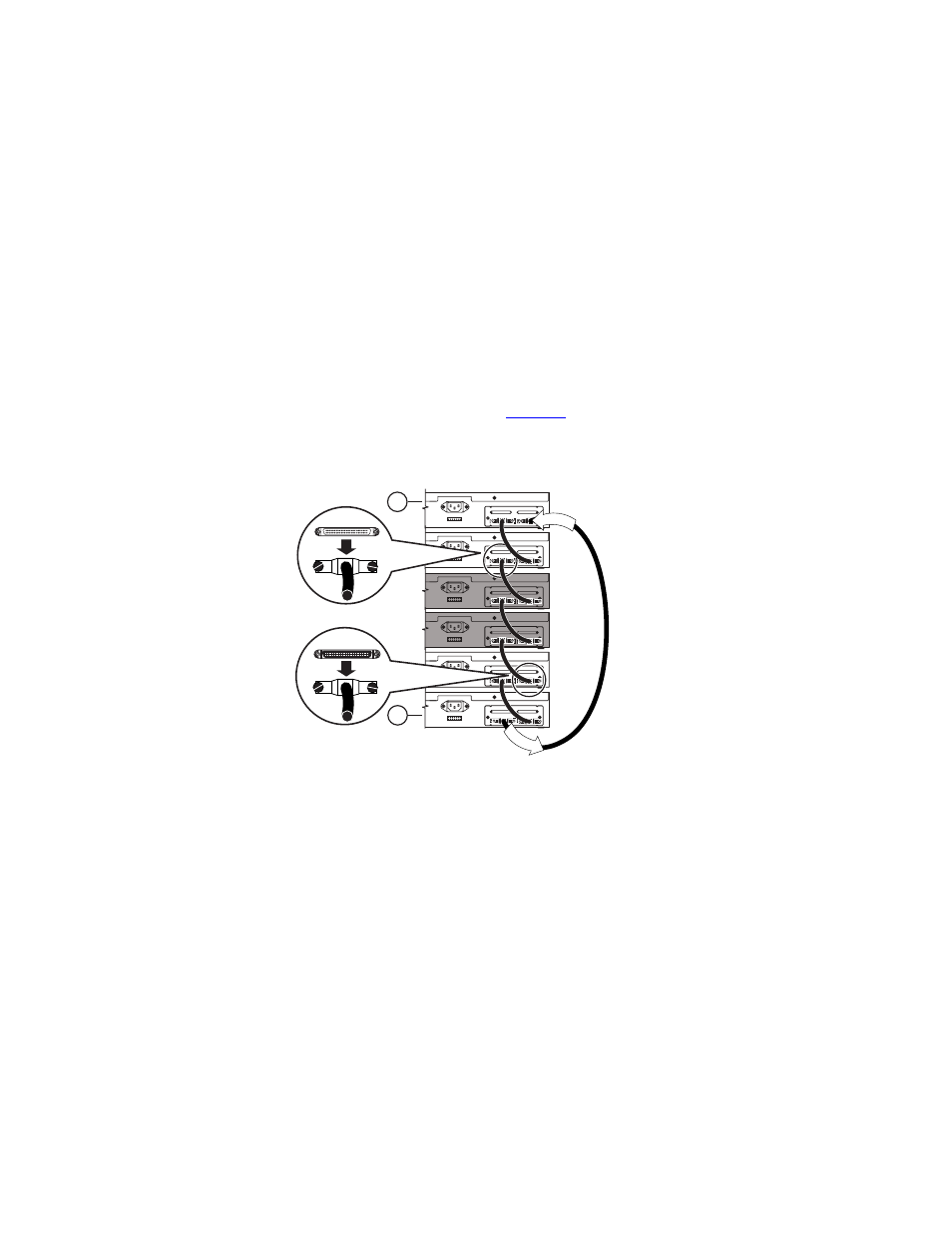

Figure 14. Removing Adjacent Units
1 = Base unit
2 = Last unit
BS0043A
Unit 2
Unit 1
Unit 4
Unit 3
Unit 6
Unit 5
2
1
Cascade A Out
In
O
ut
Cascade A In
