7. Connect the units using the supplied cascade
cables (
Figure 10 ).
a. Connect one end of a cascade cable to the
Cascade A Out connector on the Base Unit
(unit 1).

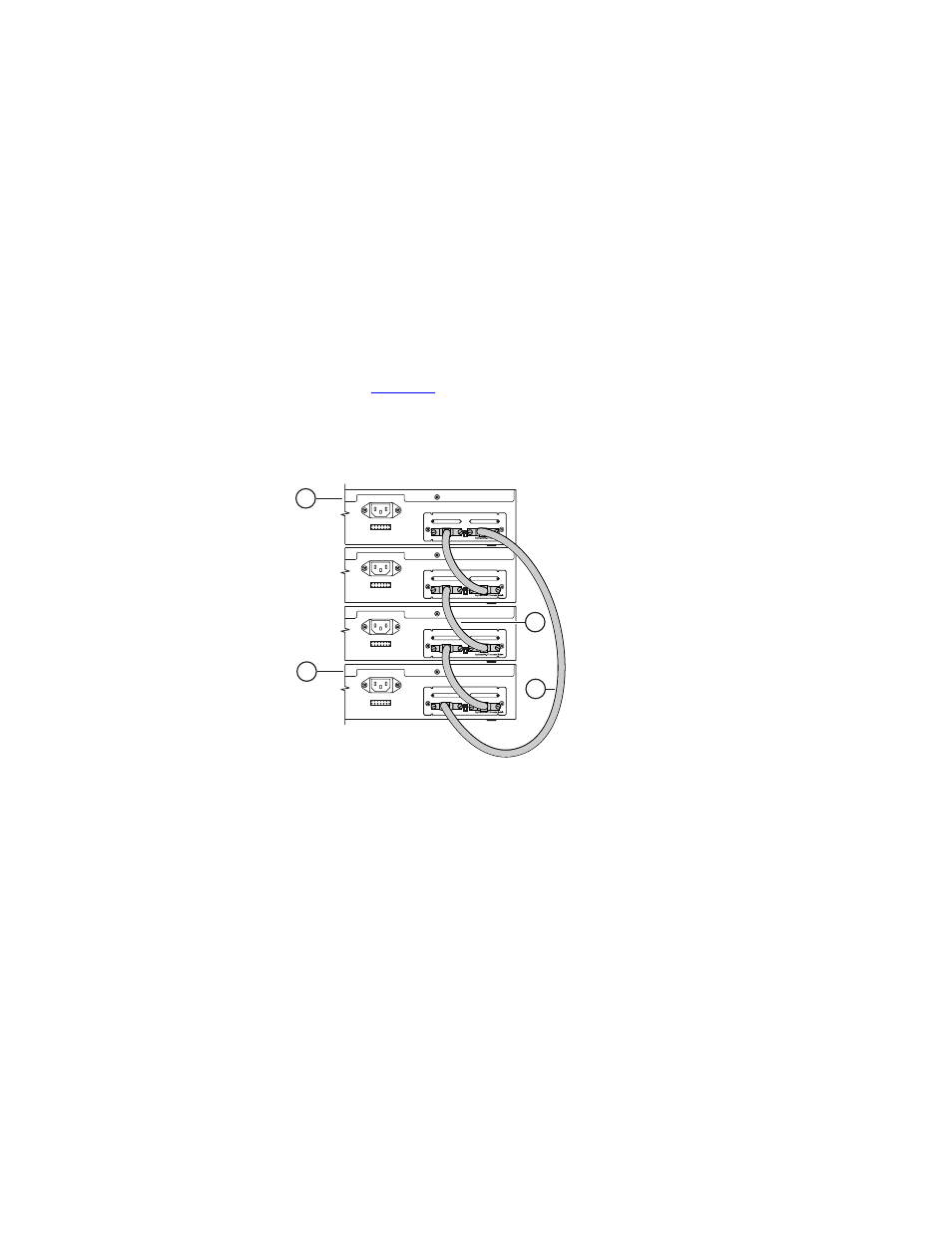

Figure 10. Installing Cascade Cables
Cascade A Out
Unit 2
1 = Base unit
2 = Last unit
3 = Cascade cable (PN 303978-A)
4 = Cascade max-return cable (PN 303979-A)
BS0039A
Cascade A In Unit Select
Cascade A Out Cascade A In Unit Select
Unit 1
Cascade A Out Cascade A In Unit Select
Cascade A Out Cascade A In Unit Select
Unit 3
Unit 4
2
1
3
4
