Electrical installation
Control terminals
Digital inputs and outputs
5
l
114 EDKCSCX064 DE/EN/FR 4.0
5.3.1 Digital inputs and outputs
(
Stop!
If an inductive load is connected to X6/DO1, a spark suppressor with
a limiting function to max. 50 V
± 0 % must be provided.
DI1 DI2 DI3 DI4
47k
GNDext
3k3 3k3 3k3 3k3
GND DO1 X6
1.5
A
1k
+
_
24 VDC =
+24
"
"
ECSXA014

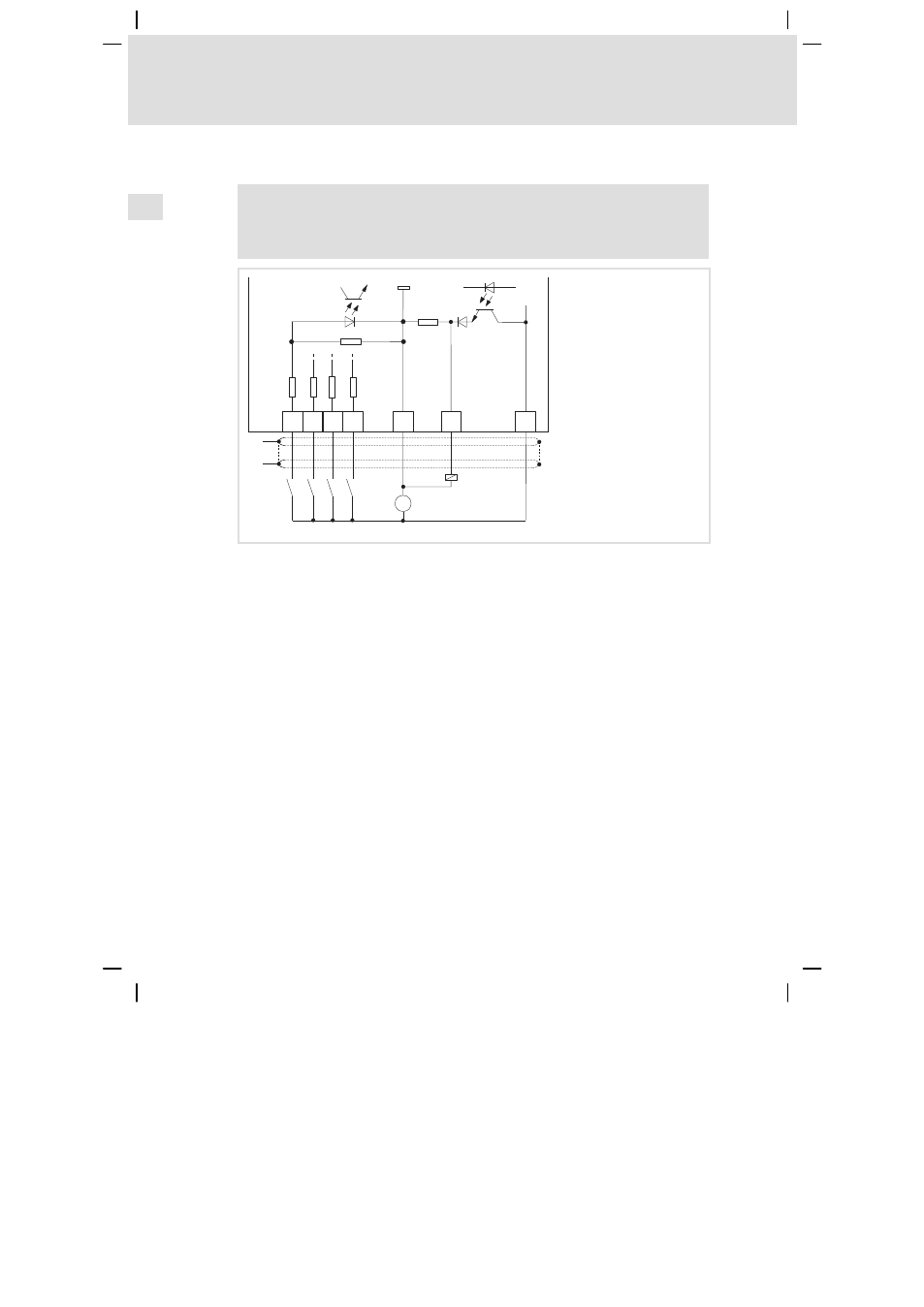

Fig. 5−7 Digital inputs and outputs at X6
" HF−shield termination by large−surface connection to functional earth (see
Mounting Instructions for ECSZS000X0B shield mounting kit)
