Electrical installation
Control terminals
5
l
111 EDKCSCX064 DE/EN/FR 4.0
Shield connection of control cables and signal cables
The plate on the front of the device serves as the mounting place (two threaded
holes M4) for the shield connection of the signal cables. The screws used may
extend into the inside of the device by up to 10 mm. For optimum contact of the
shield connection, use the wire clamps from the ECSZS000X0B shield mounting
kit.
L1 L2 L3 PE
X21
+UG +UG +UG -UG -UG -UG PE PE PE
X22 X23
+UG BR1 BR0
T1 T2
X6
DI1 DI2 DO1 D24 +24V GND DO1 DI1
X6
DI2 DI3 DI4 AI+ AI- AG
+24V GND S24 SO SI1 SI2 B+ B-
+
-
=
24 VDC
+24 VDC
GND
U
F 1,6 A
3
4
+
-
=
"
"
"
"
"
"
"
0
2
1
ECSxE... ECSxS/P/M/A...
ECSXA013

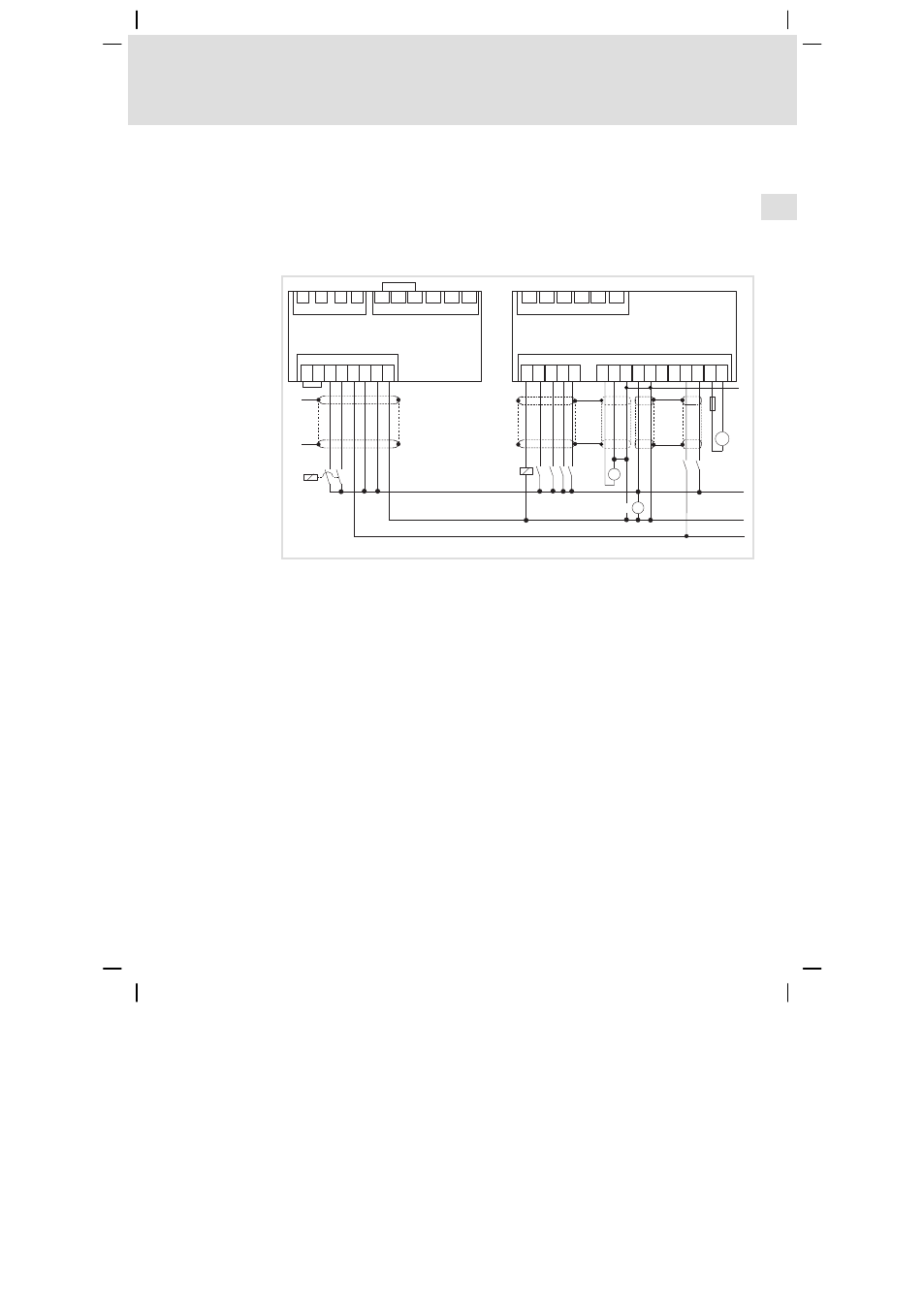

Fig. 5−6 Interconnection: Control signals with internal brake resistor
" HF−shield termination by large surface connection to functional earth (see
mounting instructions for shield mounting ECSZS000X0B)
0 / 1 Contactor relay
2 Voltage supply of motor holding brake 23 ... 30 V DC, max. 1.5 A
3 Safe torque off (formerly: "Safe standstill")
4 Controller enable/inhibit
