6

Electrical installation

Important notes

EDK84AZESRx DE/EN/FR/ES/IT 2.0

58

l

H1_E_INST−−−−(DUMMYSEITEVOR)−−−

)

Note!

When the filter types E84AZESRxxxxLL or E84AZESRxxxxSD are used, special
measures are required:

Remove the contact screws for interference suppression on the supply side and
the motor side of the standard device to ensure the features of the standard
device/filter combination.

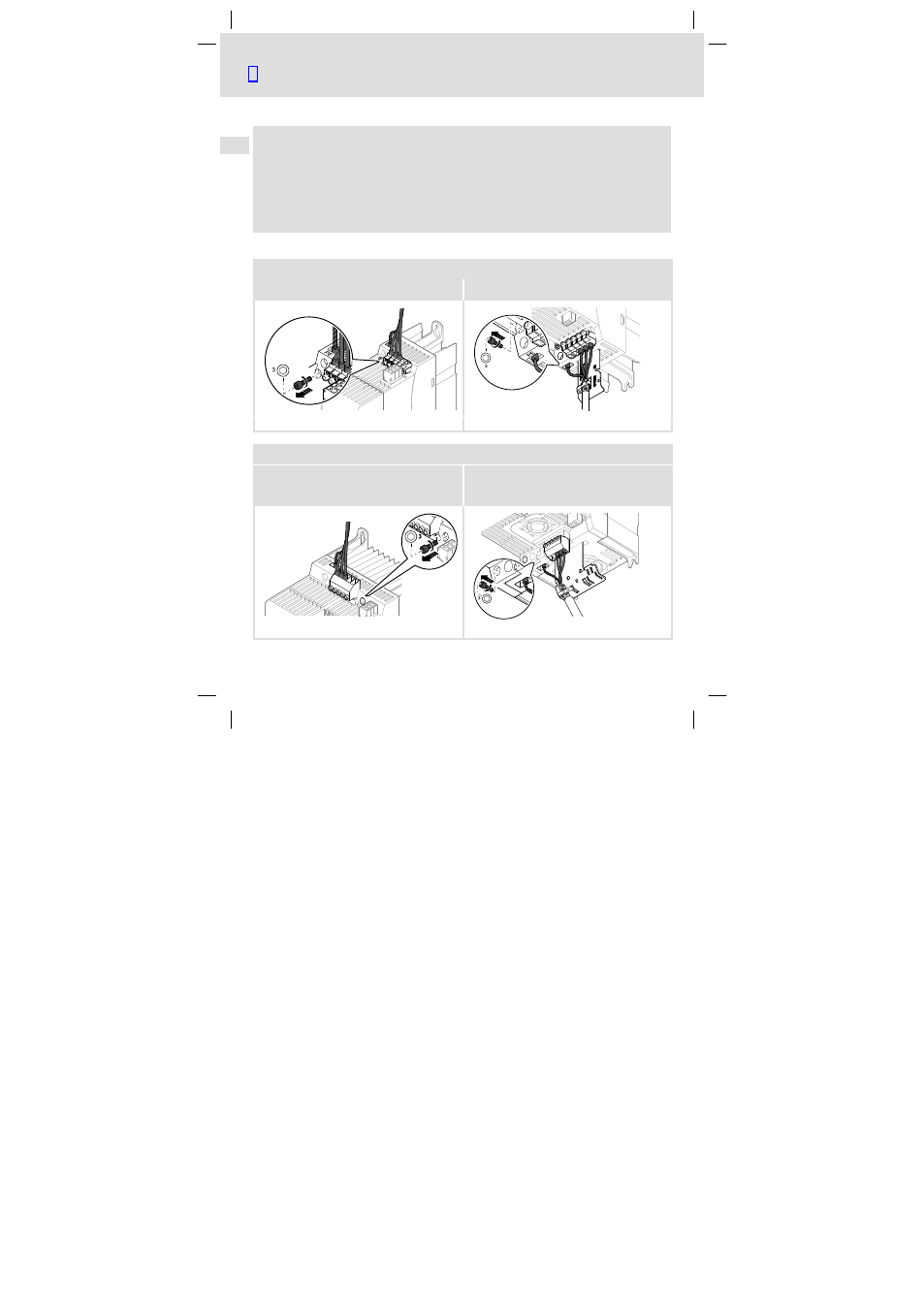

How to remove the contact screw:

Device size GG1 − GG3

supply side

motor side

;;

;;

;;

;;

E84AZESR006

E84AZESR014

Device size GG4 − GG5

supply side

motor side

(except with E84AZESR1534SD)

E84AZESR055

E84AZESR060
