Depending on the cooling blocks (“coolers”) in your Koolance system and nozzle
sizes (1/4”, 3/8”, etc.), they may be connected in series, parallel, or a mixture of both
for best performance. Recommended confi gurations are illustrated below.
If you are comfortable experimenting with different tubing setups, there may be
more optimal confi gurations for your particular system.
NOTE: For simplicity, tubing ID (internal diameter) will be listed in metric units.
Please use these approximate conversions for emperical sizes:

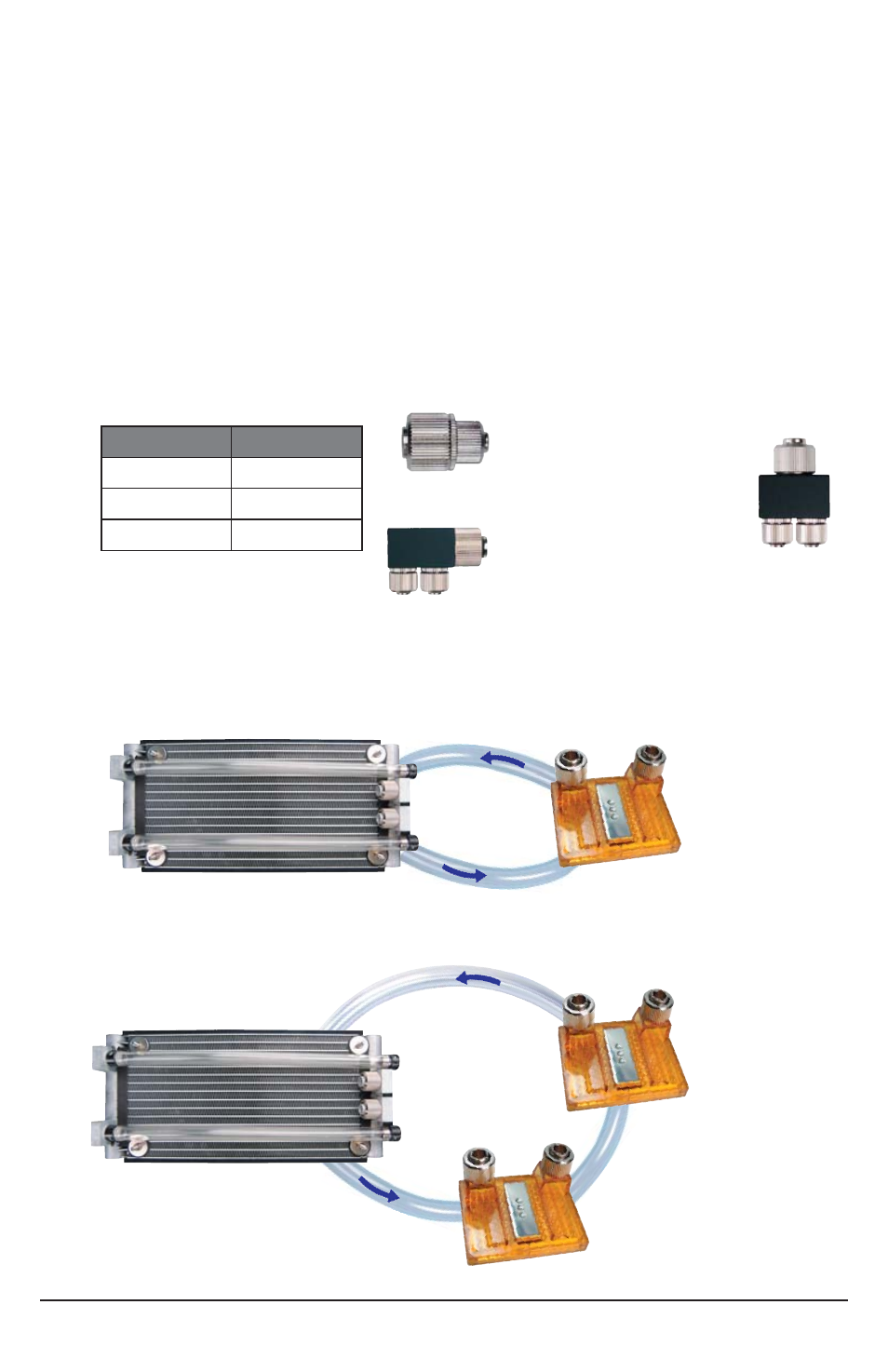

Cooler & Tubing Confi guration
Series Systems
For systems with only CPU coolers, a simple series loop will provide the best
performance.
Metric Emperical
6 mm 1/4 in.
10 mm 3/8 in.
13 mm 1/2 in.
Hose Adapter
“Y” Hose Splitter
Connecting PC3-700 Systems
10
10
Koolance
CPU-300-V10
PC3-700 Radiator
10
Koolance
CPU-300-V10
PC3-700 Radiator
10
10
Koolance
CPU-300-V10
“F” Hose Splitter
