ENGLISH
Designer/Production: Sandra ex 15612
Client Contact: Chris Trott, ex 13267
Client Sign off:
Project Name: MKT121707 -ET300- Instructions-139578TART
Product: ET300
Producr number: 139578
Date: 2/23/10
OPTIONaL aCCESSORIES
ET300
Instruction Manual
GENERaL SPECIFICaTIONS
•
Operating Voltage:
90 ~ 120V AC
•
Operating Frequency:
50 ~ 60Hz
•
Tracking Distance:
Up to 1000 ft.
•
Operating Temperature:
0°C (32°F) to 40°C (104°F)
•
Relative Humidity:
50%
•
altitude:
< 2000m
•
Environment:
For indoor use only
•
Power:
9 volt alkaline battery
•
auto Power Off:
Approximately 4 minutes
•
Transmitter Dimensions:
2.8" x 1.9" x 1.2"
•
Receiver Dimensions:
6.0" x 2.0" x 0.9"
•
Transmitter Weight:
1.6 oz.
•
Receiver Weight:
3.2 oz.
•
Sensitivity:
Indication at 4mm (0.16")
distance from a wire carrying 120 V AC.
•
Safety Rating:
UL listed
SaFETy PRECaUTIONS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Understand the risks of working around live voltage.
• Turn off power before inspecting, applying, or removing
the transmitter (when using the optional 'Leads Adapter').
• Exercise extreme caution around live, bare wires, especially
in an open breaker panel.
• Consult with an experienced electrician when necessary.
A
Light Fixture adapter:
Screw this adapter into an empty light socket.
Make sure the fixture is live. Plug in the
transmitter and follow the instructions
starting at step 4.

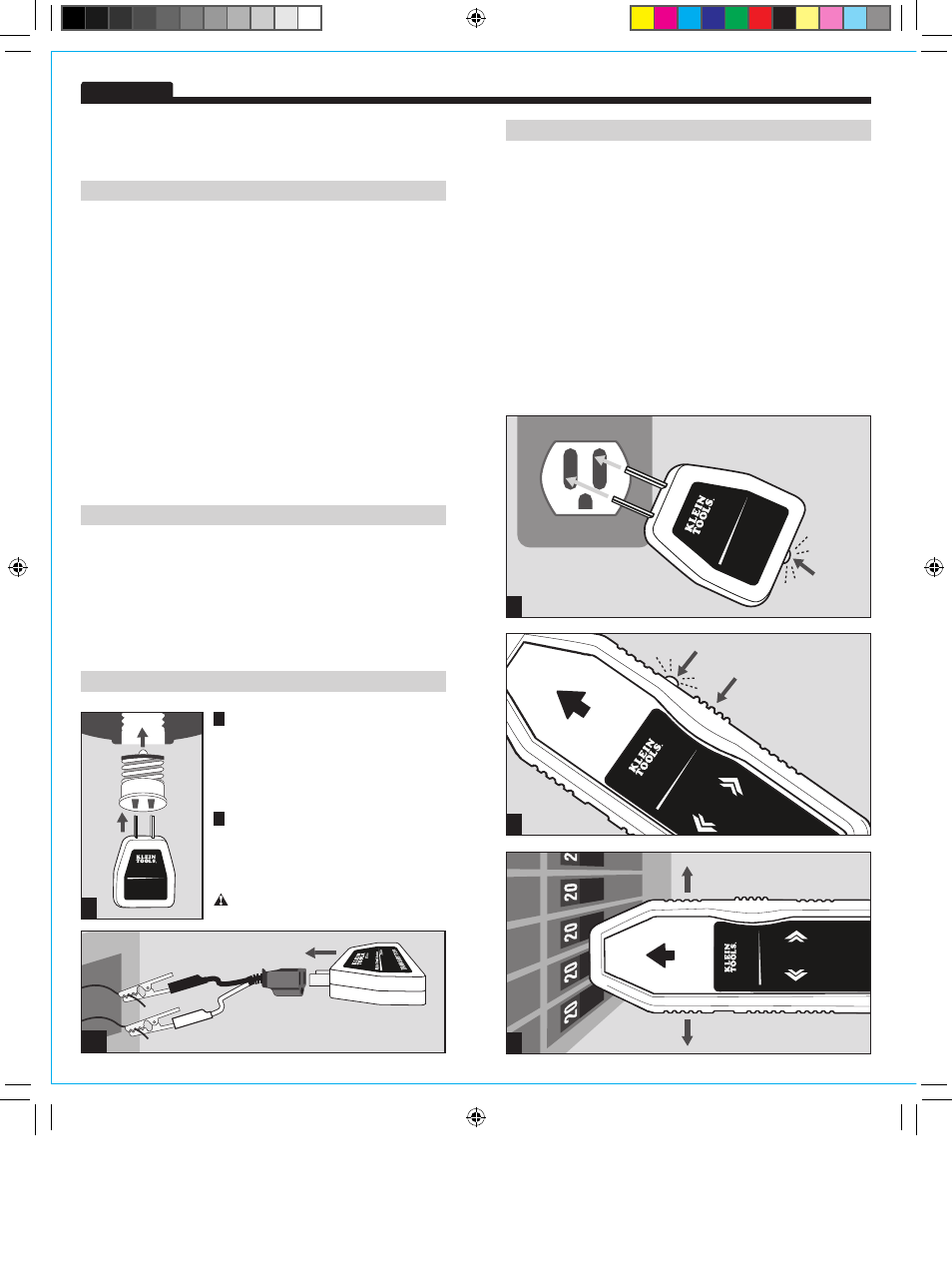

INSTRUCTIONS
1.
Identify the wall outlet or fixture for which the
breaker must be determined.
2.
Safely check that the outlet or fixture is live.
3.
Plug in the transmitter. Its LED will light if it is receiving power.
4.
Move to the breaker panel with the receiver.
5.
Turn on the receiver by pressing, but not holding, the power button.
You will hear a beep and see its LED lit.
6.
Position the receiver perpendicularly on the breakers
in the panel with the power button pointing up.
7.
Slowly scan all breakers in the panel once. Ignore any beeps
or indications, as the receiver is learning the panel.
8.
Scan all breakers a second time. This time, the receiver will beep
and illuminate the green arrow only at the correct breaker.
9.
Power off the receiver by pressing and holding the power button.
Return to the outlet or fixture and remove the transmitter.
B
Leads adapter:
Carefully attach leads to the correct wires.
Plug in transmitter to adapter. Follow the
instructions starting at step 4.
Exercise extreme caution around live wires.
Digital Circuit Breaker
Finder
ET300
Micro-Processor
Controlled
UP
7
Digital Circuit Breaker
Finder
ET300
Micro-Processor
Controlled
UP
When you press
down on the
Power Button
LED will light up
5
Digital Circuit Breaker
Finder
ET300
TRANSMITTER
Once plugged in, the LED
will light up when
socket is live
3
Digital Circuit Breaker
Finder
ET300
TRANSMITTER
A
B
