Goldwing
tailBlazer Application
GL1800 w/Spoiler LEDs
25LED-Dual
GL1800
200GW
GL1500 SE w/Spoiler LEDs
25LED
GL1500 200GW
GL1200 and older
100HD or 20W-D

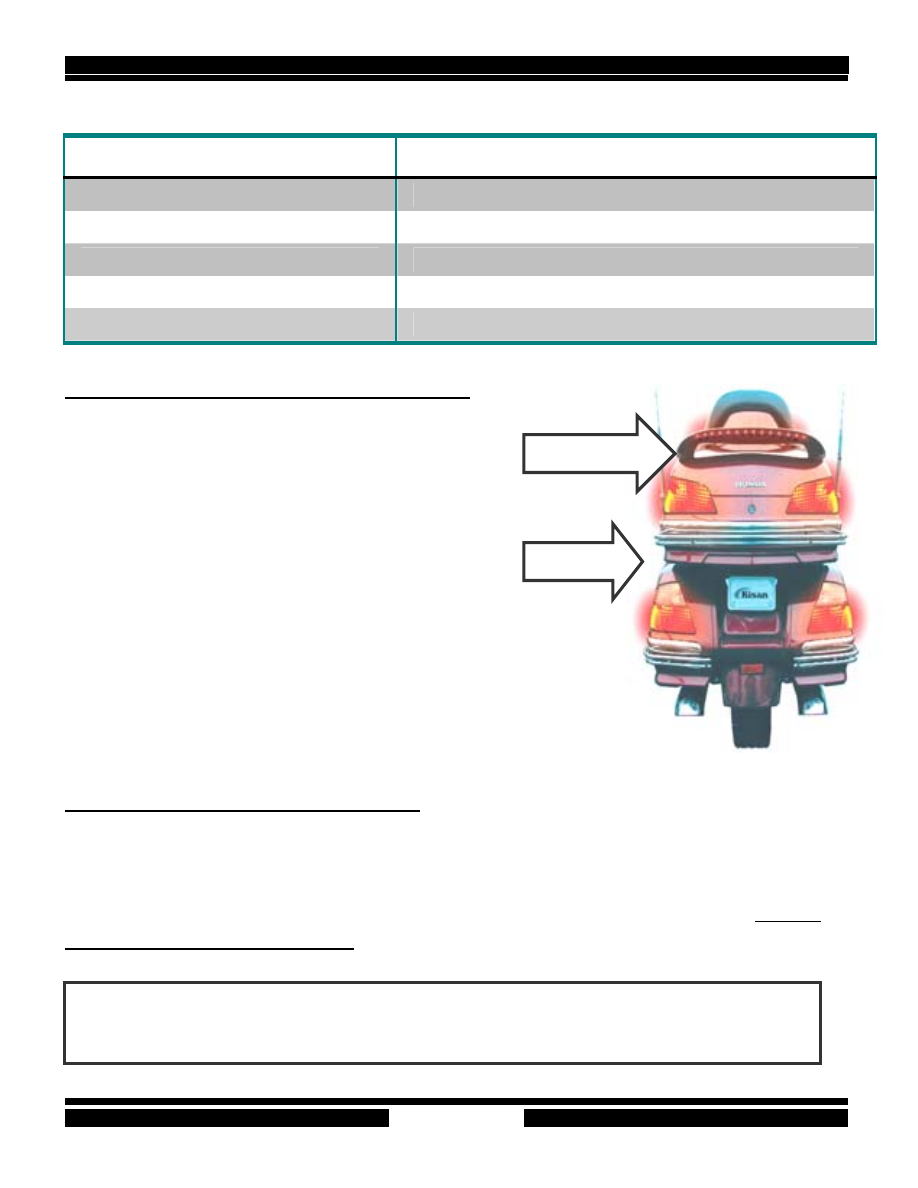

Goldwing 1800 INSTALLATION:
The new release 25LED-Dual with
embedded microprocessor now allows
programmable Running Light
intensities. The unit is designed for dual
inputs. It is a plug-in unit, which mounts
on the back of the trunk lid.
The plastic liner of the trunk lid has to be
removed to gain access to the 2-pin connectors
of the OEM Spoiler LEDs. The accessory input
wire MUST BE connected using the scotch-lock
connector supplied. The trunk latch-release (18-
pin) connector is a good place to tap into. The
Light Green wire with Black stripe is a suitable source.
200GW is also redesigned with embedded microprocessor. This unit is a
(1) wire splice, and it mounts under the seat. To splice-in, locate the 16-
pin connector – under the passenger backrest. The brake wire is Green
w/Red Stripe & Silver Dots.
25LED-Dual
200GW
Please Note! If you have a trailer with more than (2) bulbs, it will
exceed the rated wattage. Max Load is (6)x25W or 150W.
