25LED-LT
25LED-D unit is for a Dual Input operation. Accessory input of 12-volts is
required along with a separate input for the brake signal.

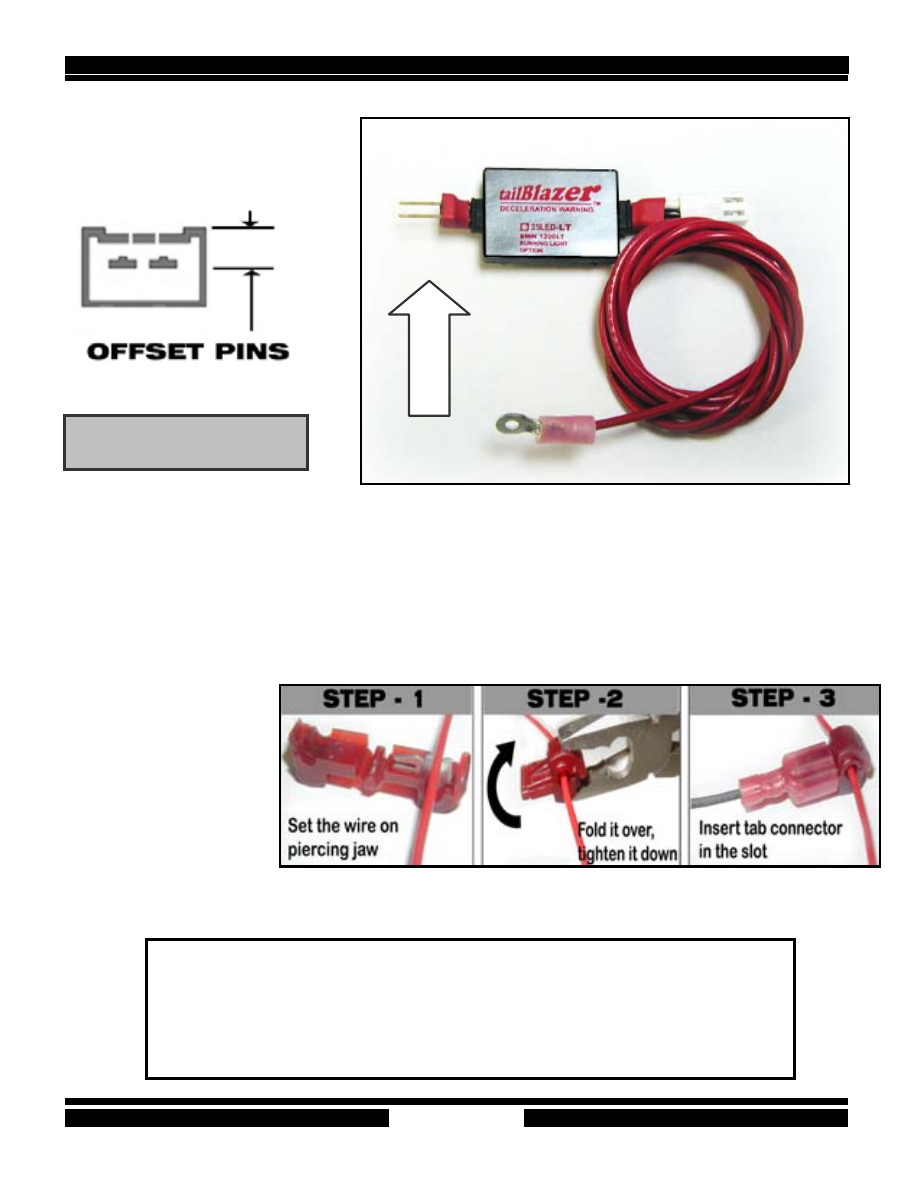

Polarized Input Plug
Output Pins are protected
Insulation
Displacement
Connector (IDC)
allows taping into
a wire without
cutting. It must be
squeezed tight
with pliers. The
slot on its side is used to slip the small ring eyelet in for connection.
Please Note! If the OUTPUT pins feel too lose, spread
them a little so that the connection is snug. For additional
measure you can also use the shrink tubing supplied. Use
a heat gun to shrink-fit the connection.
OUTP
UT
DIRECT PLUG-IN
