100HD
tailBlazer

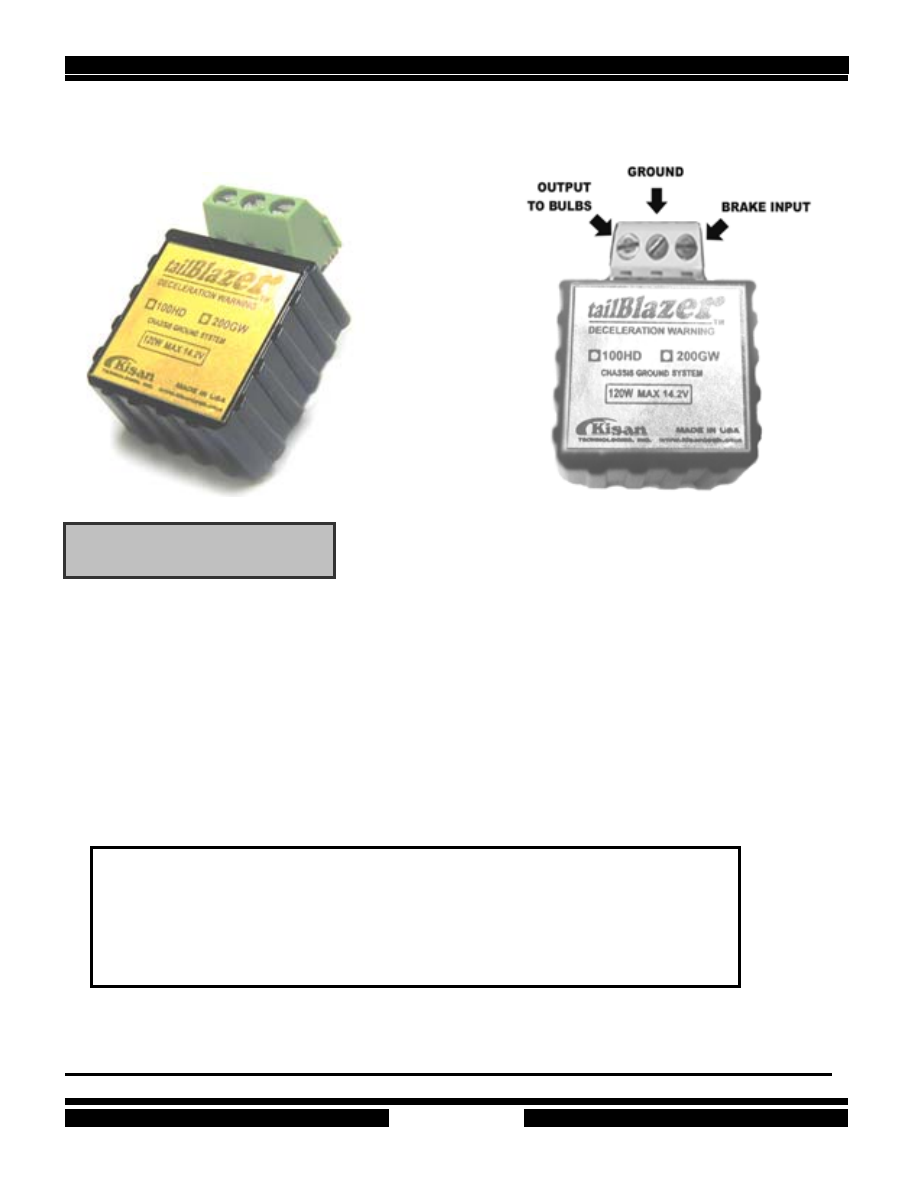

100HD has (3) screw-in terminals:
Input Terminal: for Brake Input
Output Terminal: for Output to the bulbs
Ground Terminal: for the Ground
Modulates the Brake bulb for a 4-sec Deceleration Warning
Trigger voltage: 10.9 volts
DO NOT EXCEED THE RATED WATTAGE.
Warranty coverage will be denied, if unit is damaged from overload.
(1) WIRE SPLICE-IN
100HD can handle up to (3) brake light bulbs, which are
typically 25 watts each. If you have additional lights or plan
to add them, we highly recommend our heavy-duty unit –
200GW.
