Kinze 3110 Mounted Planter Rev. 7/14 - Manual (Page 126)

M0244-01 Model 3110
6-26 9/12
TM
Lubrication and Maintenance

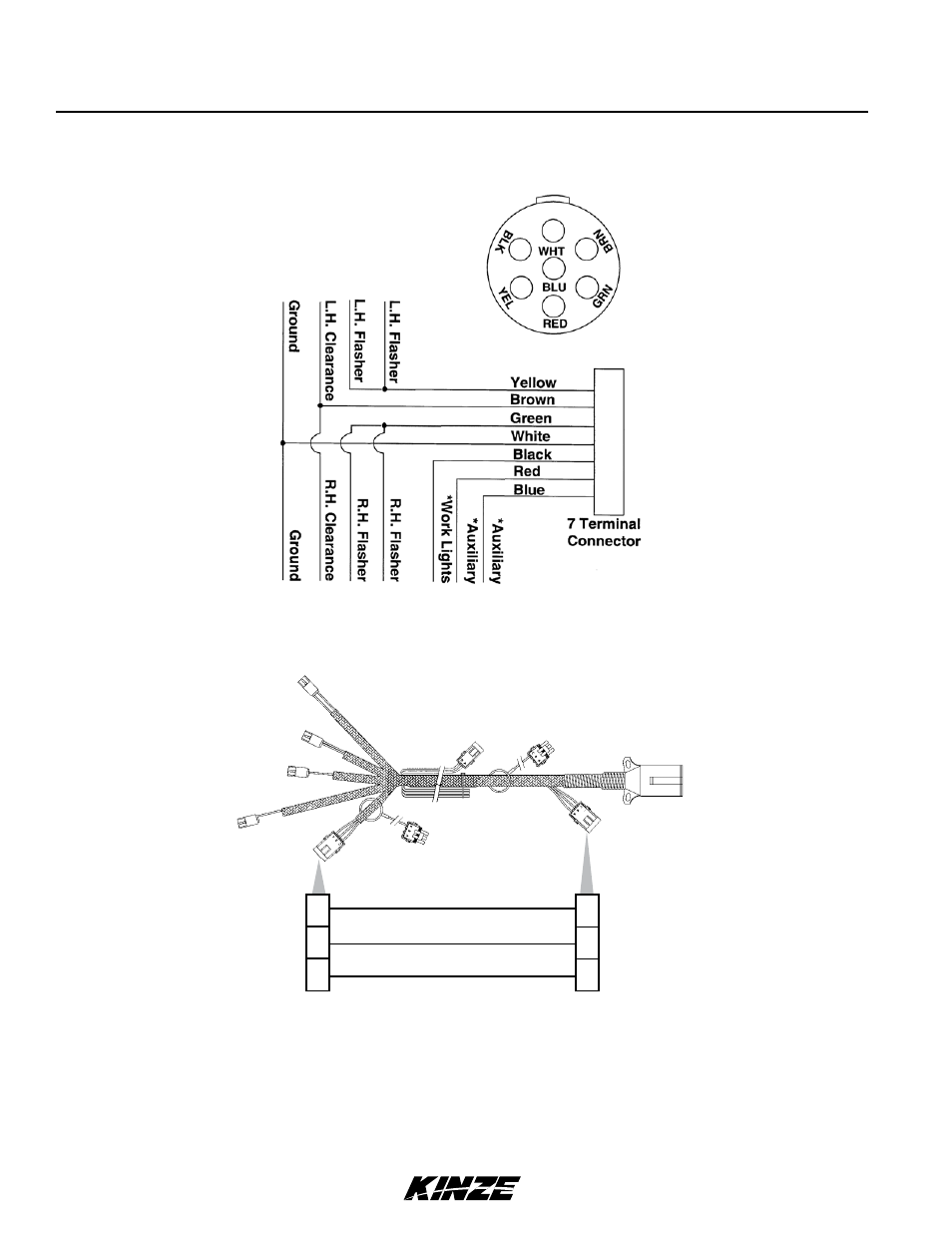

ELECTRICAL wIRING DIAGRAM FOR LIGHT PACKAGE
Light package meets ASABE Standards. Check with your tractor manufacturer for correct wiring harness connection to
lights on your tractor.
* Optional customer-supplied auxiliary lights and wires may be wired into existing plug terminals.
3-Pin Connector 3-Pin Connector
A
C
B
A
C
B
white MONITOR +12V
Black MONITOR GROUND
Green MONITOR DATA
