STEP 8

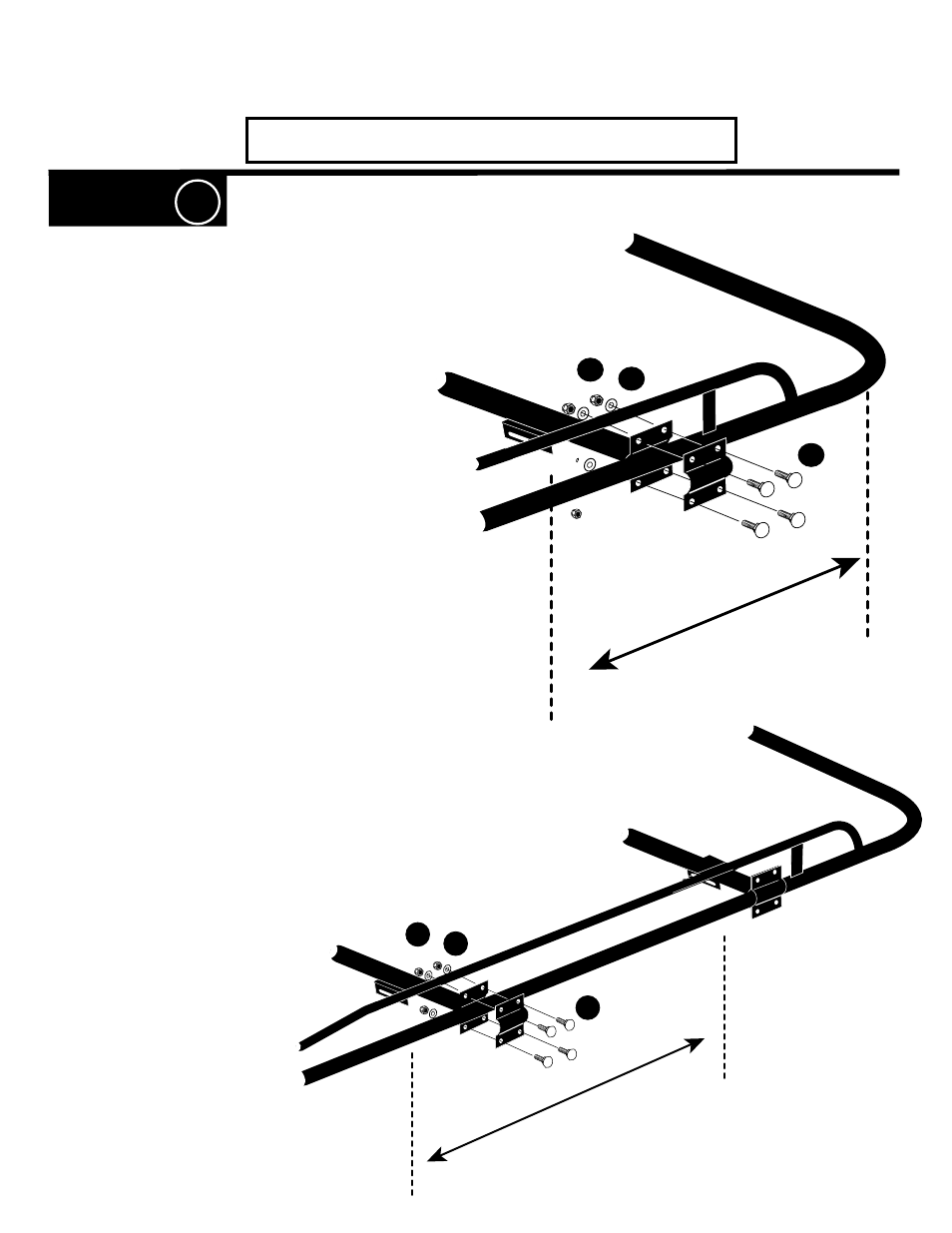

#1 = Position centerline of rear crossbar about
36” forward of centerline of rear U-bar. Securely
bolt clamp plates together with bolts E,
flat washers I, and lock nuts J.
#2 = Position centerline of front crossbar about 39”
forward of centerline of rear crossbar. Loosely bolt
clamp plates together with bolts E, flat washer I and
lock nuts J.
Ford Transit Connect
E
I
J
Rear Cross Bar
36”
E
I
J
39”
TMCS_3:1
