Kargo Master PRO III Ladder Rack for Ford TC (80070) - Manual (Page 5)

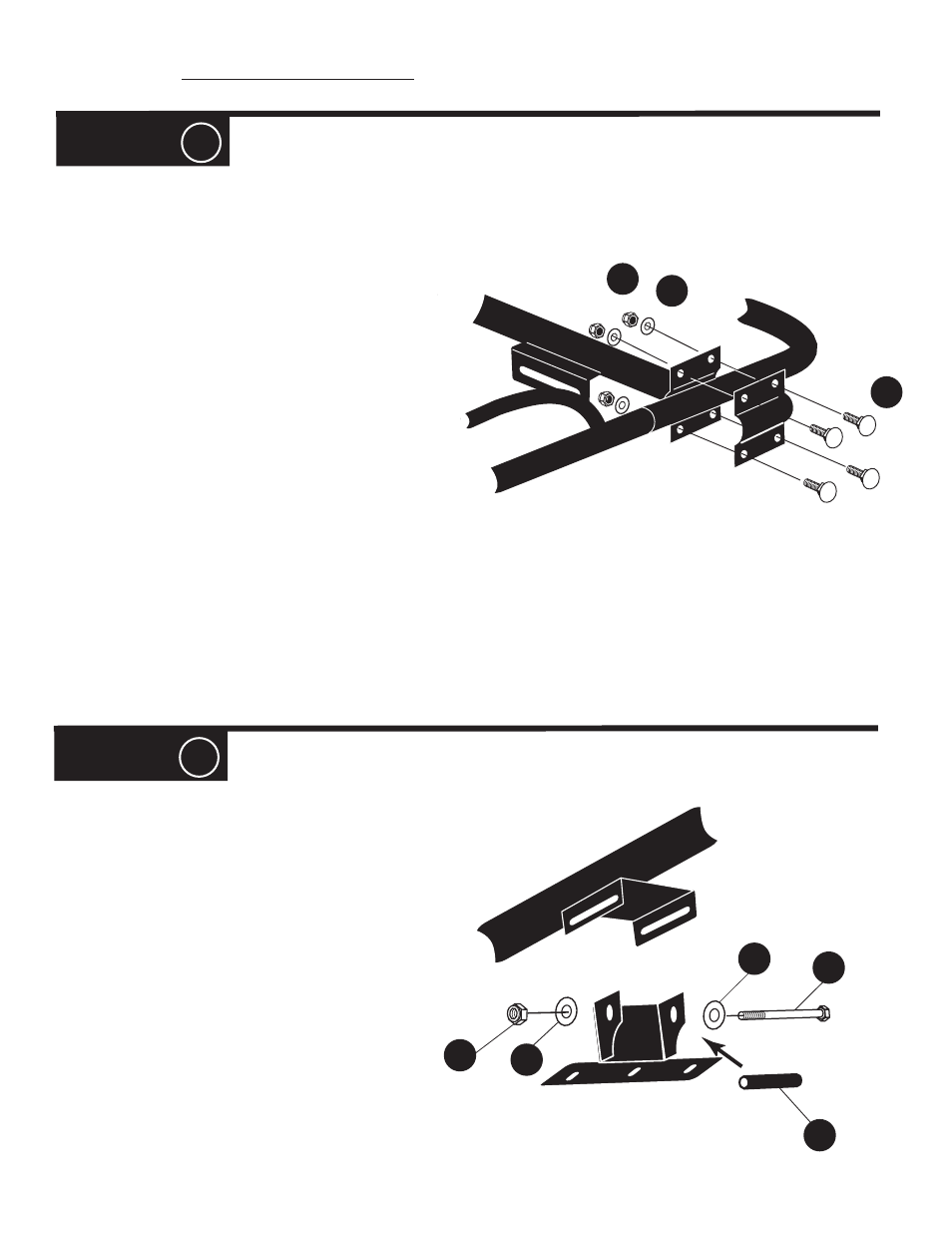

STEP 3
#2 = With the camper shell rear door fully opened,
measure the distance from the open rear door to the front
most point of the camper shell roof, where you will be
locating the front mounting plates. See diagram in STEP 5.
#1 = Position rear cross bar behind the ½” button head
bolt A that attaches the rear U bar to the side channel.
Loosely bolt clamp plates together with bolts E, washer I
and lock nuts J.
#1 = There are 8 mounting feet in your box. There are
4 identical feet (these are the taller ones with the three
holed flange on the bottom). These will be used for
Camper Shell installation. Find these now.
#3 = Place the spacer N inside the mounting
brackets. Loosely bolt the feet to slider brackets
using bolts K, washers L and lock nuts M.
#2 = Position the Camper Shell feet into the
slider brackets on the cross bars.
N
L
M
L
K
STEP 4
#3 = Position the front cross bar so that the distance from the
rear U bar to the front cross bar is as per the measurement
above. The objective is to locate the front foot as far forward on
the camper shell roof as possible, but at the same time making
sure that the opened camper shell rear door will not hit the rear
U bar. See diagram in STEP 5. Loosely bolt clamp plates
together with bolts E, washer I and lock nuts J.
E
I
J
TMCS_3:1
CAMPER SHELL ONLY - Transit Connect skip to STEP 8
**(Camper Shell ONLY)
