Data Sheet 902006
Page 6/12

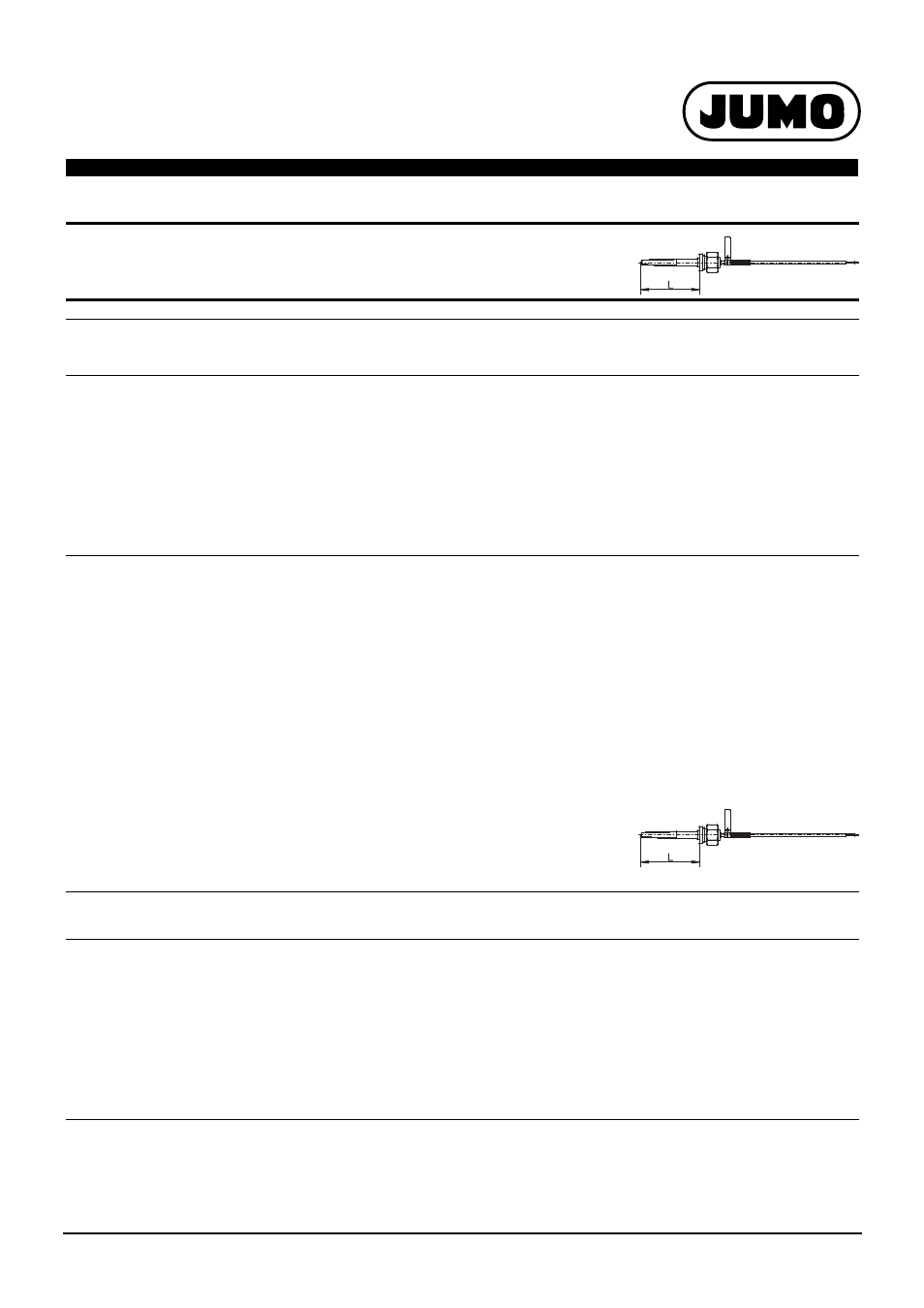

Screw-in RTD temperature probe
with weld-in sleeve and stainless steel braided
0.35 mm
2
connecting cable and anti-kink protection
Insertion
length
a
EL in mm
a
Insertion length of the RTD temperature probe
Length
L in mm
Temperature
range in °C
Type
up to February
28, 2013
1× Pt100
Type
as of March 01, 2013
Order code
Steel welding shoulder 15 Mo 3, material-no. 1.5415
Steel protection tube St 35.8, material-no. 1.0305
100
80
-170 to +480
90.280-F32
902006/40-226-1003-1-12-100-815/000
160
140
-170 to +480
90.280-F31
902006/40-226-1003-1-12-160-815/000
220
200
-170 to +480
90.280-F30
902006/40-226-1003-1-12-220-815/000
Operating media: water and oil
Operating pressure: max. 103 bar up to 100 °C, 30 bar up to 480 °C
Pos. 4
Versions only for connecting a
JUMO safetyM STB/STW Ex type 701155
Insertion
length
a
EL in mm
a
Insertion length of the RTD temperature probe
Length
L in mm
Temperature
range in °C
1× Pt100
Type
Order code
Steel welding shoulder 15 Mo 3, material-no. 1.5415
Steel protection tube St 35.8, material-no. 1.0305
100
80
-170 to +480
x
902006/40-226-1003-1-12-100-815/922
160
140
-170 to +480
x
902006/40-226-1003-1-12-160-815/922
220
200
-170 to +480
x
902006/40-226-1003-1-12-220-815/922
Operating media: water and oil
Operating pressure: max. 103 bar up to 100 °C, 30 bar up to 480 °C
Pos. 4
