Data Sheet 902006 Page 4/12

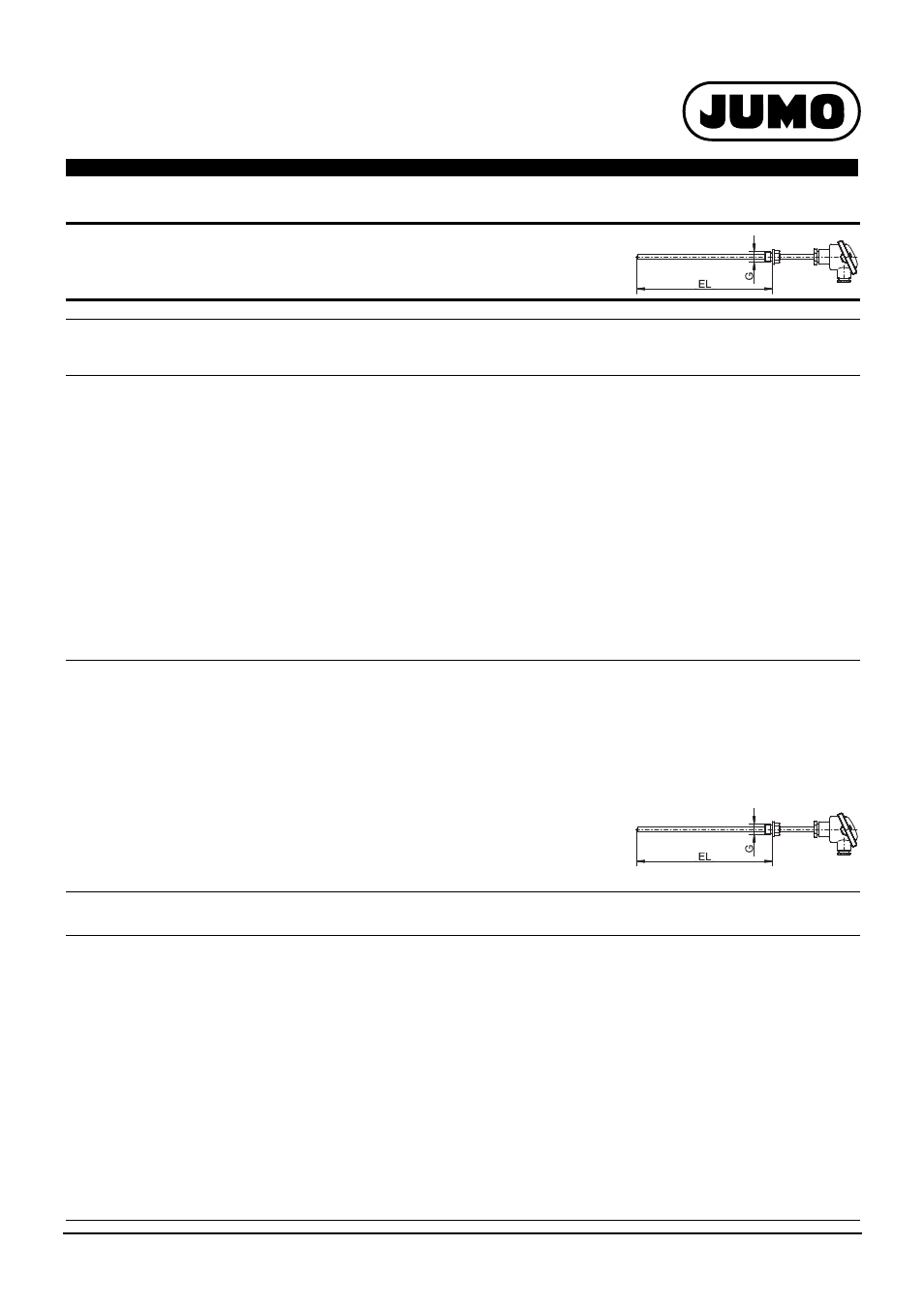

Screw-in RTD temperature probe
according to DIN 43765, form B
and terminal head according to DIN 43729, form B, M24 × 1.5
Insertion
length
EL in mm Thread
G in inches Temperature
range in °C Type
up to February 28,
2013
1× Pt100 Type
up to February 28,
2013
2× Pt100 Type
as of March 01, 2013
Order code
Steel protection tube St 35.8, material-no. 1.0305
250 G 1/2 -170 to +480 90.239 ● - 902006/10-226-1003-1-9-250-104/000 ●
250 G 1/2 -170 to +480 - 90D239 902006/10-226-2003-1-9-250-104/000
Stainless steel protection tube X 6 CrNiMoTi 17 12 2, material-no. 1.4571
100 G 1/2 -40 to +400 902006/10-402-1003 - 902006/10-402-1003-1-9-100-104/000
150 G 1/2 -40 to +400 x - 902006/10-402-1003-1-9-150-104/000
200 G 1/2 -40 to +400 x - 902006/10-402-1003-1-9-200-104/000
100 G 1/2 -40 to +400 - 902006/10-402-2003 902006/10-402-2003-1-9-100-104/000
150 G 1/2 -40 to +400 - x 902006/10-402-2003-1-9-150-104/000
200 G 1/2 -40 to +400 - x 902006/10-402-2003-1-9-200-104/000
Operating media: water and oil
Operating pressure: max. 35 bar up to 100 °C, 20 bar up to 400 °C, pressureless as of 400 °C
● Available from stock. Pos. 2
Versions only for connecting a
JUMO safetyM STB/STW Ex type 701155
Insertion
length
EL in mm Thread
G in inches Temperature
range in °C 1× Pt100 2× Pt100 Type
Order code
Steel protection tube St 35.8, material-no. 1.0305
250 G 1/2 -170 to +480 x - 902006/10-226-1003-1-9-250-104/922
250 G 1/2 -170 to +480 - x 902006/10-226-2003-1-9-250-104/922
Stainless steel protection tube X 6 CrNiMoTi 17 12 2, material-no. 1.4571
100 G 1/2 -40 to +400 x - 902006/10-402-1003-1-9-100-104/922
150 G 1/2 -40 to +400 x - 902006/10-402-1003-1-9-150-104/922
200 G 1/2 -40 to +400 x - 902006/10-402-1003-1-9-200-104/922
100 G 1/2 -40 to +400 - x 902006/10-402-2003-1-9-100-104/922
150 G 1/2 -40 to +400 - x 902006/10-402-2003-1-9-150-104/922
200 G 1/2 -40 to +400 - x 902006/10-402-2003-1-9-200-104/922
Operating media: water and oil
Operating pressure: max. 35 bar up to 100 °C, 20 bar up to 400 °C, pressureless as of 400 °C
Pos. 2
