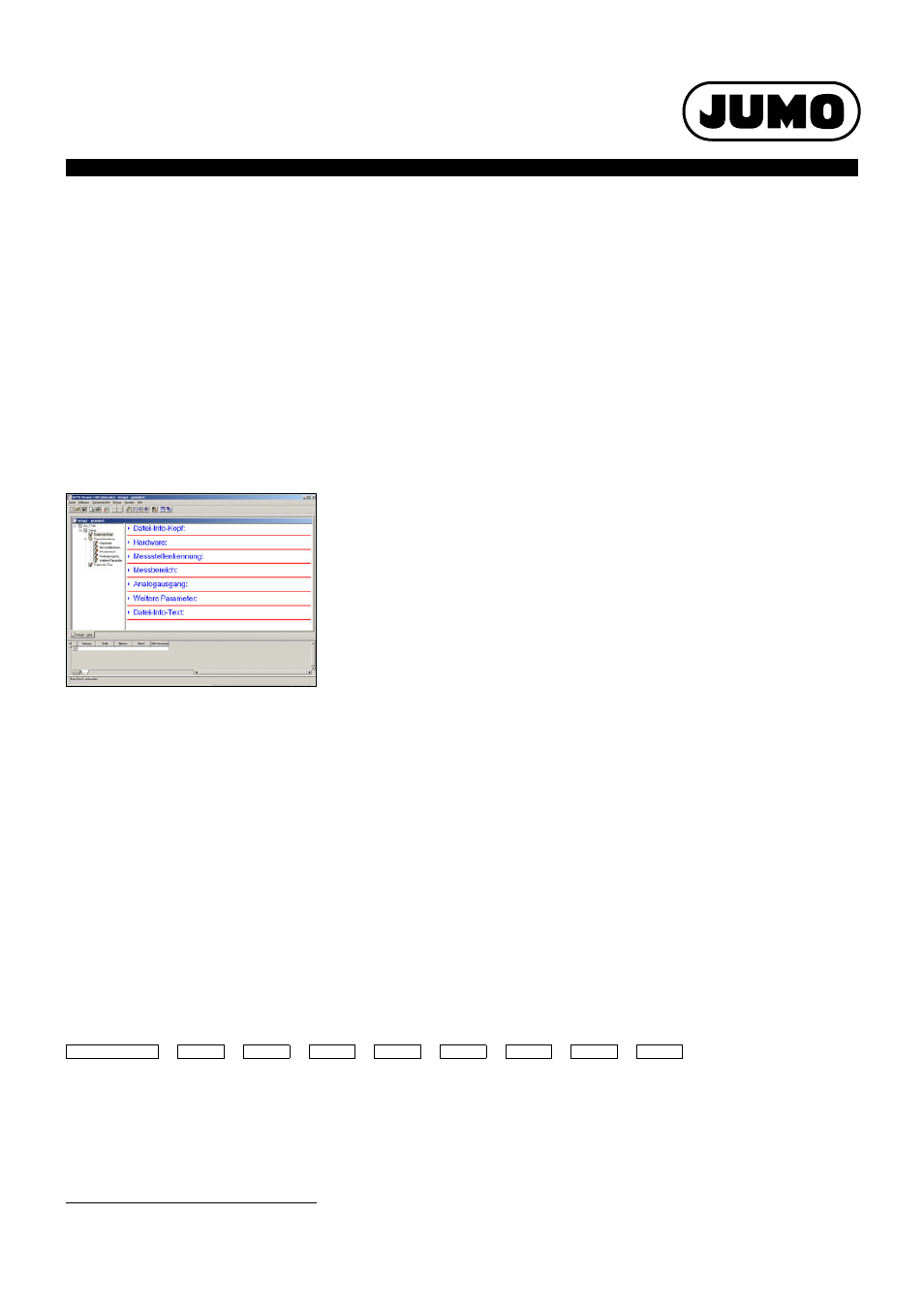

Setup program
The setup program is used for configuring
the programmable 2-wire transmitter with the
aid of a PC.
This requires:
- configuration cable with plug connector,
socket and Western plug
- PVC connecting cable, length 2 meters
- PC interface with USB/TTL converter
and USB cable
(see accessories for programmable 2-wire
transmitter)
In order to configure the 2-wire transmitter, it
has to be connected to a voltage supply.
If no power supply or supply isolator is
available, it can also be configured by using a
9 V battery as a power source.
Configurable parameters
Measuring point ID
- TAG number
Range configurable in °C/°F
- Offset
- Range start
- Range end
Analog output
- Reversed output
- Signal for probe break/short-circuit
Additional parameters
- Filter time constant
- Unit
Hardware and software
requirements
The following hardware and software
requirements have to be met for installing
and operating the software:
Minimum configuration
- Intel Pentium
1
III
- Microsoft Windows
2
2000 or XP
- 256 MB main memory
- CD-ROM drive
- mouse
- free USB interface
- 120 MB available on hard disk
Recommended configuration
- Intel Pentium 4
- Windows XP
- 512 MB main memory
Notes for Windows 2000 or XP
If more than one user is administered by the
computer, then the user who is logged in
must be the one who will subsequently be
working with the program.
The user must have administrator rights
during the installation of the software. After
installation, the rights can be restricted again.
If this is disregarded, it is not possible to
ensure a correct and complete installation.
Standard accessories
1 Operating Instructions B 902815.0
Accessories for programmable 2-wire transmitter
Part No.
Setup program on CD-ROM, multilingual
90/00485016
Configuration cable, 4-pole with plug and socket M12 × 1 and Western connector RJ-45
90/00484692
PVC connecting cable, 4-pole with M12 × 1 socket, length 2000 mm
90/00404585
PC interface with USB/TTL converter and USB cable
70/00456352
Power supply units: 1- way and 4-way (data sheet 707500)
-
Isolating amplifier and supply isolator for electrical isolation of standard signals
and voltage supply for 2-wire transmitter (data sheet 707510)
-
1
Intel and Pentium are registered trademarks of Intel Corporation.
2
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Stock versions
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
Part No.
-
-
-
-
-
-
-
/
902815/10
-
380
-
1011
-
1
-
6
-
100
-
104
-
24
/
000
90/00508463
902815/10
-
380
-
1011
-
3
-
6
-
50
-
104
-
24
/
000
90/00516241
902815/10
-
380
-
1011
-
3
-
6
-
150
-
104
-
24
/
000
90/00516245
902815/10
-
380
-
1011
-
3
-
6
-
200
-
104
-
24
/
000
90/00516246
902815/20
-
370
-
1013
-
2
-
6
-
50
-
104
-
24
/
000
90/00508279
902815/20
-
370
-
1013
-
2
-
6
-
100
-
380
-
24
/
000
90/00513650
902815/20
-
370
-
1013
-
2
-
6
-
100
-
104
-
24
/
000
90/00491506
902815/20
-
370
-
1013
-
2
-
6
-
150
-
000
-
24
/
000
90/00506630
902815/20
-
370
-
1013
-
2
-
6
-
200
-
104
-
24
/
000
90/00503113
