Page 3
2011-10-10/00477217
Data Sheet 902815
Page 3/7
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address:
36035 Fulda, Germany
Phone:
+49 661 6003-0
Fax:
+49 661 6003-607
E-mail:
Internet:
www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail:
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866
1-800-554-JUMO
Fax:
315-697-5867
E-mail:
Internet: www.jumo.us

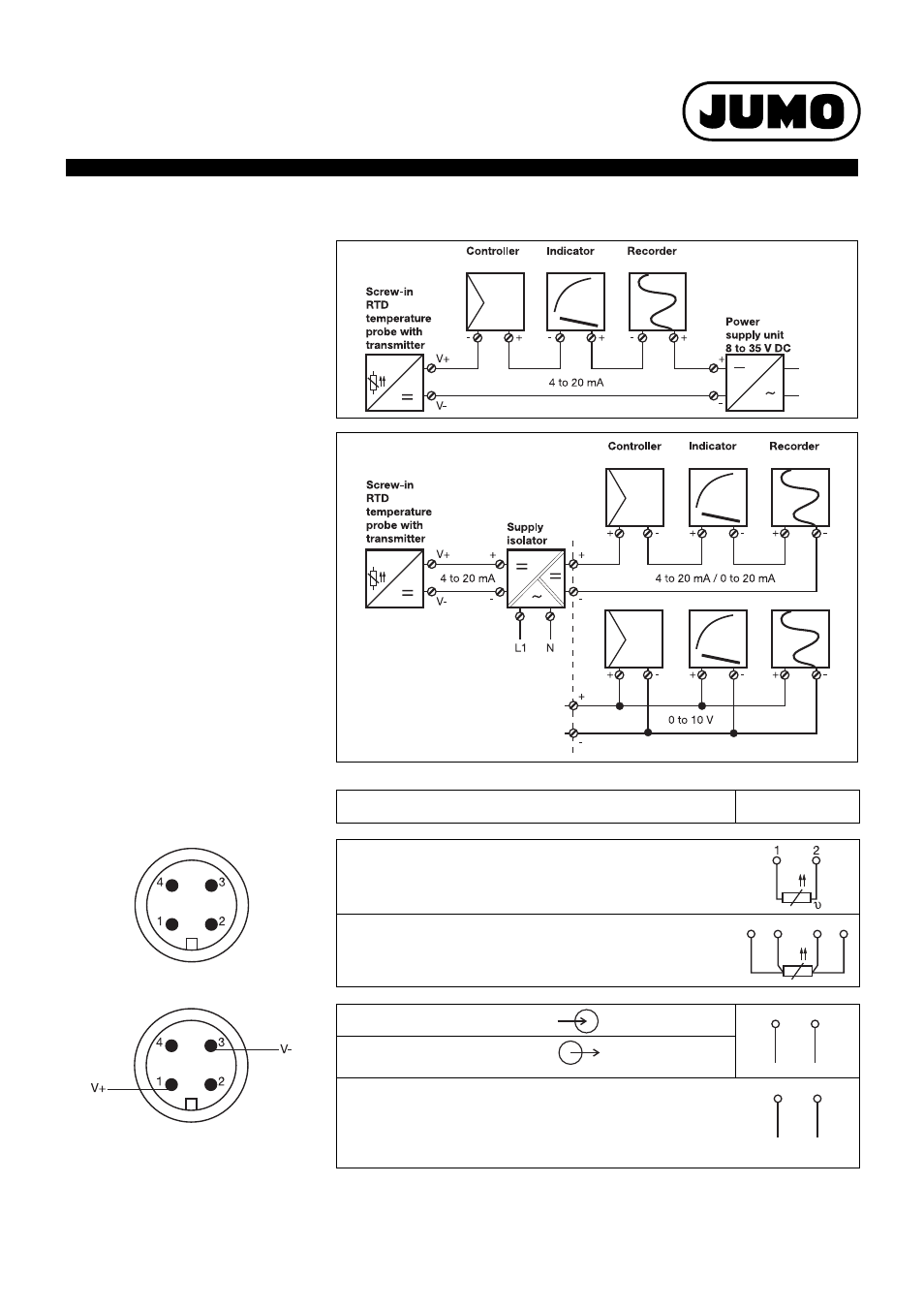

Connection example with transmitter
Connection example with power supply unit
Connection example with supply isolator
Connection diagram
Machine connector M12 × 1, 4-pole
according to IEC 60947-5-2
Electrical connection
Terminal
assignments
Basic type 902815/10... without transmitter
Screw-in RTD temperature probe
in 2-wire circuit
Screw-in RTD temperature probe
in 4-wire circuit
Caution:
do not make any connection to pins 2 and 4!
Basic type 902815/20... and 902815/21... with programmable transmitter
Voltage supply
8 to 35 V DC
Current output
4 to 20 mA
Setup communication
via special configuration cable
(only for configuration – not for continuous operation)
1
2
υ
4
3
+
-
1
3
V+
V-
2
4
