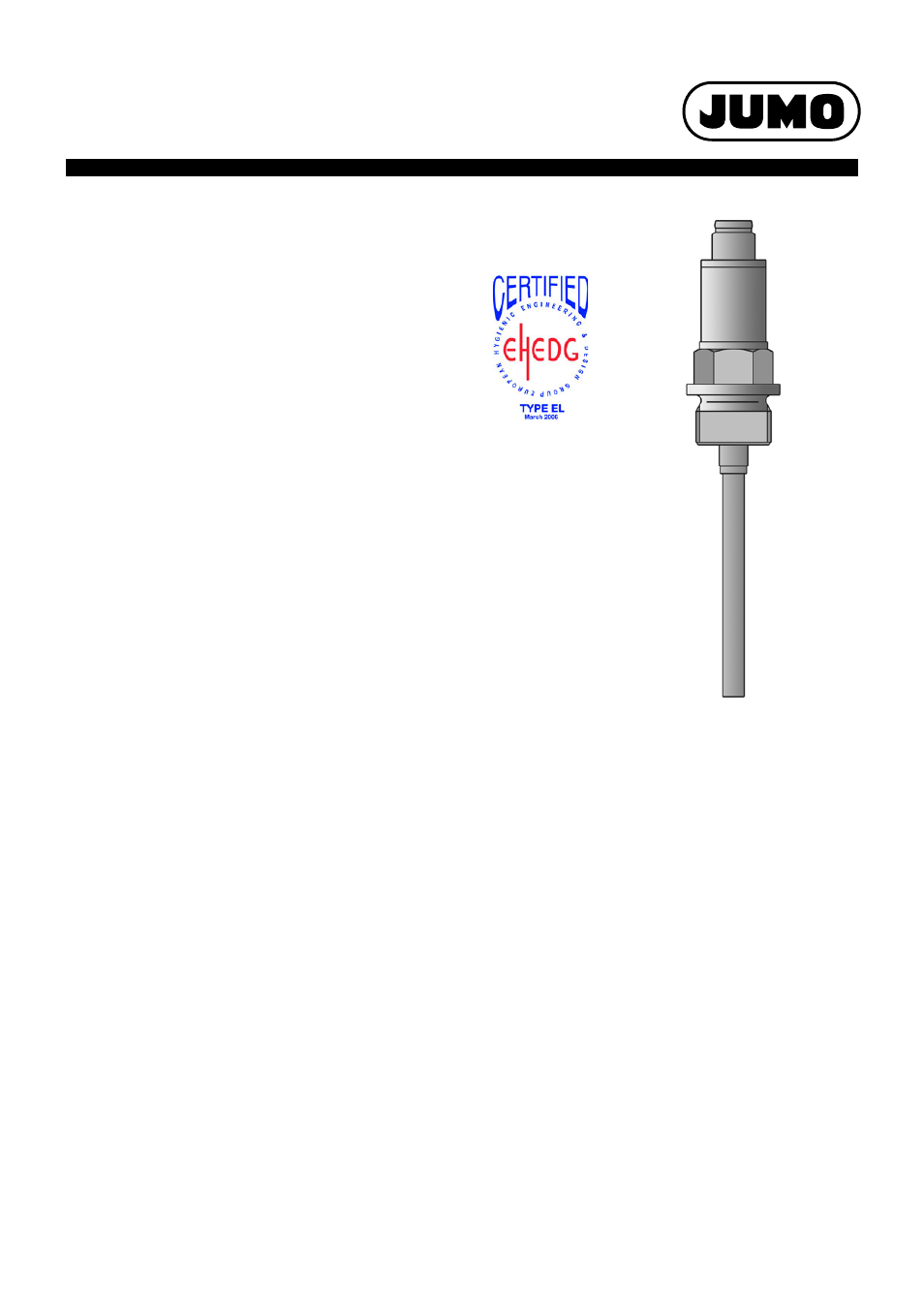

JUMO Dtrans T100
Screw-in RTD temperature probe
with/without transmitter
■ for temperatures from -50 to +260 °C
■ EHEDG certification
■ complies with ROHS for EU and China
■ configuration by setup program via USB interface
■ M12 × 1 plug connection; IP67 protection according to EN 60529
with machine connector plugged in
■ Product with an integrated transmitter is not intended for export to the USA!
The screw-in RTD temperature probe, which has a compact design, consists of a sheath with
an integrated temperature sensor, a process connection, and an attached housing for the
transmitter electronics. The built-in programmable 2-wire transmitter converts the resistance
value into a current signal.
The screw-in RTD temperature probe and the programmable 2-wire transmitter are used for
measuring temperatures from -50 to +150 °C (-58 to +302 °F) or to 260 °C (500 °F) with an
extension piece (without the transmitter: -50 to +200 °C or -58 to +392 °F).
The range, fine calibration or measuring circuit monitoring etc. can all be configured with the
help of a setup program.
The 4 to 20 mA or (reversed) 20 to 4 mA output signal that is provided is linear with
temperature. The instrument is designed for industrial applications and complies with the
European standards for assuring electromagnetic compatibility (EMC).
The transmitter must be protected from temperatures above 85 °C !
Technical data
Electrical connection
machine connector M12 × 1, 4-pole according to IEC 60947-5-2; FIXCON-capable
Process connection
G 3/8 (3/8" pipe) thread
G 1/2 (1/2" pipe) thread
G 1/2 (1/2" pipe) thread with CIP-compliant conical seal, with EHEDG certification
taper nipple with cap nut (milk pipe screw fitting)
clamping nipple according to DIN 32676
ball weld-in socket with clamping thread
weld-in socket with CIP-compliant conical seal
Varivent connections with EHEDG certification
ball weld-in socket
JUMO PEKA with EHEDG certification
Sheath
stainless steel 316 L (Mat. Ref. 1.4404/1.4435);
stainless steel 316 Ti (Mat. Ref. 1.4571) (on request)
Protection type
IP67 protection according to EN 60529, with the machine connector plugged in
Response time
water 0.4 m/s sheath standard t
0.5
= 5 s; t
0.9
= 12 s
water 0.4 m/s sheath stepped t
0.5
= 2 s; t
0.9
= 5 s
air 3.0 m/s sheath standard t
0.5
= 40 s; t
0.9
= 110 s
air 3.0 m/s sheath stepped t
0.5
= 21 s; t
0.9
= 70 s
Measuring insert
without transmitter:
Pt100 or Pt1000 temperature sensor, EN 60751, Class A, B or AA (1/3 Class B),
2- or 4-wire circuit
with programmable transmitter:
Pt1000 temperature sensor, EN 60751, Class A,
4-wire circuit
