Range organization

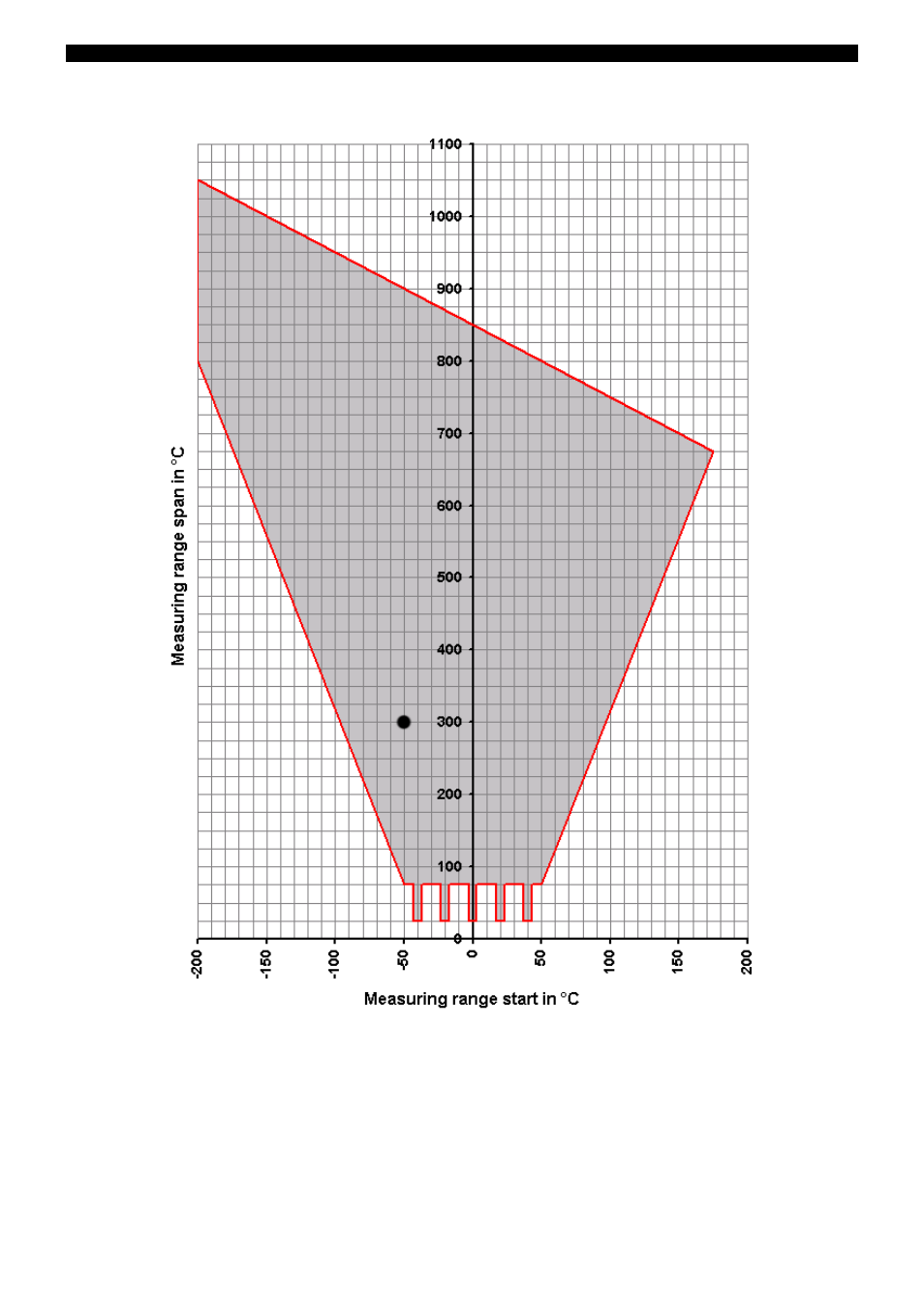

All the possible range-start values in relation to the range span are contained within the gray area.
range span = range end – range start
Example: range start = -50°C, range end = 250°C
range span = range end – range start = 250°C - (-50°C) = 300°C
Caution: When selecting the range start, make sure it lies within the gray area.
Please note: for spans smaller than 75°C, the only permissible start values are:
-40°C, -20°C, 0°C, +20°C and +40°C.
