Operating data
Approvals/approval marks

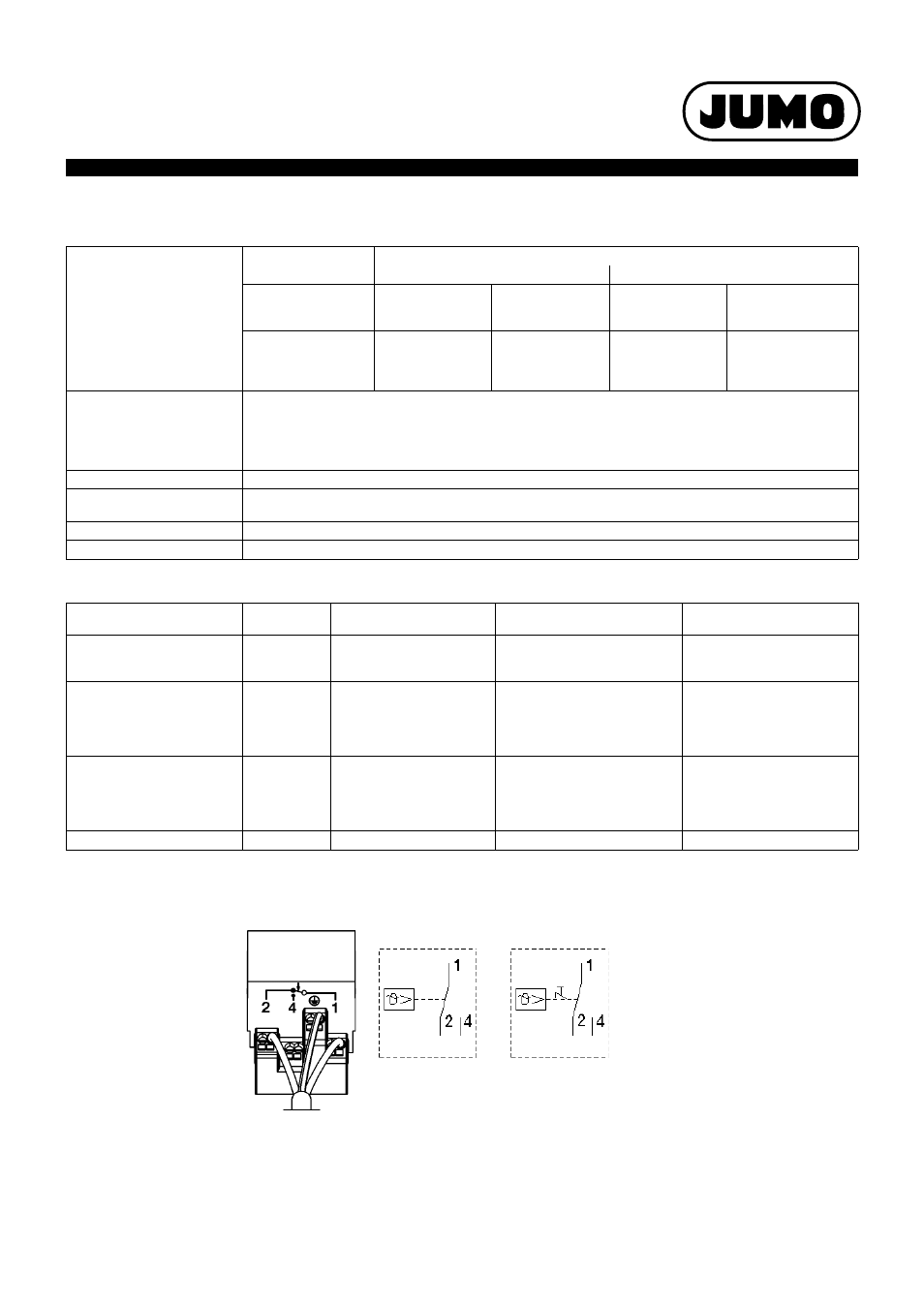

Wiring diagrams
Switching point accuracy TR, TW STW, STB with a setting range of:
+20 °C to +80 °C +70 °C to +130 °C
Switching differential
2.5% In the
"first half"
(+20 °C to +50 °C) In the
"second half"
(+50 °C to +80 °C) In the
"first half"
(+70 °C to +100 °C) In the
"second half"
(+100 °C to +130 °C)
In the upper third of
the scale
± 3 %,
at scale
beginning
± 6 %
+0/-8 K +0/-5 K +0/-12 K +0/-5 K
Temperature compensation When the ambient temperature on the switching head and the capillary deviates — from the calibration ambi-
ent temperature of +22 °C — a switching point offset of approx. -0.1 K/K occurs
(switching point change referring to the ambient temperature change, measured at limit value +120 °C perma-
nently set and capillary length 2,000 mm).
This switching point offset is reduced to a minimum due to the standard temperature compensation.
Limit value temperatures For transport and storage: -30 °C to +50 °C
During use: max. +80 °C, for TZ 061 UL approval max. +65 °C
(type 7 max. 55 °C; type 6+8 max. +50 °C)
For pipe mounting: max. pipe temperature +120 °C
Rated position According to DIN 16257, rated position 0 to rated position 90 (different rated positions upon request)
Approval marks Inspection
authority Certificates/certification
number Inspection basis Valid for
DIN DIN CERTCO TR1191, TW1192,
STW(STB)1193, STB1194,
ATW1218 DIN EN 14597 JUMO heatTHERM-AT/-DR
according to type
DIN TÜV Süd
(German
Technical
Inspection
Agency)
DIN EN ISO 13849-1 B
10d
= 250,000* JUMO heatTHERM-AT/-DR
DGRL TÜV Süd
(German
Technical
Inspection
Agency)
IS-TAF-MUC 07113377017 Pressure Equipment Directive
97/23/EC STW and STB
UL UL Germany E 66358 UL 873 JUMO heatTHERM-DR
* For further details see: Safety manual JUMO heatTHERM (-AT), (-DR) 602031, 603070.
Contact rating check conducted at 16 A, 230 V, resistive load.
TR, TW, STW STB
