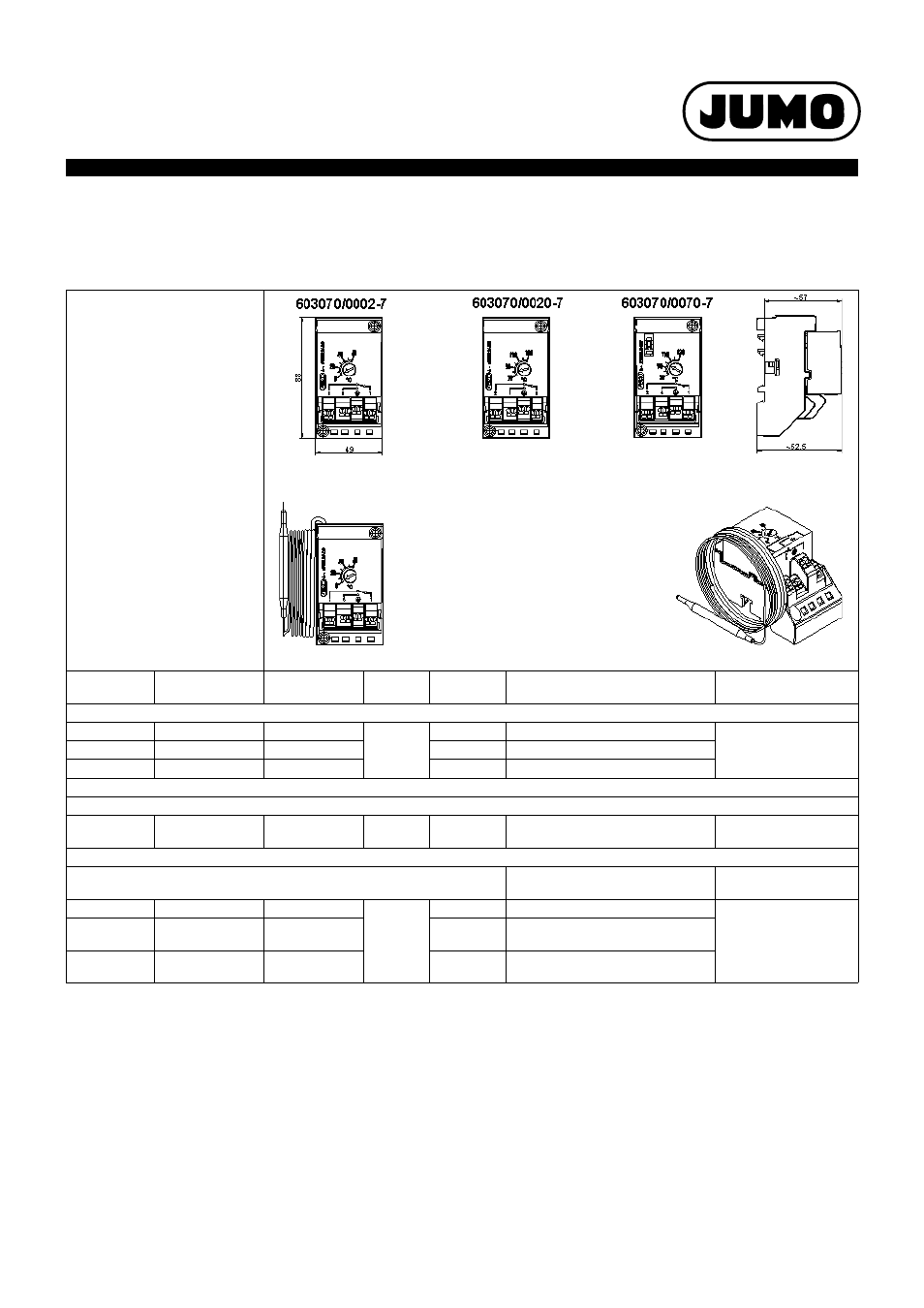

Devices in stock: JUMO heatTHERM-DR
Thermostat for DIN rail installation TH35, according to DIN EN 60715, type 7
Type 603070/....-
a
a Further design versions (control range, switching differential, process connection) upon request - minimum order quantity 100 pieces. Thermowells page 15.
• Protection type IP 20
• DIN rail installation TH35
• Easy to assemble and user friendly
Part no. Type Control range
°C Capillary
mm Probe −∅
(d) × L mm
Switching
differential Process connection
Temperature monitor TW
60003283 603070/0002 0 to +120
2000
6 × 87 Approx. 3K
With capillary and
contact probe
60003284 603070/0002 0 to +200 6 x 78 Approx. 5 K
60003285 603070/0002 +50 to +300 6 x 66 Approx. 6 K
Safety temperature monitor STW
60003286 603070/0020
+70 to +130 2000 6 x 60 Approx. 10 K
With capillary and
contact probe
Safety temperature limiter STB
Unlocking
difference
60003287 603070/0070 +70 to +130
2000
6 x 60 Approx. 10K
With capillary and
contact probe
60003299 603070/0070
+20 to +150 6 × 63
In the upper third approx. 15 K
At the scale beginning approx. 30 K
60003300 603070/0070
+50 to +300 6 × 63
In the upper third approx. 25 K
At the scale beginning approx. 45 K
