Order details
Surface-mounted thermostat JUMO heatTHERM, type 603070
Order code
(6)
Switching differential 1
00
Without switching differential (STB)
25
2.5 %
of the scale range
70
7 %
of the scale range
(7)
Switching differential 2
00
Without switching differential (STB)
25
2.5 %
of the scale range
70
7 %
of the scale range
(8)
Capillary length 1
0
0 mm only for room thermostat
2000
2000 mm
Special length upon request
(9)
Capillary length 2
0
0 mm only for room thermostat
2000
2000 mm
Special length upon request
(10)
Material of capillary 1
00
Without capillary
20
CrNi
Stainless
steel
40
Cu
Copper
(11)
Material of capillary 2
00
Without capillary
Single thermostat
20
CrNi
Stainless
steel
40
Cu
Copper
(12)

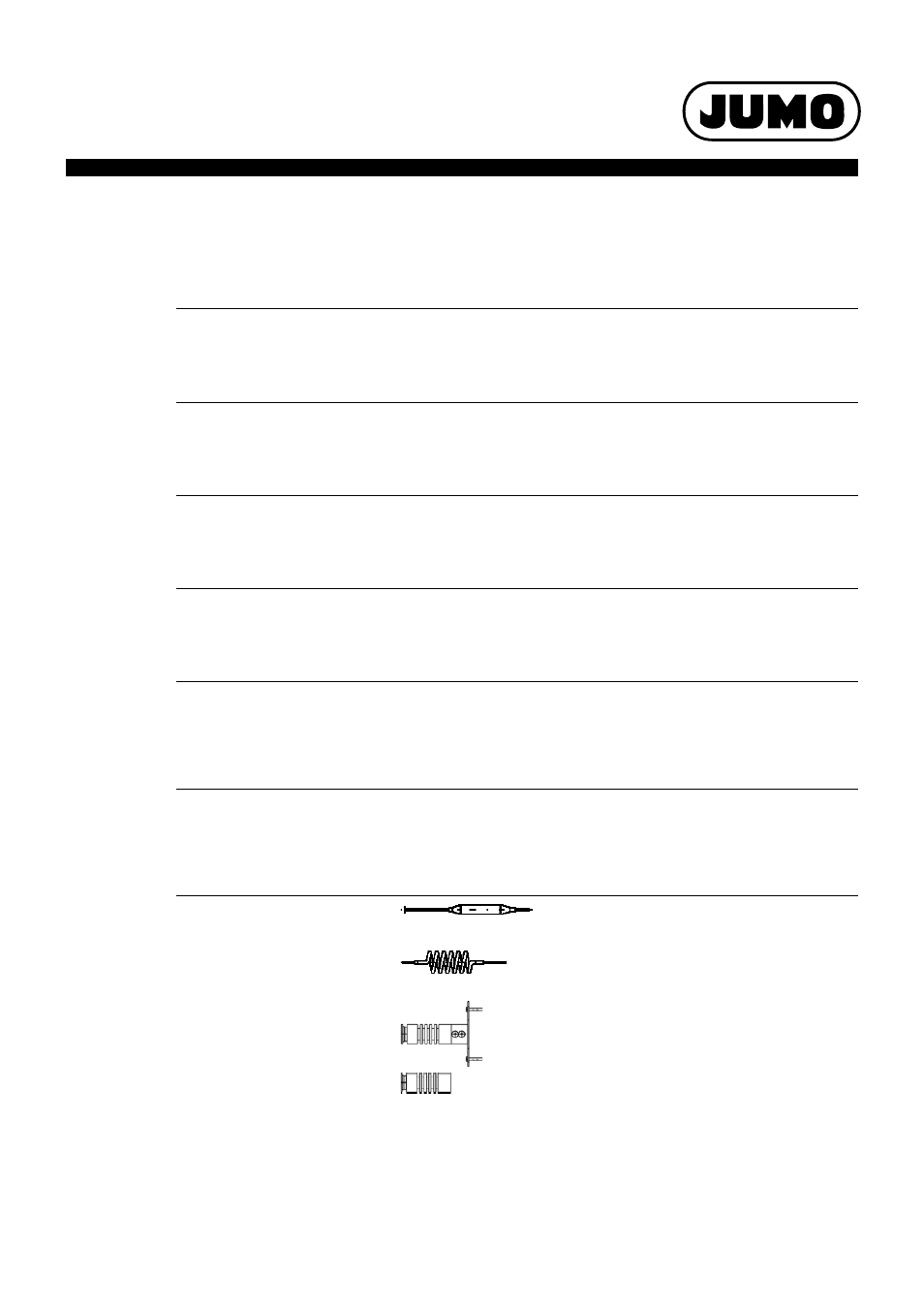

Process connection
10
Plain cylindrical probe / con-
tact probe
15
Spiral probe
80
a
a
Only control ranges +20 to +280 °C (ATW) selectable.
Intermediate piece with
mounting flange
76
b
b
For process connection 76, select sheath according to data sheet 606710, screw-in sheath "20" U with thread G1/2 made of stainless steel (CrNi).
Intermediate piece
